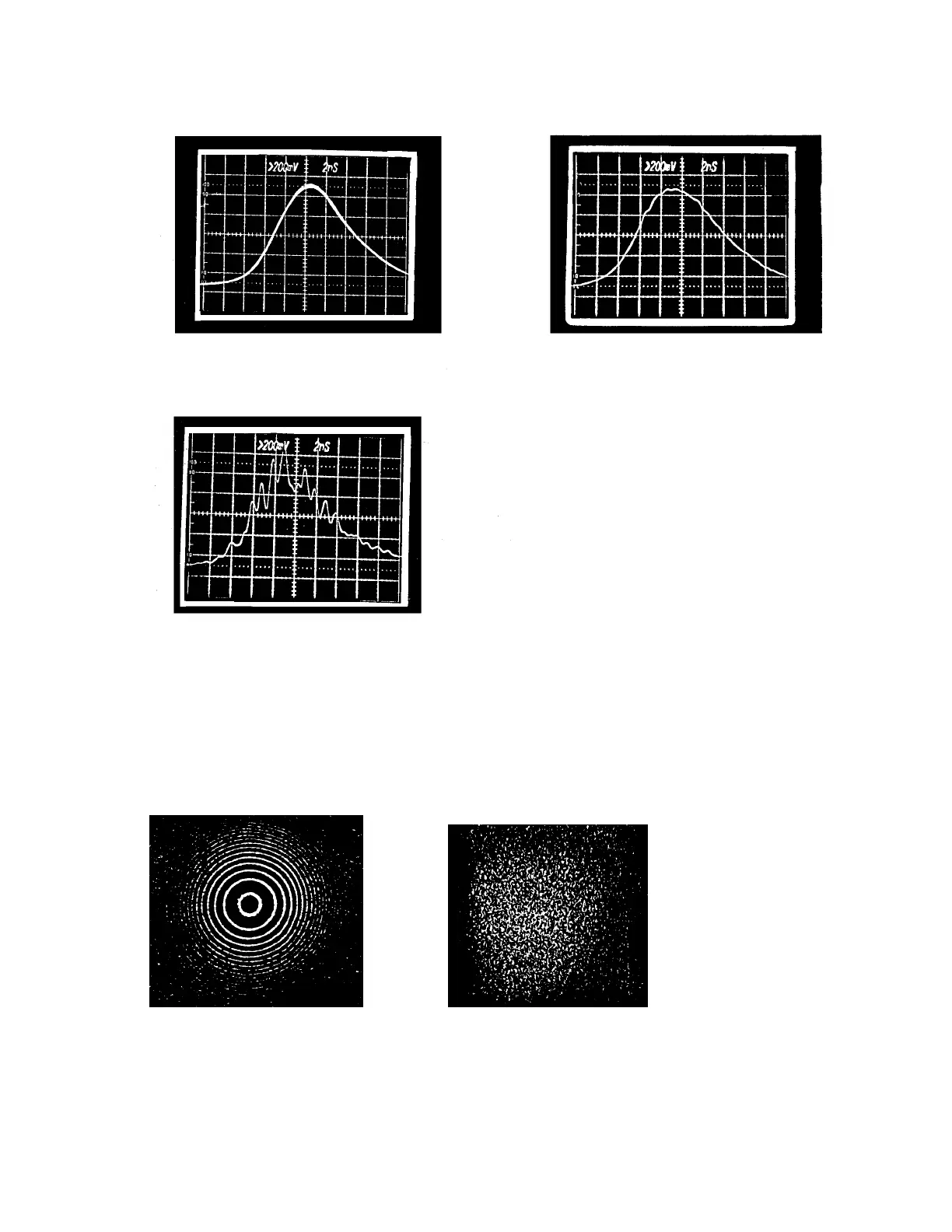

Figure 3-3: Temporal Profile of Seeded and Unseeded Pulses

The top left picture is an oscilloscope trace of 200 pulses emitted from an injection-

seeded host laser. The top right picture is a single injection-seeded pulse. The

bottom left picture is a single, unseeded pulse. These temporal profile photos were

taken using a Tektronix 7104 (1GHz) oscilloscope and a Hamamatsu planar

photodiode.

Figure 3-4: Output through an Etalon

The left picture is the output for a seeded laser, while the picture on

the right is for an unseeded laser.
