An example of the Watch Window is found in Figure 148 below.
To setup the Watch Window, select Tools\Watch Window from the PowerTools Pro menu. If not online with the device, the
Watch Window will be unavailable on the menu. Upon selecting Watch Window, the following window will appear.

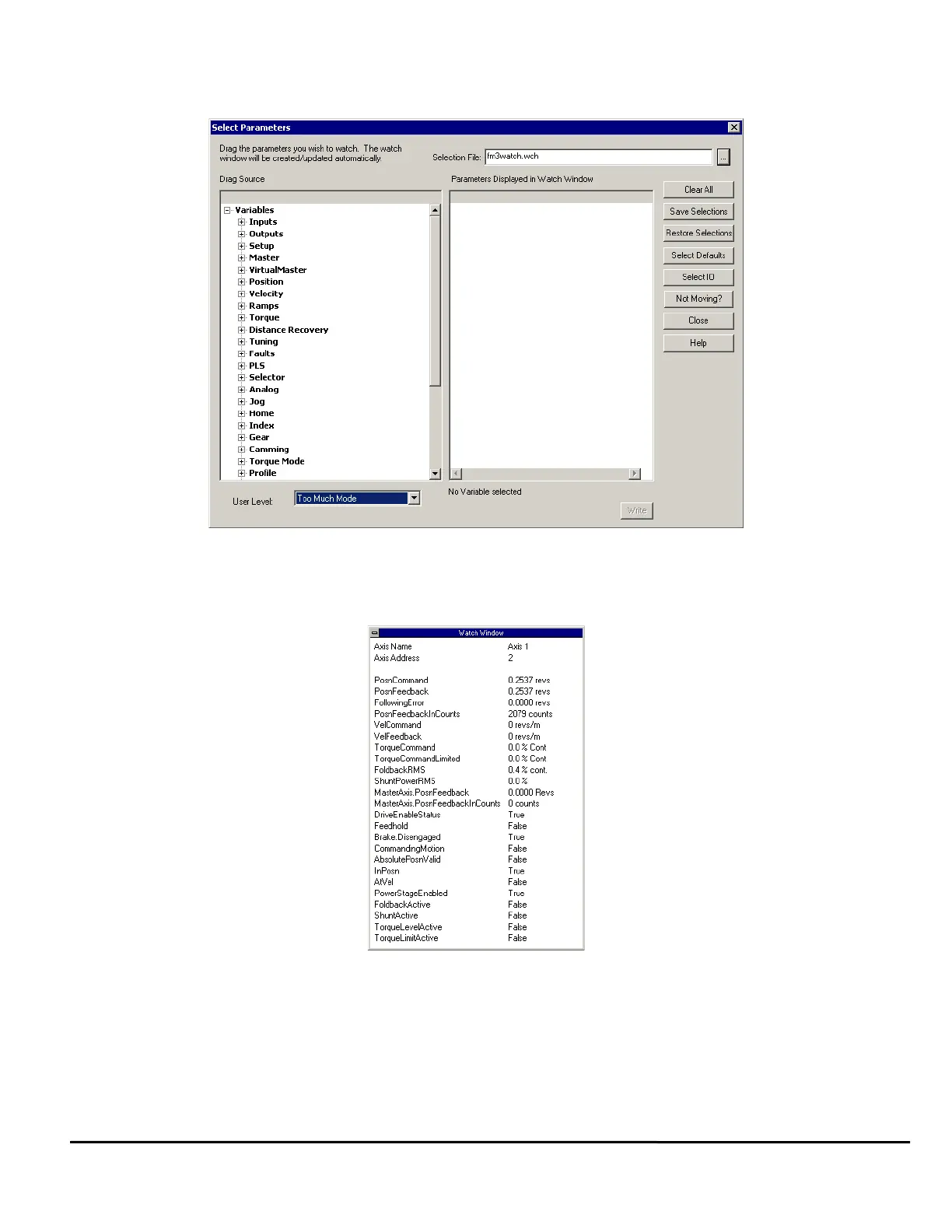

Figure 147: Watch Window, Select Parameters Window
The Select Parameters window as seen in Figure 147 allows the user to specify which parameters are to be seen in the Watch
Window. To select a parameter for the Watch Window, simple double-click on the parameter in the Drag Source window or
drag and drop the parameter from the Drag Source window on the left over to the Parameters Displayed in Watch Window on
the right and it will be added to the Watch Window.
Figure 148: The Watch Window
Once a parameter is added to the Watch Window, it’s current value or state is constantly monitored. If a parameter in the
window changes value or state, it will change to a red color. It will remain red until it hasn’t changed for a period of 4 seconds.
After 4 seconds, the parameter will turn back to black in color. This allows the user to see what has changed recently without
looking directly at every parameter.
The following are descriptions of the buttons and controls on the Select Parameters window:
Clear All
By clicking on the Clear All button, all of the parameters in the Parameter Displayed in Watch Window pane will be erased and
To Next Page
