13. Enter the first load step (typically 0) on the left column of the first row on the display
(use the keys to select the digits to change and the
keys to set the figure), then press the key to access the figure on
the right column on the display and enter the corresponding bit reading previously
recorded;
14. Press again the key to access the second row, left column, enter the load
step, press to access the right column row and enter the corresponding bit
reading previously noted for this step;
15. Once all rows on the first page are completed, pressing the key brings to
the second page with rows from 4 to 6;
16. Proceed in this way until entering all the load steps and bit readings previously
recorded. At the end press the key to complete the calibration procedure,
the system will ask for a confirmation;

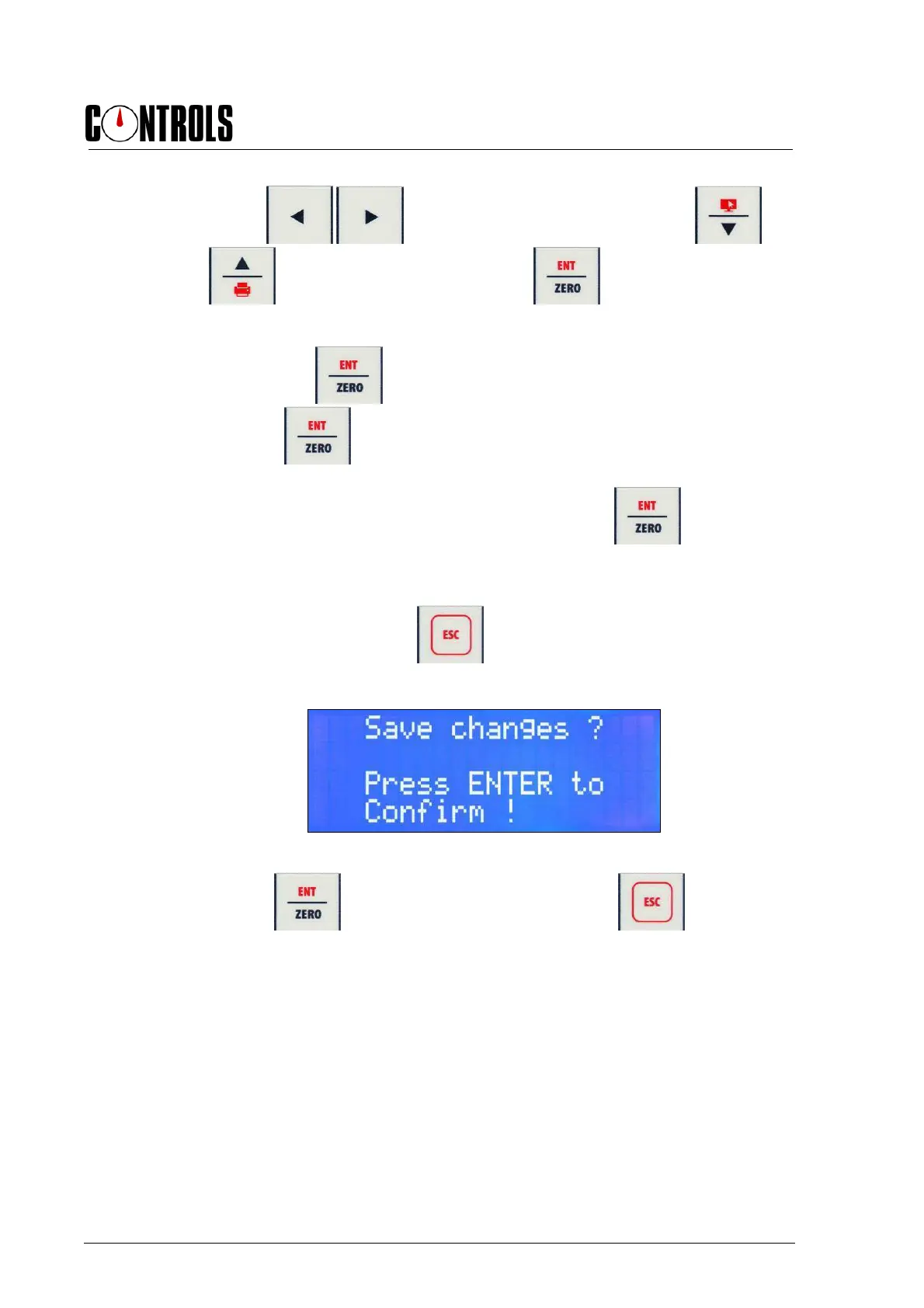

Fig. 5-27
17. Press the key to accept the new calibration or the key to exit
without altering the existing calibration. The system will return to the MAIN
MENU;
18. Repeat the calibration verification (see chapter 5.2.5.1) to make sure the system is
now behaving linearly within the required load range and tolerance.
