All the machines must be fixed to the floor using expandable fixing bolts as shown in
next figures:
WARNING:
Make sure to use proper fixing bolts according to the type of floor of the installation
place. CONTROLS cannot be considered responsible in case of injures to the operator or
damages to the equipment if the above instructions are not duly followed.

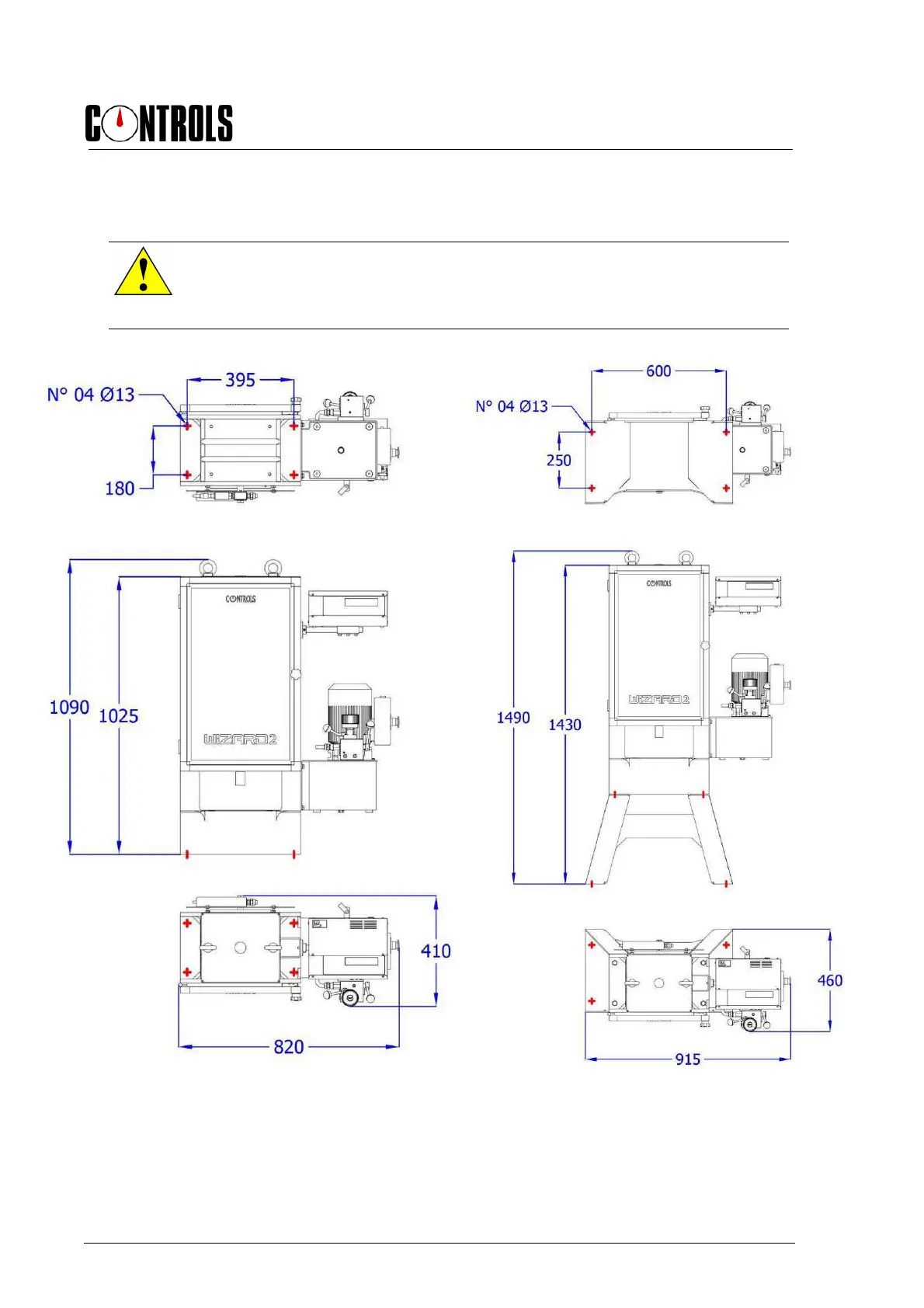

Fig. 2-8 Dimension and fixing of 50-C92A0X
