Manuale di Istruzioni
Instruction Manual
Rev.1 EN 23/08/2018
53
1. With the unit OFF and unplugged from the mains, connect the flexible tube supplied
to the selector block and tighten properly the relevant fixing nuts;
WARNING:
Due to the high pressure inside the hydraulic circuit (up to 650 bars) only tubes approved
by CONTROLS can be used. CONTROLS will not be responsible for damages to the
equipment or personnel injures in case of use of improper material and/or operations not
carried out by authorized technical personnel.

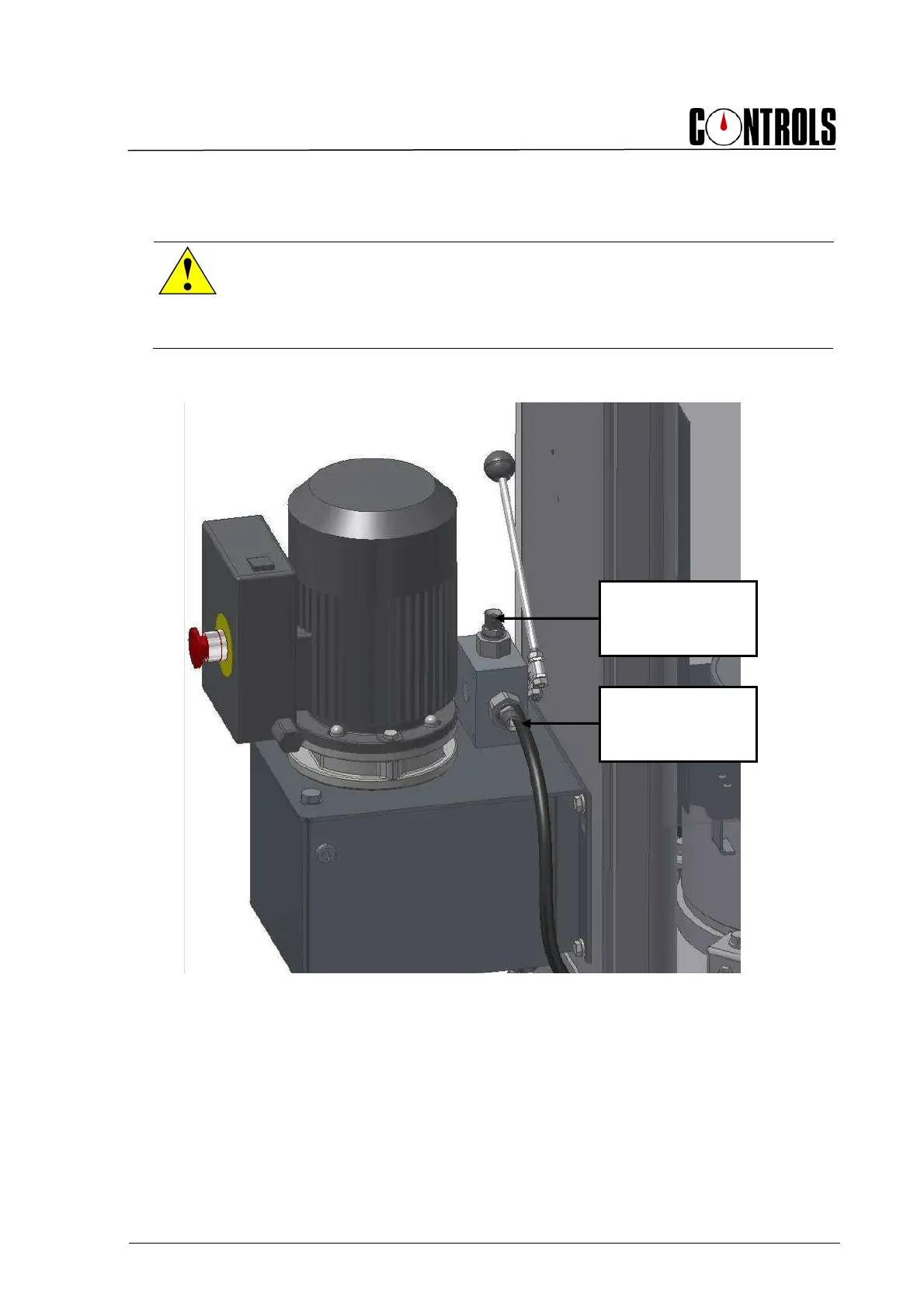

Fig. 3-12
2. After making the hydraulic connections, check the oil level in the tank via the
transparent level indicator (the oil should be max. at half of the indicator); if
necessary refill the oil tank (refer to chapter 5 of this manual);
Connection for 2nd
frame on the dual-
output block
Connection for 1st
frame on the dual-
output block
