3. If the capacity of the second frame is higher than the one of the frame already
connected to the equipment, the max. pressure valve might need to be re-adjusted:
a. Locate the max. pressure adjustment valve;
b. Use a 6mm Allen key to remove the cap;
c. Use a flat screw driver to turn counter-clockwise the valve to reduce the max.
pressure;
d. Adjust the valve by turning the screw clockwise until it intervenes at the full
scale of the frame;
e. Turn the screw still ¼ of turn clockwise;
f. Re-install the cap.

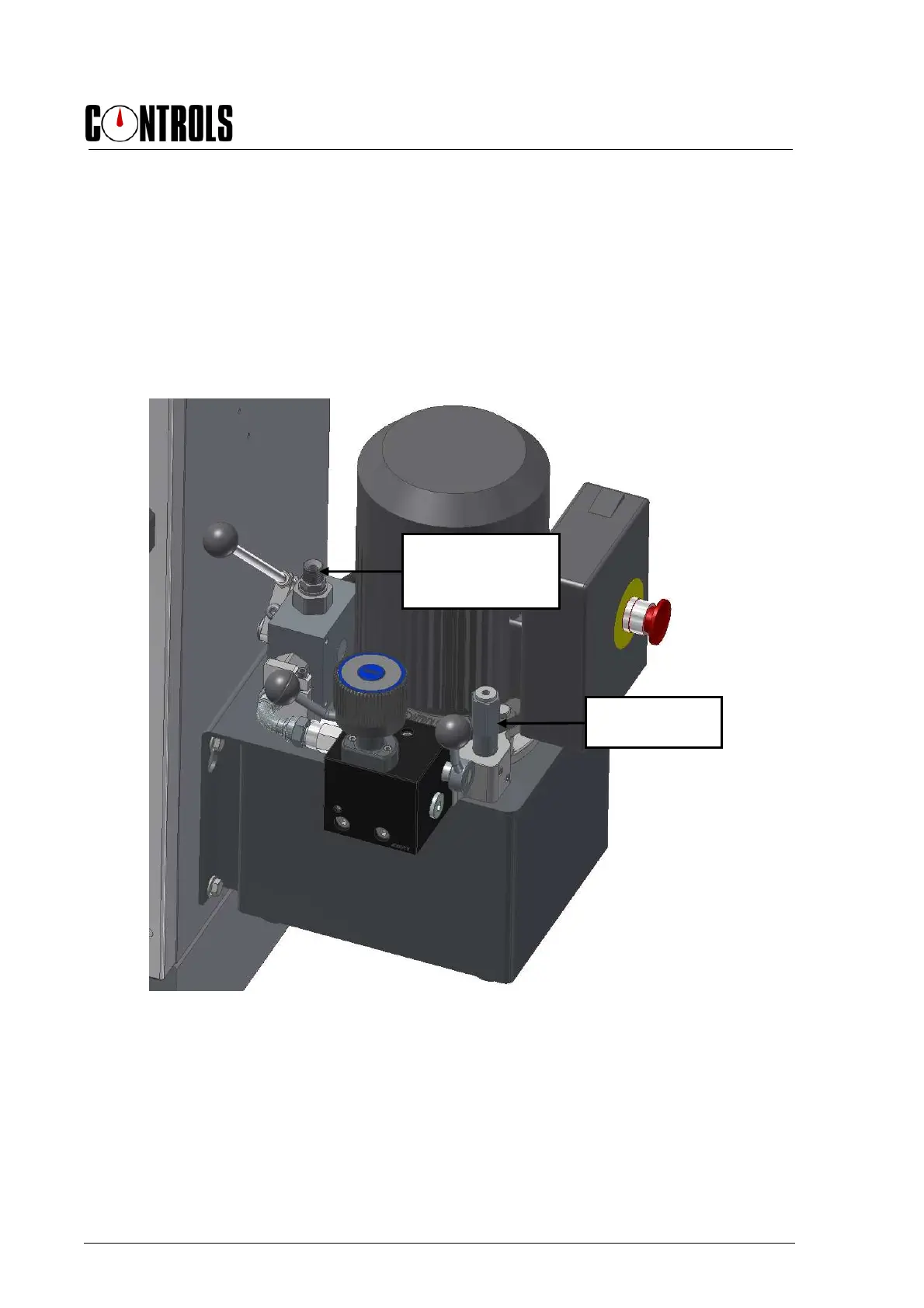

Fig. 3-13
Connection for 2nd
frame on the dual-
output block
Valve to adjust
