Cornelius VENTURE - Figure 3. Flow Diagram

9
318832000
COOLING
COILS (9)
DISPENSER
CARBONATED-
WATER
MANIFOLD
PLAIN
WATER
LINE LEGEND
CO2
PLAIN WATER
SYRUP
1
2
3
4
5
6
SYRUP SUPPLY
(SYRUP TANKS OR
BAG-IN-BOX SYSTEM)
NON--CARBONATED
DRINK
DISPENSING VALVE (6)
BUILT--IN
CARBONATOR
DOUBLE LIQUID
CHECK VALVE
CO2 CHECK
VALVE
REGULATED
CO2 SUPPLY
WATER
PUMP

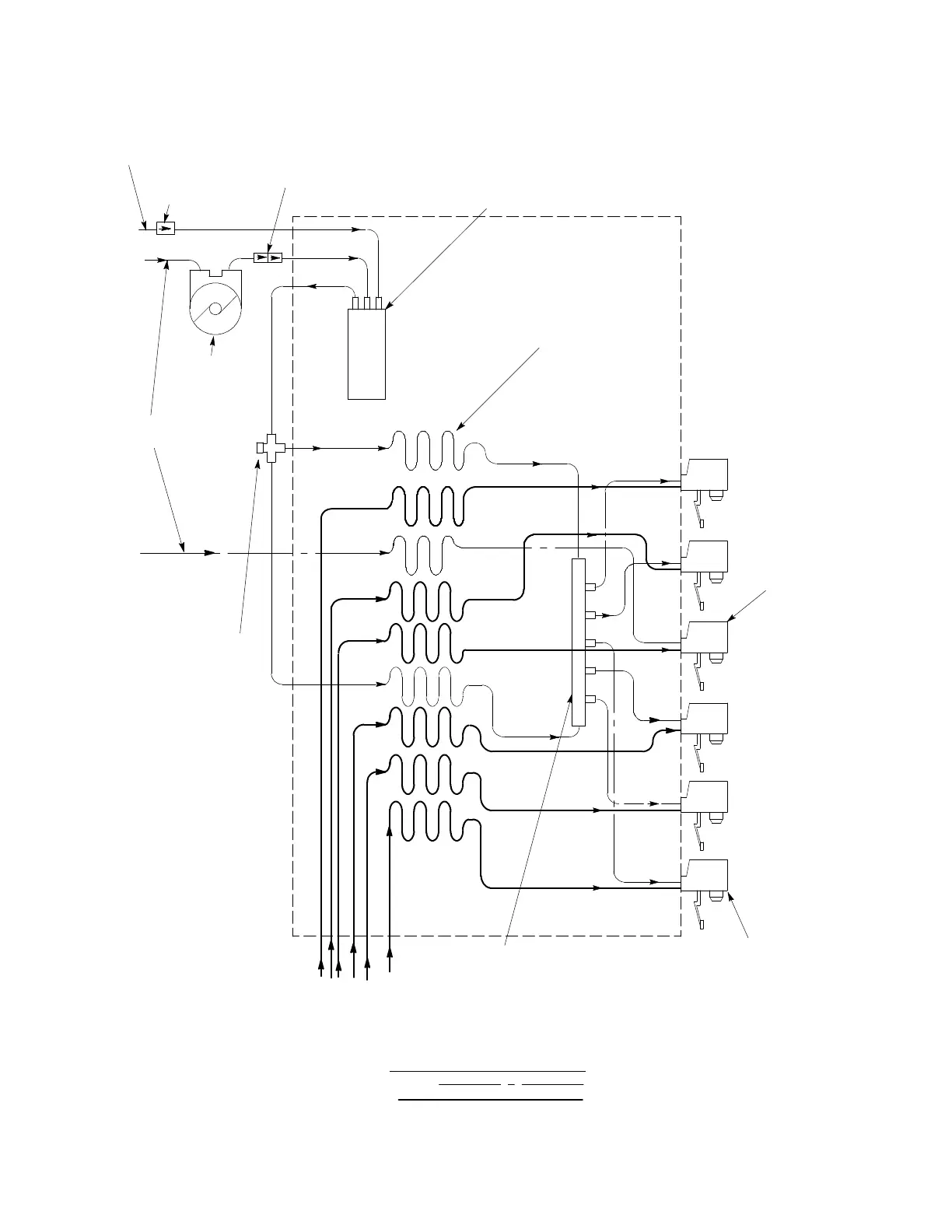

FIGURE 3. FLOW DIAGRAM (SIX-FLAVOR UNIT BUILT-IN COLD CARBONATOR)
CAPPED
CROSS
FITTING
