Cornelius VENTURE - Figure 10. Water Strainer Screen and Double Liquid Check; Figure 11. Liquid Check Valve Assembly

3
1
8
8
3
2
0
0
0
3
4
WATER LINE TO TANK
DOUBLE LIQUID
CHECK VALVE
WHITE TAPERED GASKET
SAFETY THERMOSTAT
(P/N 318040000)
ELBOW
PUMP TO MOTOR COUPLING
WATER PUMP
WATER
STRAINER SCREEN
(P/N 315348000)
O-RING (P/N 315349000)
SCREEN RETAINER

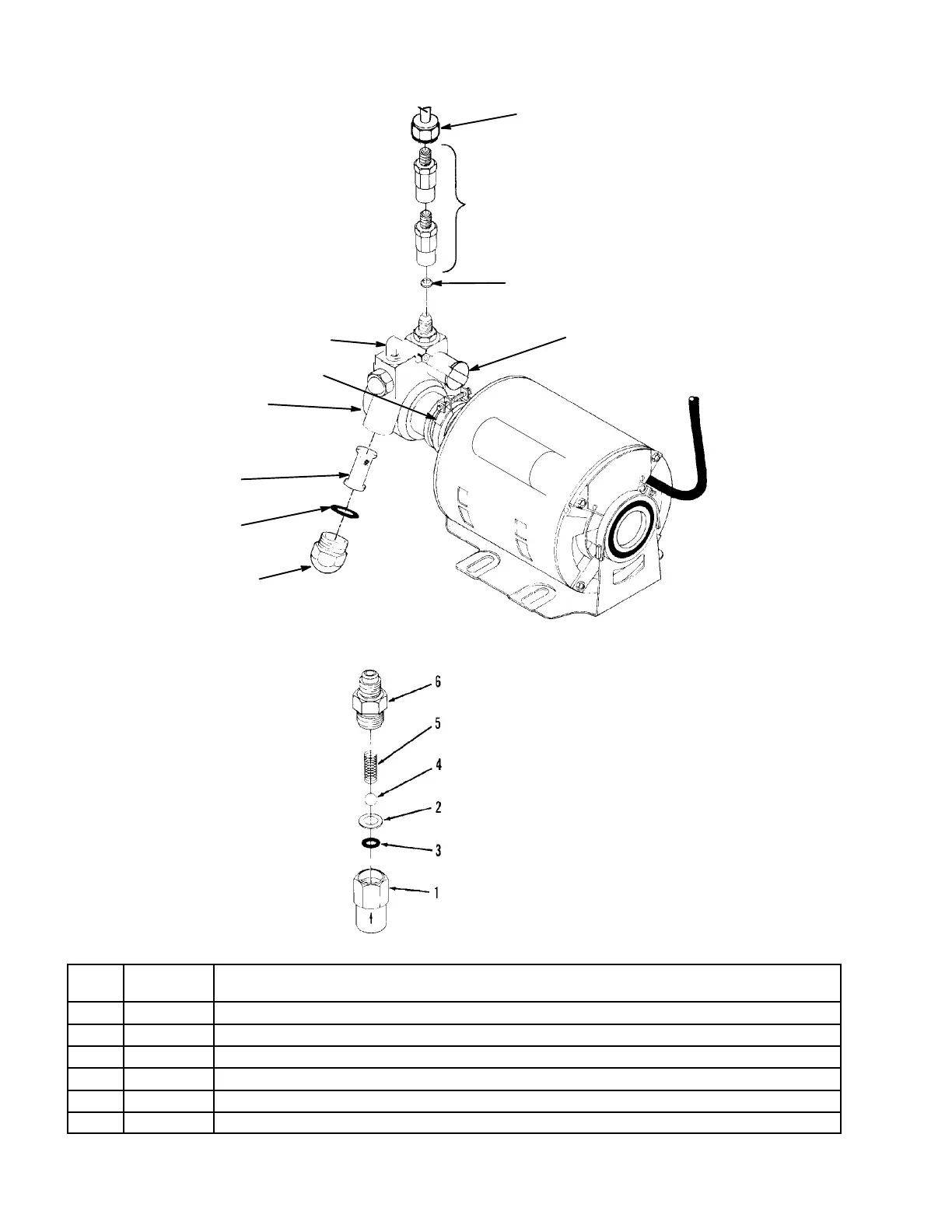

FIGURE 10. WATER STRAINER SCREEN AND DOUBLE LIQUID CHECK VALVE
*INSTALL NEW BALL SEAT AT EACH SERVICING
INDEX
NO.
PART
NO.
DUAL CHECK VALVE P/N 311765000 SINGLE CHECK VALVE P/N 311764000
1 317963000 Housing
2 312415000 Flat Washer, Stainless Steel
3 *312418000 Ball Seat (quad ring)
4 312419000 Ball
5 312196000 Spring
6 317965000 Retainer
FIGURE 11. LIQUID CHECK VALVE ASSEMBLY
