Cornelius VENTURE - Figure 5. Inlet Supply Line Connections (Standard Unit)

18
318832000
1
24
5
6
DISPENSING VALVE
BLOCK
DISPENSING VALVE
RELEASE LATCH
LABELED UNIT
INLET LINES
*CAPPED TEE
(CARBONATED WATER)
* This CAPPED TEE is used when converting No. 3 dispensing valve from
a still ( noncarbonated ) to a carbonated drink. Refer to TABLE OF CON-
TENTS for conversion instructions.
3

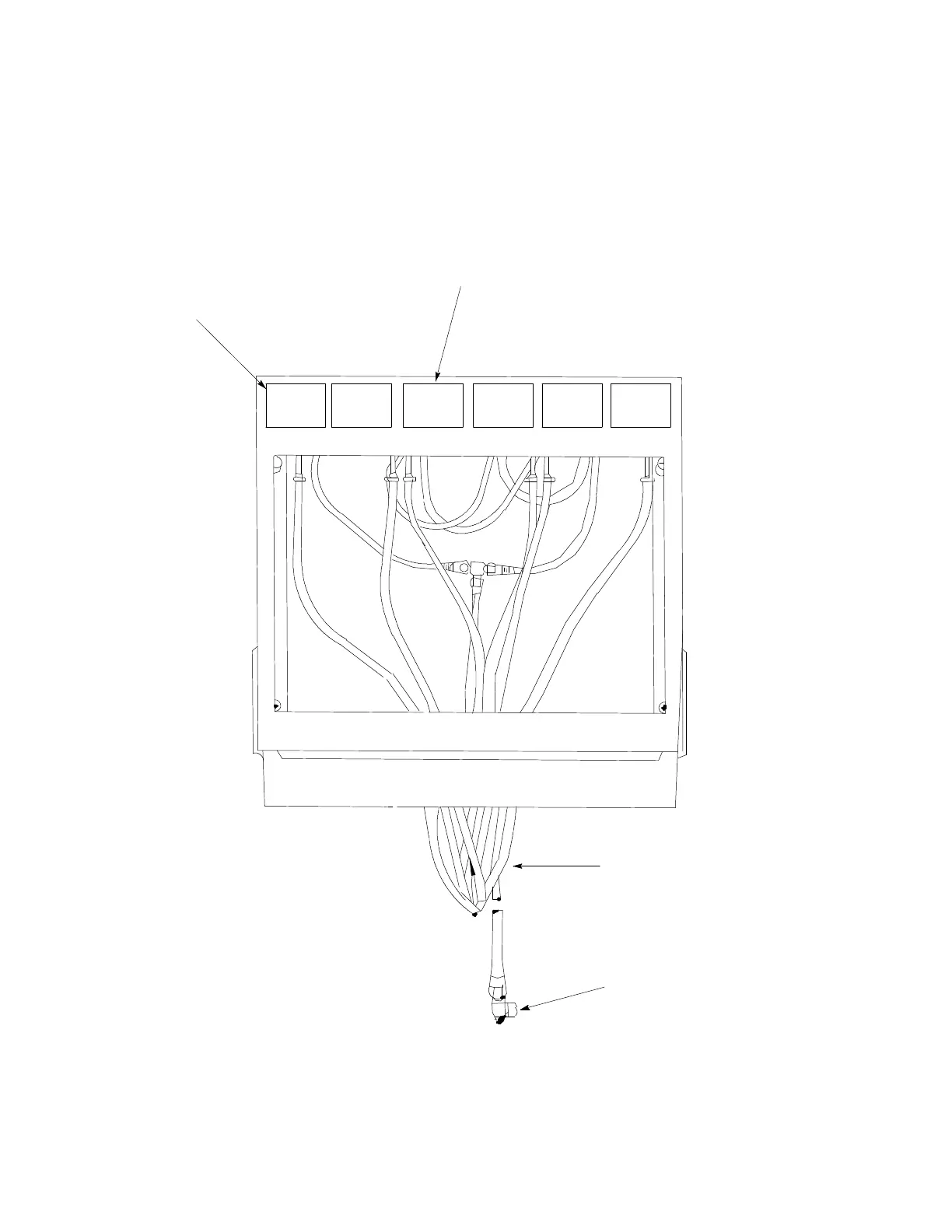

FIGURE 5. INLET SUPPLY LINE CONNECTIONS (STANDARD UNIT)
