Crestron Prodigy System User Manual

Prodigy
®
System Crestron XPanel

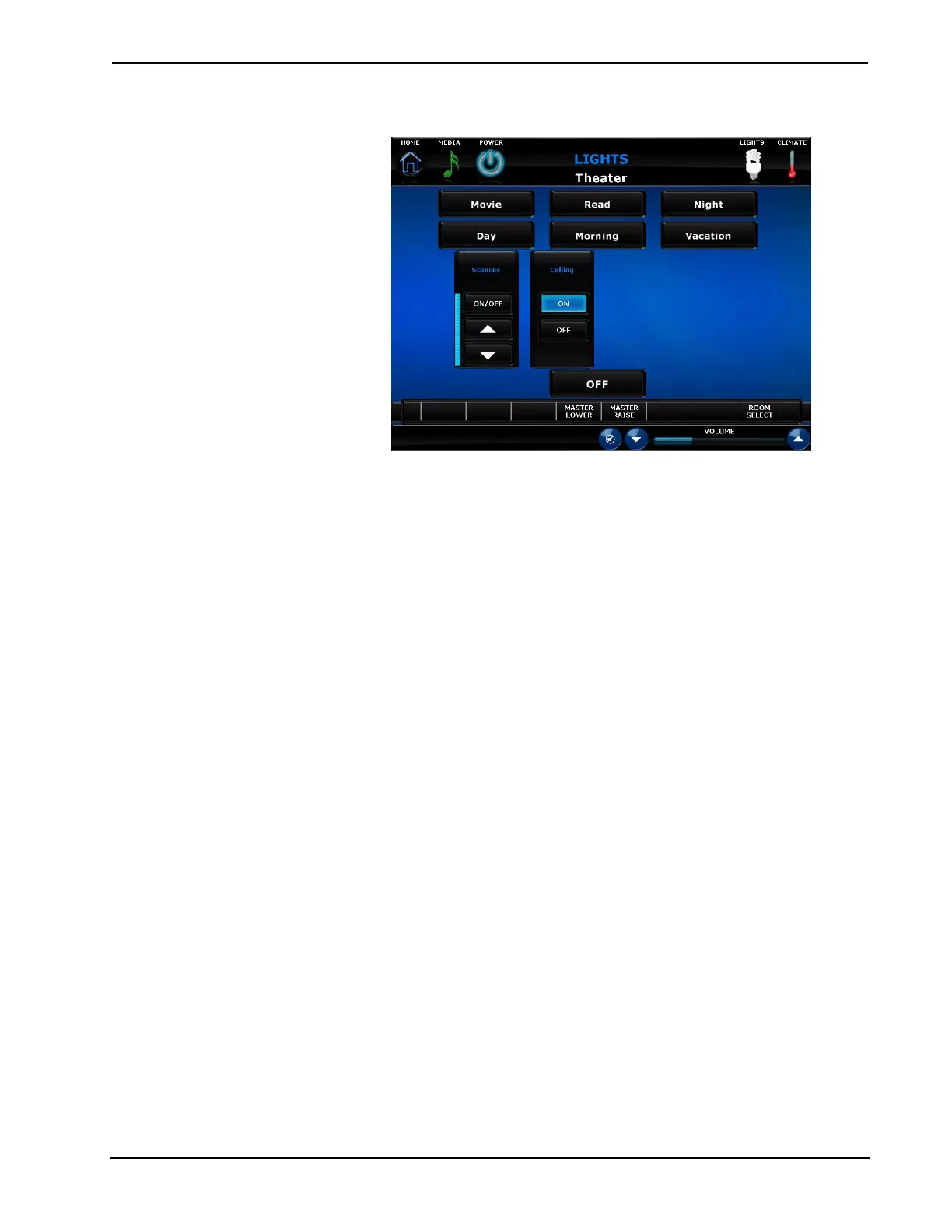

Lighting Controls (Left: Dimmer, Right: Switch)
• Switch Operation
⇒ To turn the lights on, click ON.
⇒ To turn the lights off, click OFF.
• Dimmer Operation
⇒ To turn the lights on or off, click ON/OFF.
⇒ To raise the lighting level, click and hold k or click RAISE.
Release when the desired level is reached.
⇒ To lower the lighting level, click and hold j or click LOWER.
Release when the desired level is reached.
Climate Control
When equipped, the XPanel program can be used to control the climate in
any zone that uses a P-TSTATRF for temperature control.
Select Zone to Control
The XPanel program can be used to control temperature in any zone that
uses a P-TSTATRF for temperature control.
112 • Prodigy System: PMC2 System User Guide – DOC. 7007B
