System Crestron PTL4
Control a Switch or Dimmer
The PTL4 can be used to turn the lights on or off as well as raise or lower the
lighting level (P-DIMEX only).
1. Select the room to be controlled as described in steps 1-3, which
starts on page 54.
2. Touch ADVANCED to display the lighting controls.

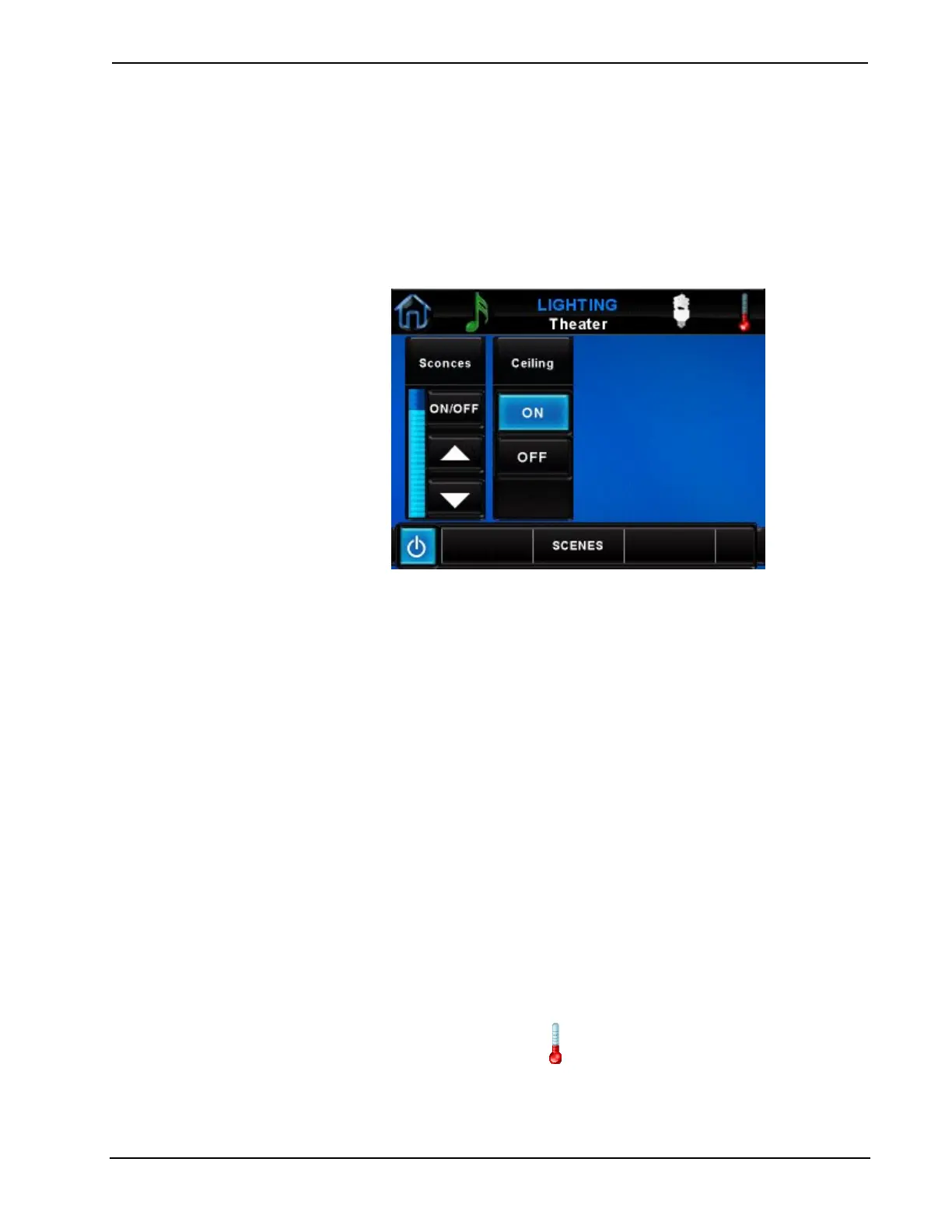

Lighting Controls (Left: Dimmer, Right: Switch)
• Switch Operation
⇒ To turn the lights on, touch ON.
⇒ To turn the lights off, touch OFF.
• Dimmer Operation
⇒ To turn the lights on or off, touch ON/OFF. You can also press
LIGHTS ON or LIGHTS OFF.
⇒ To raise the lighting level, touch and hold k or press RAISE.
Release when the desired level is reached.
⇒ To lower the lighting level, touch and hold j or press LOWER.
Release when the desired level is reached.
Climate Control
When equipped, the PTL4 can be used to control the climate in any zone that
uses a P-TSTATRF for temperature control.
Select Zone to Control
The PTL4 can be used to control temperature in any zone that uses a
P-TSTATRF for temperature control. To select a zone to be controlled:
1. From any page, touch
or press CLIMATE to display a list of
zones.
