Crestron PAMP-4X100 Prodigy
®
System

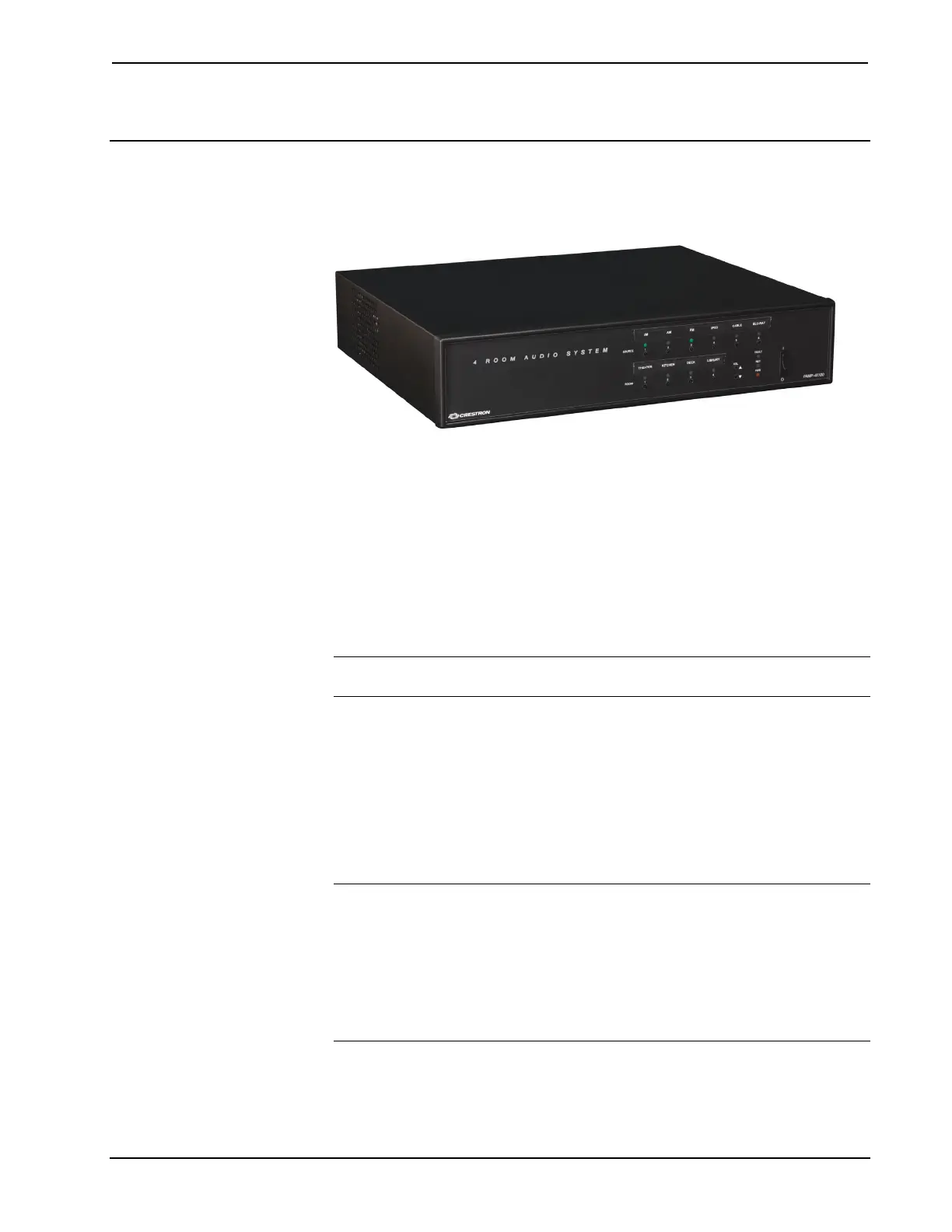

PAMP-4X100 Processor Amplifier
The Processor Amplifier (PAMP-4X100) is used to distribute, select, and
control audio throughout a home. Up to three PAMP-4X100s can be used in
a Prodigy system.
Turn the Amplifier On or Off
To turn the amplifier on, move the front panel switch to the ON position.
To turn the amplifier off, move the front panel switch to the OFF position.
Select a Source
To select a source for distribution, press the desired SOURCE button. If a
room is connected to the selected source, its LED will light.
NOTE: If a room is in the Volume Control mode, pressing a SOURCE button
will exit the room’s Volume Control mode.
Select a Room
Once a source is selected, press any ROOM button that is to receive the
selected source. The room will be connected to the selected source and its
LED will light.
To remove a room from the selected source, press the ROOM button of a
connected room. The LED will turn off.
NOTE: If a room is in the Volume Control mode, pressing a ROOM button
will exit the Volume Control mode.
NOTE: If the outputs of the PAMP4X100 are bridged, the ROOM 1 button
will act in unison with the ROOM 2 button and the ROOM 3 button will act in
unison with the ROOM 4 button. Similarly, the ROOM 1 LED will act in
unison with the ROOM 2 LED and the ROOM 3 LED will act in unison with
the ROOM 4 LED.
