Crestron XPanel Prodigy
®
System
• HEAT: In Heat mode, the thermostat uses the heating system to
maintain the setpoint temperature. On the P-TSTATRF, a “flame”
icon will be displayed.
• AUXILIARY (AUX) HEAT MODE: In Auxiliary Heat mode, the
thermostat uses only the auxiliary heat output on heat pump or dual-
fuel systems (if equipped) to maintain the setpoint temperature. This
setting can be useful when the heat pump is being serviced or when
there is an unexpected problem with it. On the P-TSTATRF, the
display will flash the “flame” icon when the system is in Auxiliary
Heat mode.
• COOL: In Cool mode, the thermostat uses the cooling system to
maintain the setpoint temperature. On the P-TSTATRF, the
“snowflake” icon will be displayed.
• AUTO: In Auto mode, the thermostat allows the system to switch
between Heat and Cool automatically as needed to maintain the
setpoint temperature. On the P-TSTATRF, the display will show the
“flame” and “snowflake” icons.

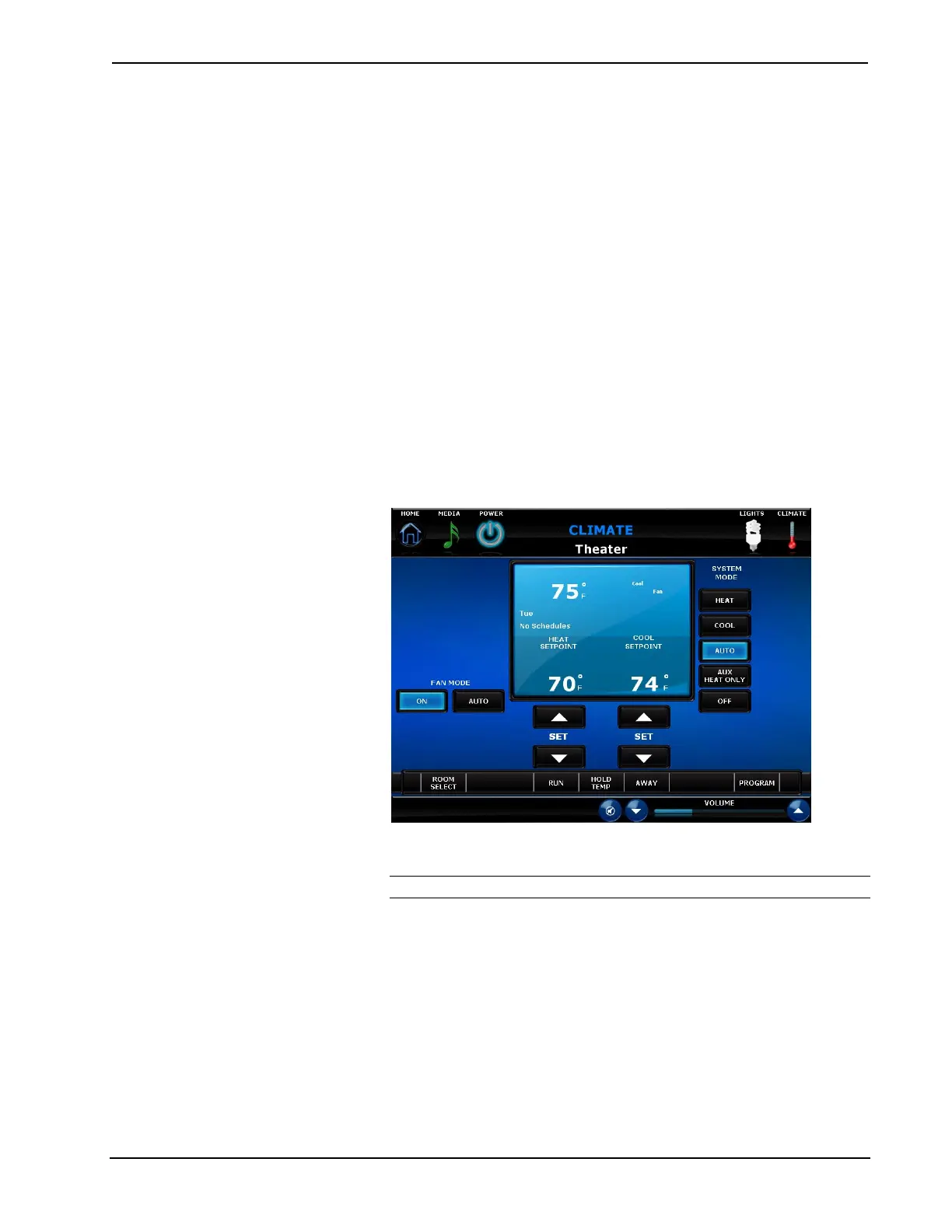

To set a controlled zone’s system mode with an XPanel program:
1. Select the zone to be controlled as described on page 112.
2. Click the desired system mode.
NOTE: Not all modes are available for all HVAC systems.
System User Guide – DOC. 7007B Prodigy System: PMC2 • 115
