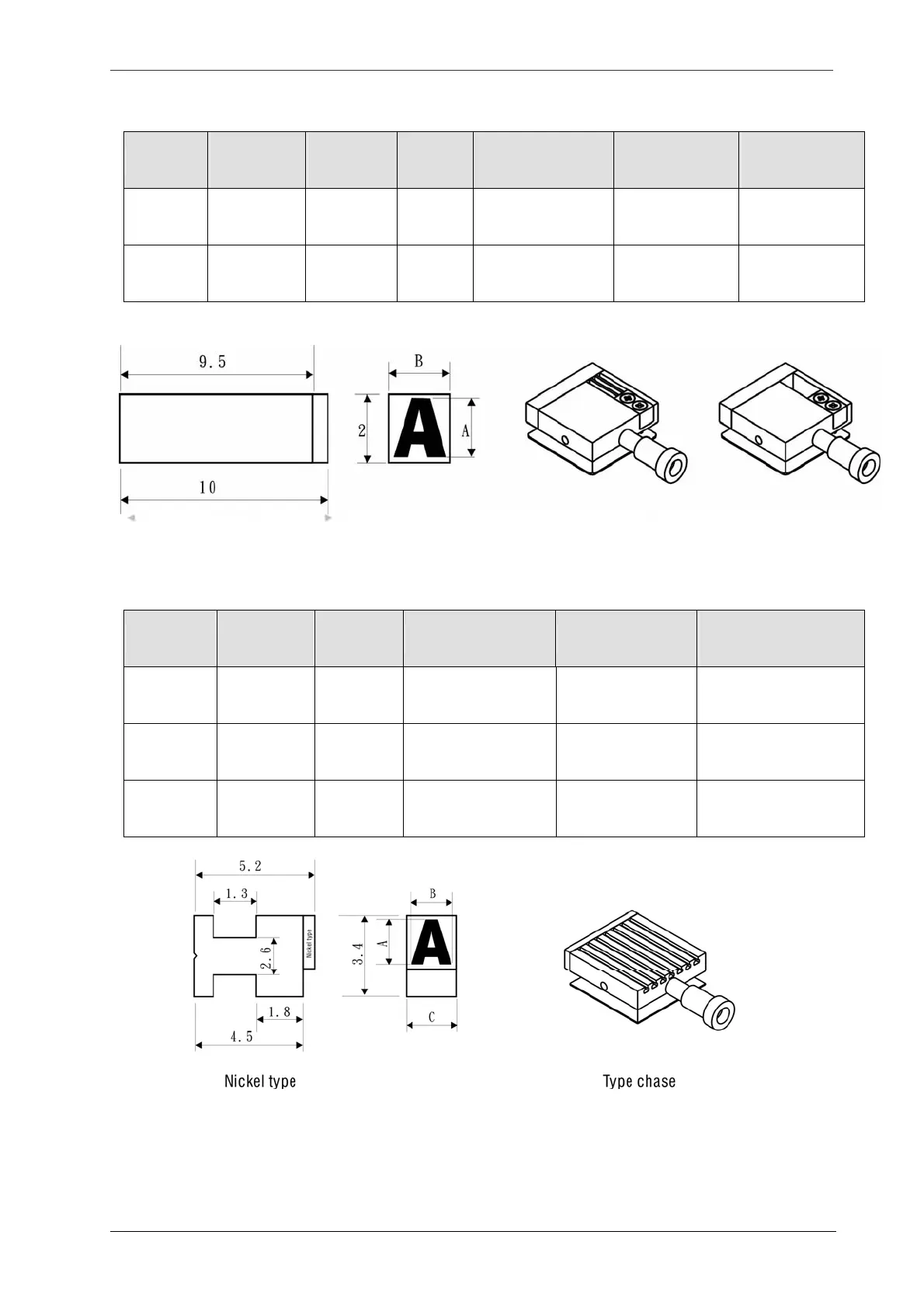

2.3.2 Type and Related Specifications
Brass Type
Type Height
(A)
Type Width
(B)
Line
Number
Line Spacing
Narrow Type Chase
Line Spacing
Wide Type Chase
Character Number
(Max. Length)
B1.3 1.5 mm 1.3 mm 1~3 2 mm 3 mm
12
(15.6 mm)
B1.5 1.8 mm 1.5 mm 1~3 2 mm 3 mm
10
(15 mm)
2 - 7
Wide Line-Spacing
type chase
Narrow Line-spacing
type chase
Typ e
Fig 2.3-2
Nickel Type
Type Height
(A)
Type Width
(B)
Line Number Line Spacing
Character Number
(Max. Length)
Z1.5 1.5 mm 1.8 mm 1~6 4.7 mm
18
(32.4 mm)
Z2.0 2.0 mm 1.8 mm 1~6 4.7 mm
18
(32.4 mm)
Z2.5 2.5 mm 2.2 mm 1~6 4.7 mm
15
(33 mm)
.
* 2.0 mm types are recommended for optimum results.
Fig 2.3-3
