11.2 Product Alignment Mechanism Adjustments

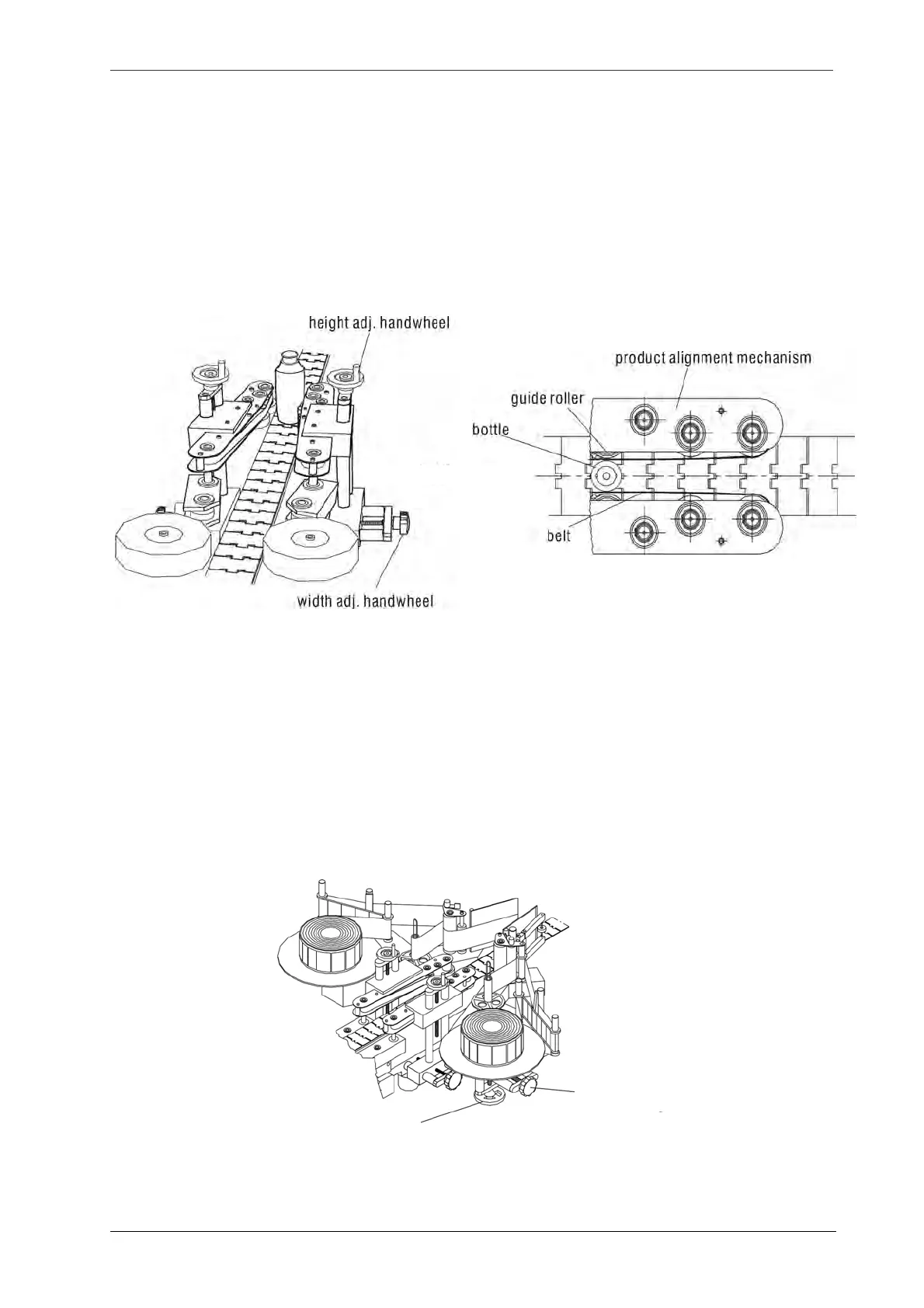

After products pass the separator wheels, the alignment belt may line up the products in alignment for
correct labeling (Fig 11.2-1). The alignment mechanism adjustment procedures are illustrated as
follows.
a. Place one product on the conveyor between the alignment belts at the narrowest position where
the two guide rollers are located,
b. Let the belts slightly touch the product (Fig 11.2-2).
Fig 11.2-2
Fig 11.2-1
11.3 Label Head Position Adjustments – Vertical and Lateral
Adjust vertical and lateral position of the label head with the height adj. handwheel and lateral adj.
knob.
a. Raise or lower the label head by means of rotating the height adj. handwheel.
b. Move the label head forward and backward by means of rotating the lateral adj. knob.
Lateral adj. knob for label
head
Height adj. handwheel
for label head
Fig 11.3-1
