CVC 400 - Locations of Printed Circuit Board (A)

CVC TECHNOLOGIES, INC. CVC 400 OPERATION MANUAL
7 - 2

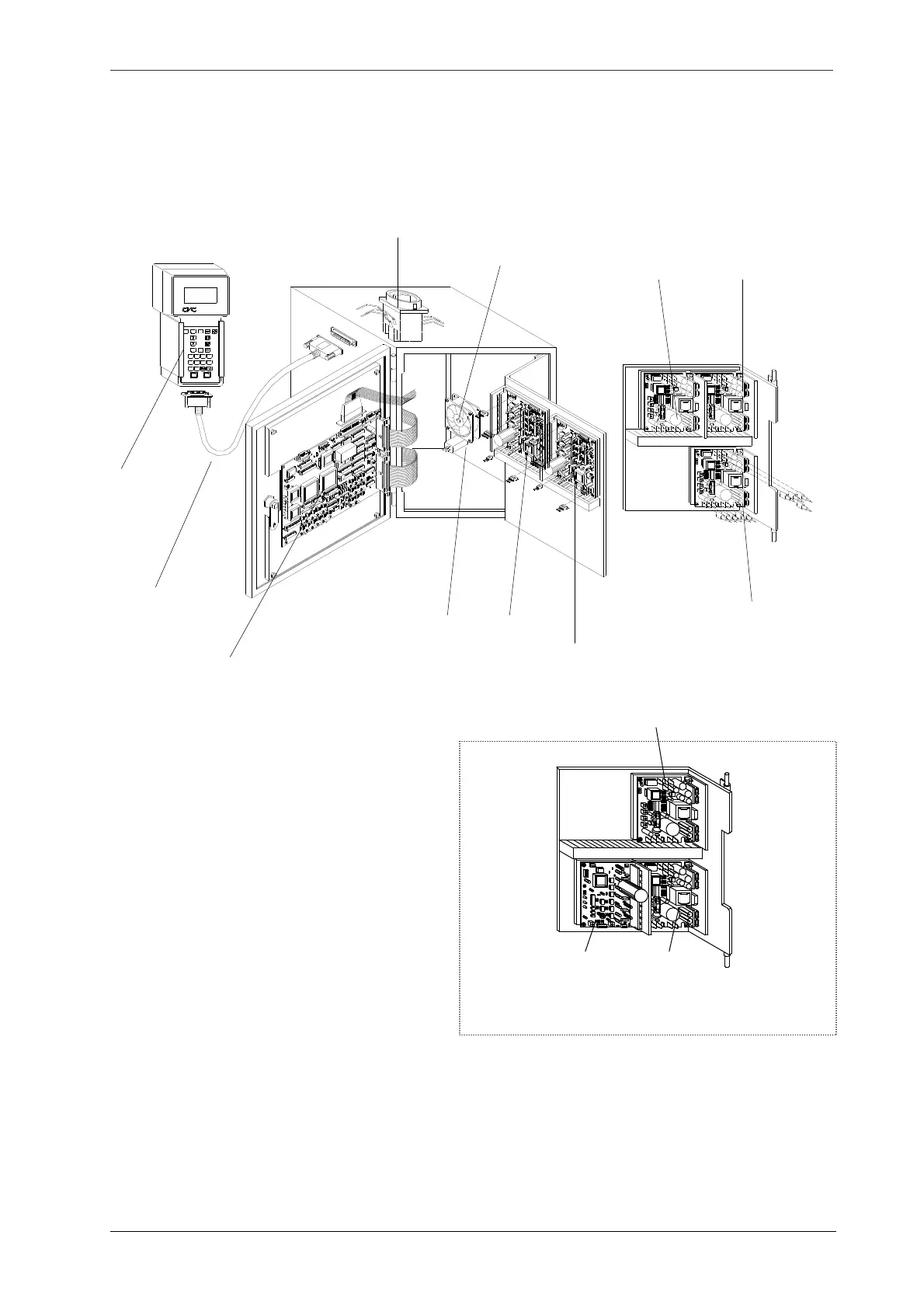

7.1 Locations of Printed Circuit Board (A)
* Push & Press function is available only the system is equipped by CVC.
C1 HHT Control Panel
C2 Cable for HHT
C3 Power Switch
C4 Master Board
C5 Cooling Fan
C6 EMI Filter
C7 Stepper Motor Driver for Head A
C7-1 Stepper Motor Driver for Head B
C8-R DC Motor Driver for Label Wrap Belt
C10 DC Motor Driver for Conveyor
C11 DC Motor Driver for Product Separator
Wheel
C12-PP DC Motor Driver for Push &
Press Attachment (optional)
C2
C4
C6 C7
C11
C7-1 C8 C10
F2 F3F1
8675
9
0
I
0
12 34
C7-1
When optional Push & Press Attachment is
installed, C12-PP is used instead of C8-R.
C12-PP
C10
C
11
C8-R
C11
C10
C7
C1
C2
C4
C6
C5
C3
