CVC TECHNOLOGIES, INC. CVC 400 OPERATION MANUAL
4.5 Positioning and Adjustment of Machine Level and Height
a. Align the conveyor center line with the predetermined center line drawn on the floor. Ensure that
machine outer boundaries fit in the previously drawn contour line.

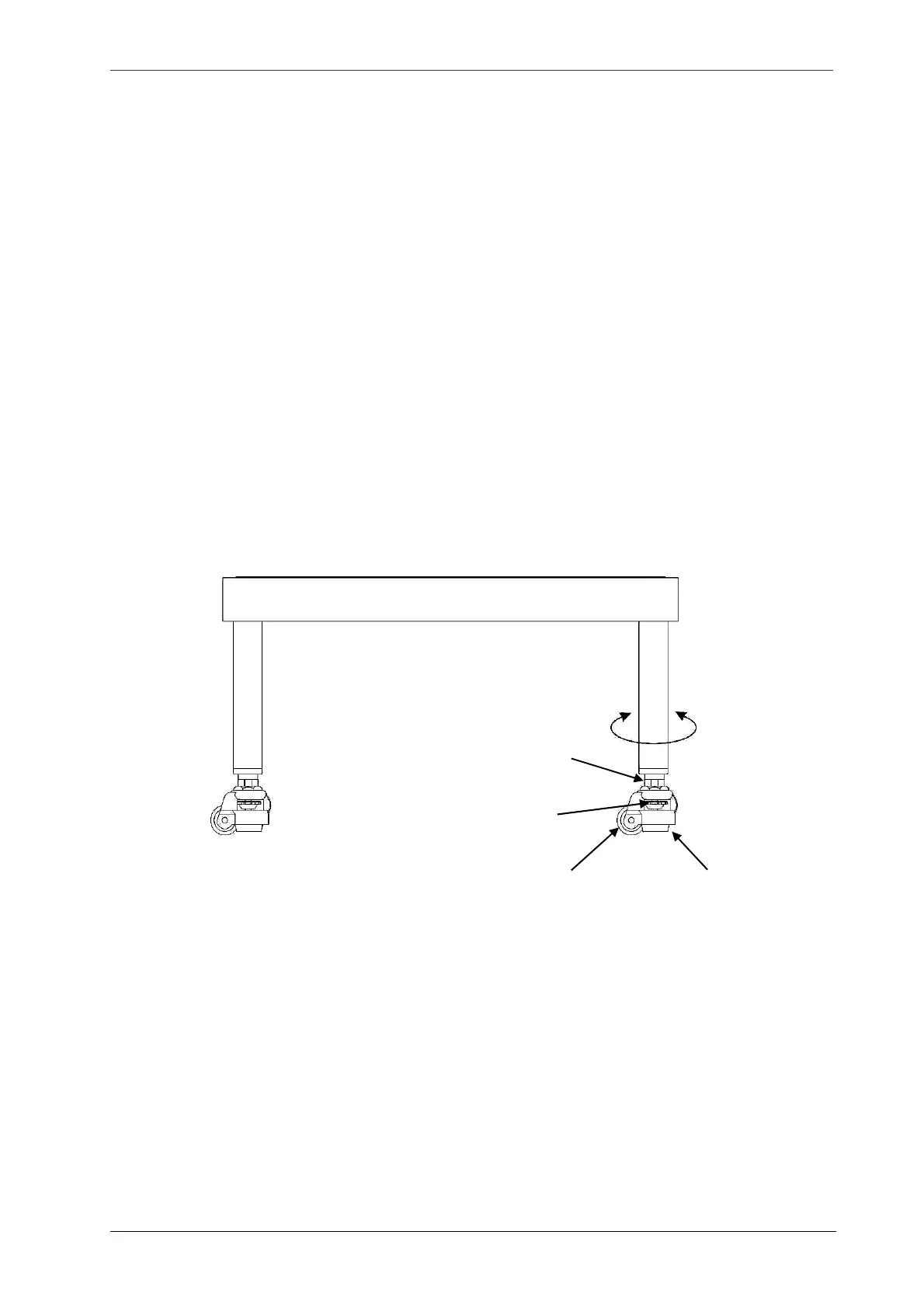

b. Make fine adjustment directly from the height adjustment nut of the supporting pads. The machine
should rest evenly on its supporting pads without vibration or swiveling. The caster wheels are only
used for moving the machine, and should keep a certain distance from touching the floor once
machine is installed. Use a level over the machine flat surface to verify that the horizontal position is
correct.
c. Make sure that the conveyor surface level meets the previously marked lines on the wall or by
considering the conveyor height of the rest of equipment, also check for horizontality.
d. Alignment and level accuracy should keep within +/- 1mm.
e. After machine is correctly positioned and leveled, proceed to attach the necessary parts and to
connect piping according to the corresponding diagrams.
Counterclockwise
Clockwise
Nut
Height
adj. swivel
nut
Caster wheel
Base support pad
Fig
4.5-1
4 - 4
