CVC 400 - 2 Specifications; Machine Specifications

CVC TECHNOLOGIES, INC. CVC 400 OPERATION MANUAL
2. SPECIFICATIONS
2.1 Machine Specifications
* Some features or different product formats will require additional attachments and changeover parts, please consult CVC
for the purchase.
Horse Power
- Stepper Motor: 103H8222-5242 (Sanyo)
- Conveyor Motor:
(1) Standard (3½”): 130 Vdc, 1/4HP (Bodine)
(2) Special Type (6”): DC 130 Vdc, 1/3 HP (Bodine)
- Label Roller Motor: 130 Vdc, 40W (T.W.T)
- Product Separator Motor: DC 90V; 20W (T.W.T)
Power Consumption 880 W
Humidity Between 10% ~ 90%
Required compressed air quality As per ISO 8573-1 requirements
Environment condition Moisture, water, dust and direct sunlight should be avoided.
Labeling speed Max speed: 23 M/min. (75 ft/min)
Lighting requirement 500 lux is recommended

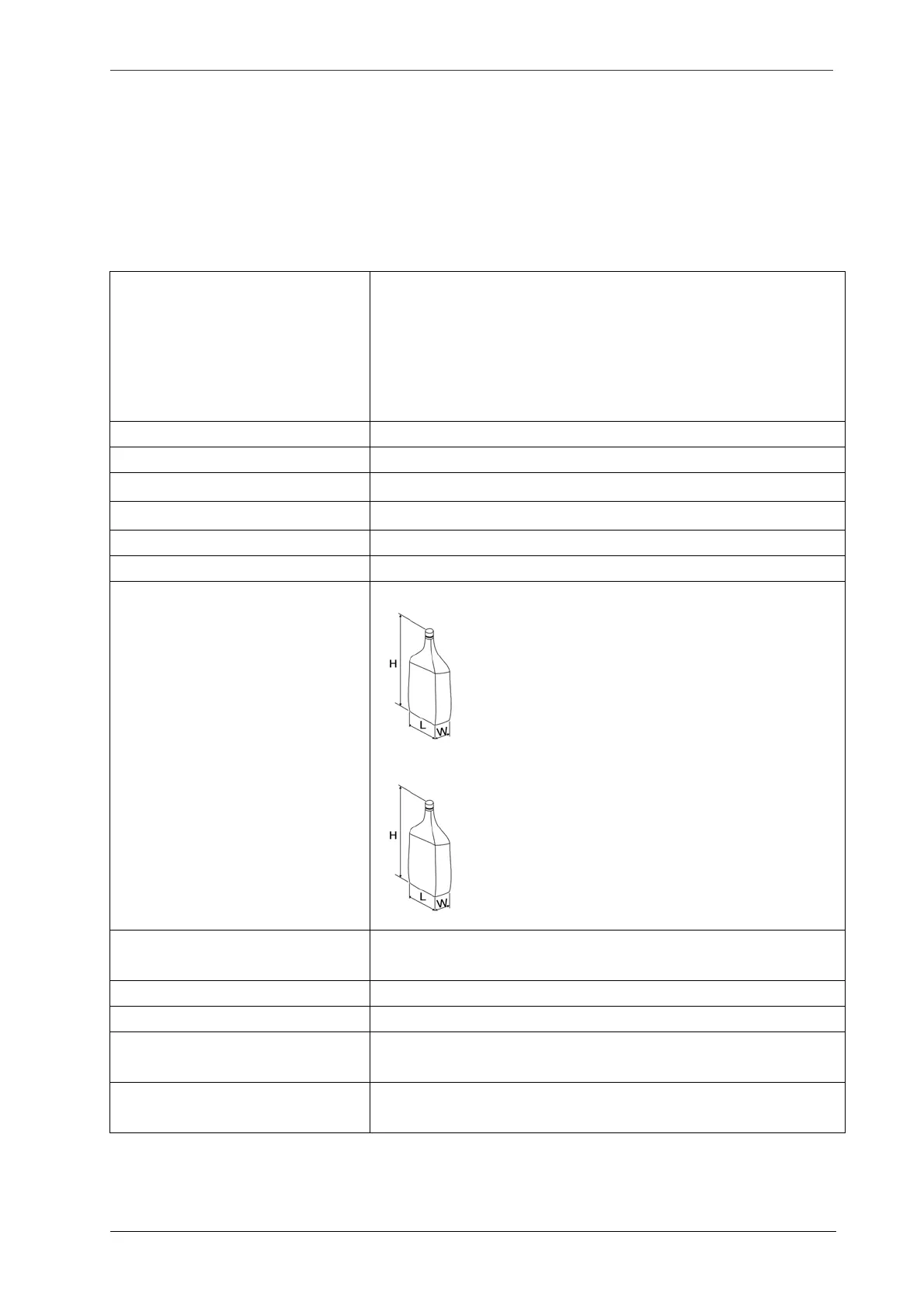

Applicable Container/Bottle Size Range
Conveyor Width Standard: 86 mm (3½")
Optional: 152mm (6”)
Conveyor Length Standard: 2,400 mm (94½")
Conveyor Height Standard: 915 mm (36”)
Product Separator Standard: Spacing wheel
Option: Separating screw
Label Sensor
a. Photo sensor (Label-7): for general labels (standard)
b. Special sensor (LRD6110) : for transparent labels (option)
CVC 400 Standard Type: Square
/
flat /oval Bottle
L: 30 - 200 mm (1¼" – 7 ¾")
W: 30 - 110 mm (1¼"– 4 ¼")
D: ø30 - ø110 mm (ø1¼" –ø 4¼")
H: 70 - 320 mm (2 ¾" – 12 ½")
CVC 400F6 Special Type: Square/flat /oval Bottle
L: 50 - 245 mm (2" – 9 ¾")
W: 30 - 140 mm (1¼"– 5½")
D: ø30 - ø140 mm (ø1¼" –ø 5½")
H: 95 - 410 mm (3 ¾" – 16¼”)
2 - 1
