CVC TECHNOLOGIES, INC. CVC 400 OPERATION MANUAL
11.12 Labeling Position (POSITN) Adjustments
a. This labeling position refers to the horizontal position where the label is applied.
Fig 1 Fig 2 Fig 3 Fig 4
Bottle
Label
Fig
11.12-1

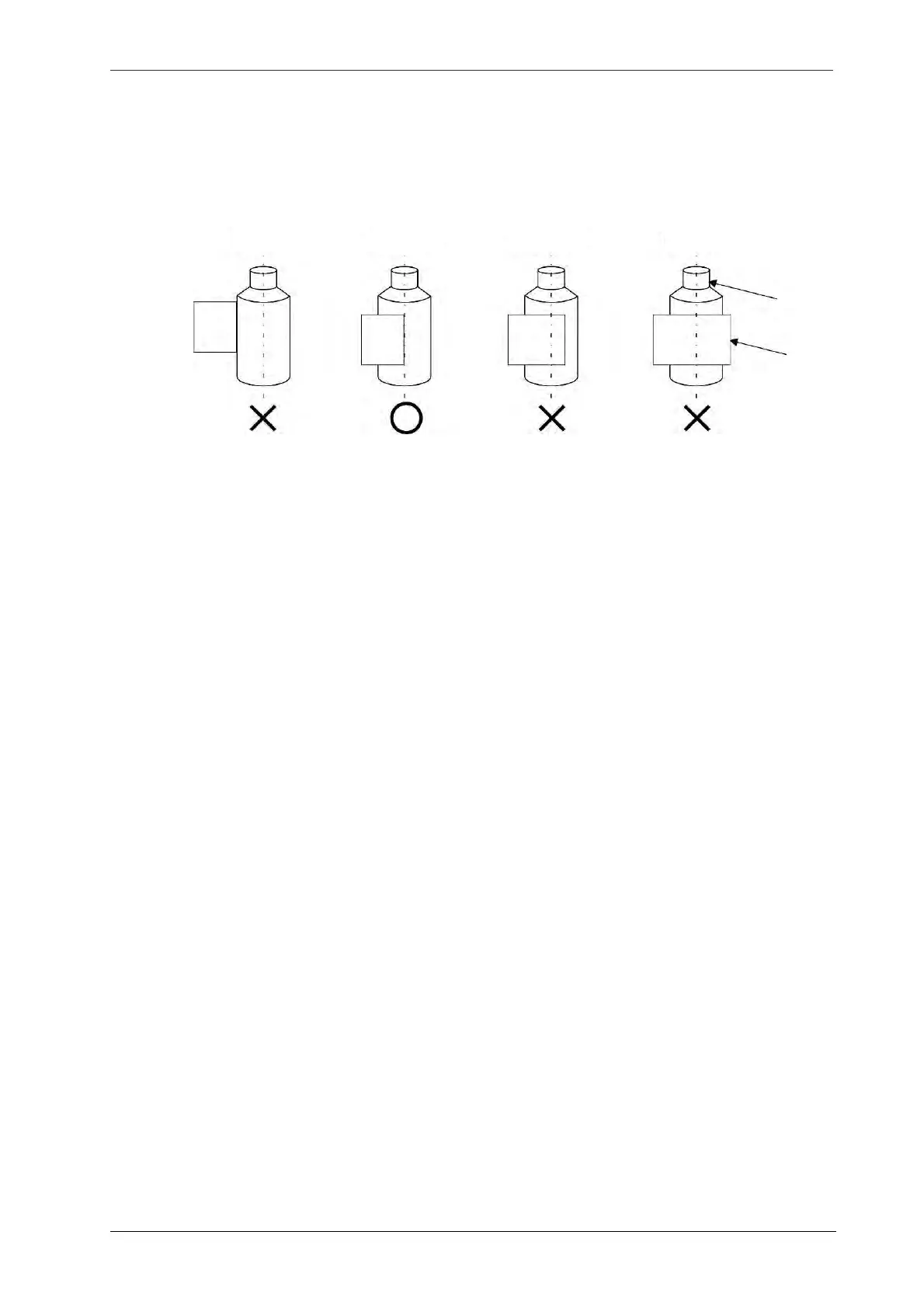

b. Correct labeling position is shown on the Fig. 2.
c. Labeling position (POSITN) is automatically calculated by the SelfSet
TM
system during the slow
bottle advancing movement when performing the automatic adjustment (AUTO ADJ), this
adjustment is not recommended unless for special reasons or when the product sensor has been
moved.
d. If the applied labels are too near to the left side as shown in Fig 1, then the labeling position
(POSITN) should be adjusted to the right.
e. If the applied labels are too near to the right side as shown in Fig 3, 4, then the labeling position
(POSITN) should be adjusted to the left.
f. Do not change the product sensor position when its distance from the level dispensing point is used
for automatic calculation.
11 - 8
