7.2 Printed Circuit Board

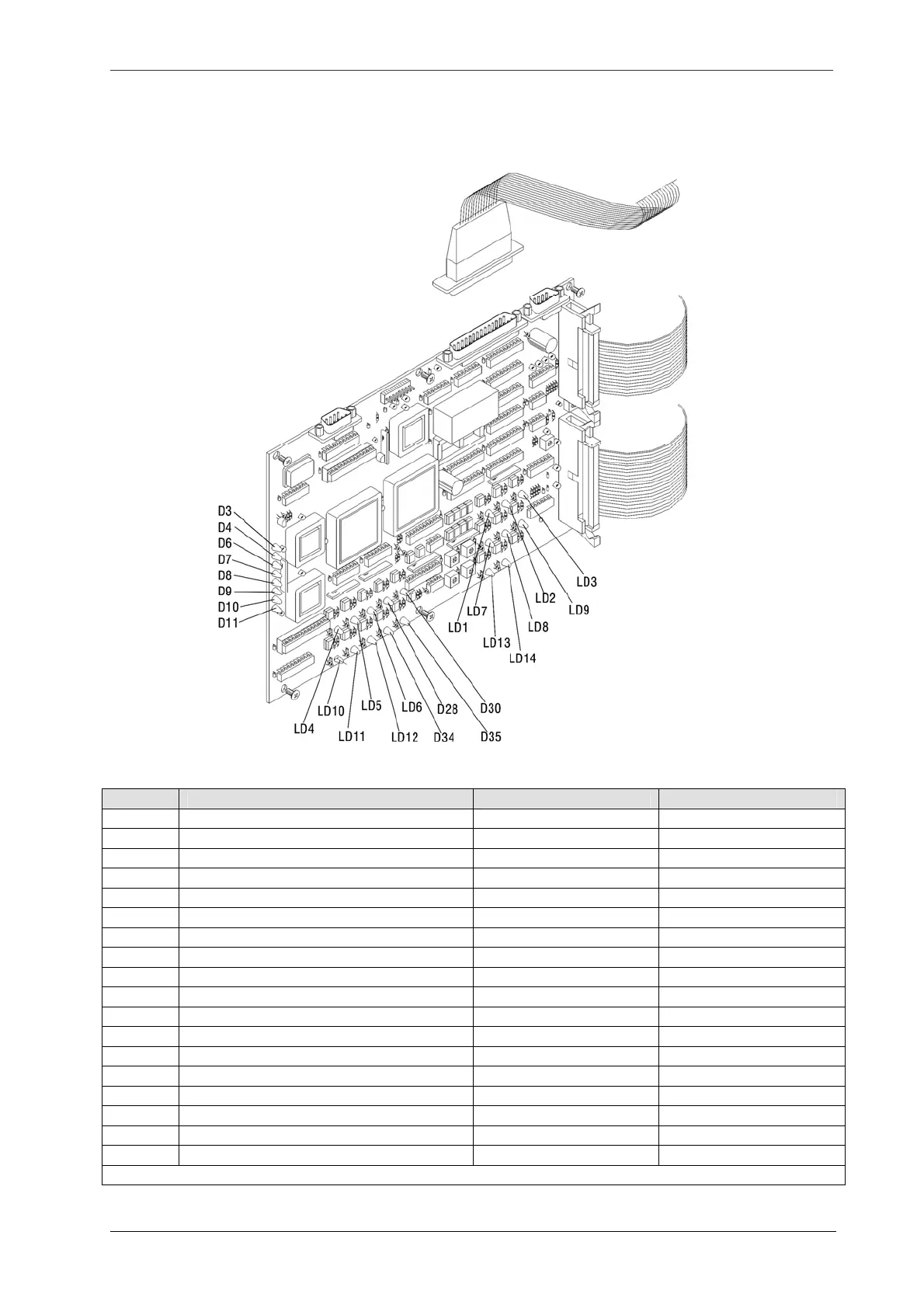

7.2.1 C4: Master Board
Indicator List
Item Lamp Function Power ON On "Labeling"
D3 Labeling Head "B" (CVC 400 and CVC 430) Lit Off
D4 Spare – for future use Off Off
D6 Spare – for future use Off Off
D7 Spare – for future use Off Off
D8 Labeling Head "A" (CVC 400 and CVC 430) Lit Off
D9 Spare – for future use Off Off
D10 Spare – for future use Off Off
D11 Spare – for future use Off Off
LD4 Spare – for future use Off Off
LD5 Product sensor Lit Off
LD6 Spare – for future use Off Off
D28 Conveyor encoder (A) Lit or Off Flashing
D30 Wrap encoder (A) (only CVC 430) - -
LD10 Spare – for future use Off Off
LD11 Sensor – Push & Press attachment (optional) Off Lit
LD12 Spare – for future use Off Off
D34 Conveyor encoder (B) Lit or Off Flashing
D35 Wrap encoder (B) (only CVC 430) - -
LD1, LD2, LD3, LD7, LD8, LD9, LD13, LD14 are spare indicators, for future use.
