CVC TECHNOLOGIES, INC. CVC 400 OPERATION MANUAL
7 - 5

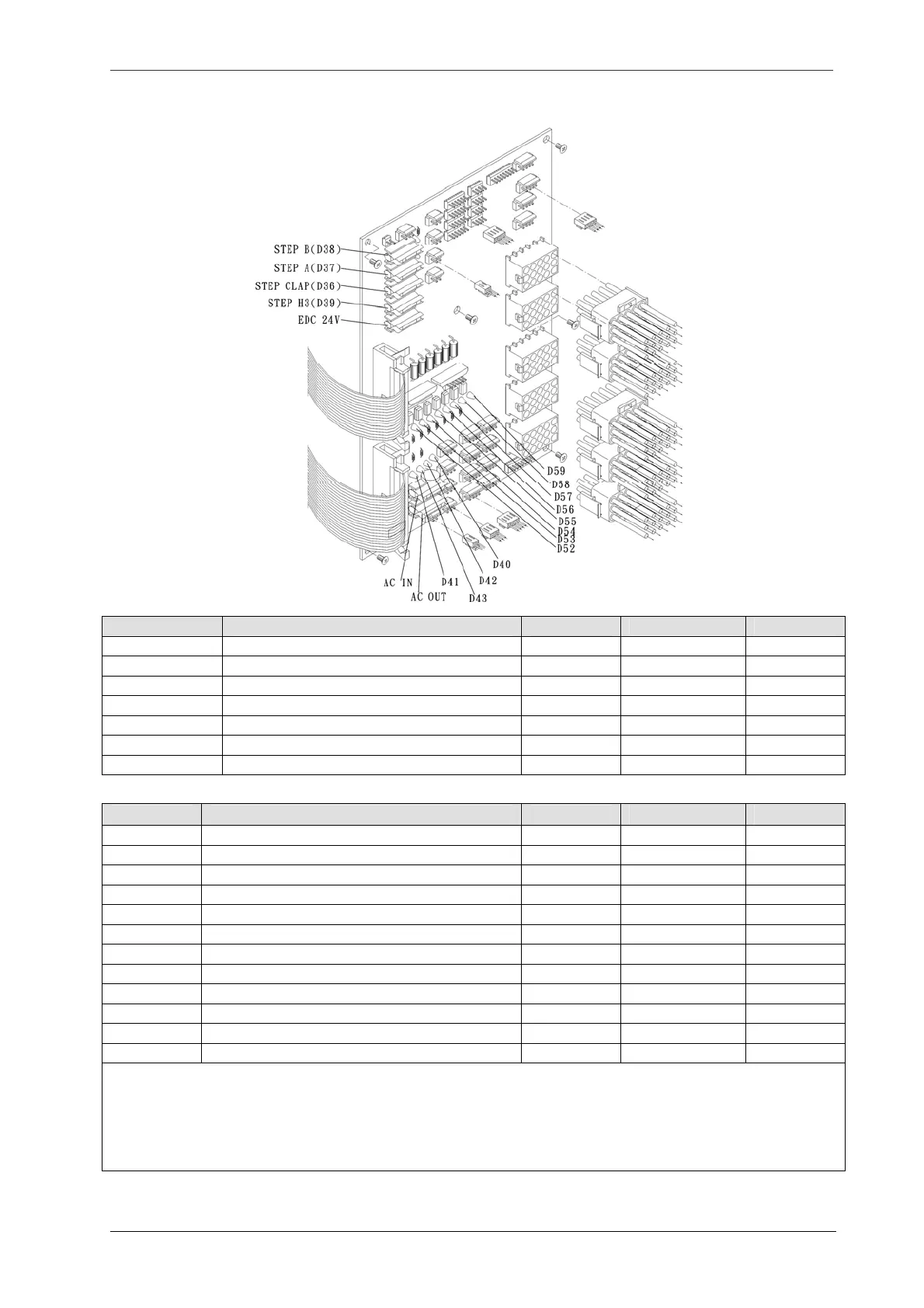

7.2.2 C15: Interface Board Fusing and Indicators
Item Fuse Function
Working
Trouble Indicator Fuse Size
STEP B (D38) Fuse for Labeling Head "B" Off Lit 4A (20mm)
STEP A (D37) Fuse for Labeling Head "A" Off Lit 4A (20mm)
STEP Clap (D36) Fuse for Push and Press attachment (optional) Off Lit 4A (20mm)
STEP H3 (D39) Spare – for future use Off Lit 4A (20mm)
EDC 24V Fuse for DC24 Off Lit 4A (20mm)
AC IN Fuse for Main Power Input Lit Off 6A (20mm)
AC OUT Fuse for Main Power Output Lit Off 6A (20mm)
Item Indicator Function Power ON
Working Trouble
D41 DC Power Supply (5V) Lit Lit Off
D42 DC Power Supply (12V) Lit Lit Off
D43 DC Board (12V) Lit Lit Off
D40 DC Board (24V) Lit Lit Off
D52 Printing signal to Hot Stamp on Head "B" (optional)
Lit Flashing Off
D53 Label Dispensed signal Lit Flashing Off
D54 Spare - for future use Lit Lit -
D55 Spare - for future use Lit Lit -
D56 Printing signal to Hot Stamp on Head "A" (optional)
Lit Flashing Off
D57 Spare – for future use Lit Lit -
D58 Spare - for future use Lit Lit -
D59 DC Motor Starting Impulse Lit Run: Off Run: On
Note:
a. Fuses for stepper motor driver are located at side board: F1 (D38), F2 (D37) and F3 (D36).
b. LED D37 is lit when F2 fuse is burned. Replace a new fuse and a new head A stepper motor driver.
c. LED D38 is lit when F1 fuse is burned. Replace a new fuse and a new head B stepper motor driver.
d. LED D36 is lit when F3 fuse is burned. Replace a new fuse and a new stepper motor driver for P&P attachment.
