CVC TECHNOLOGIES, INC. CVC 400 OPERATION MANUAL
11 - 6

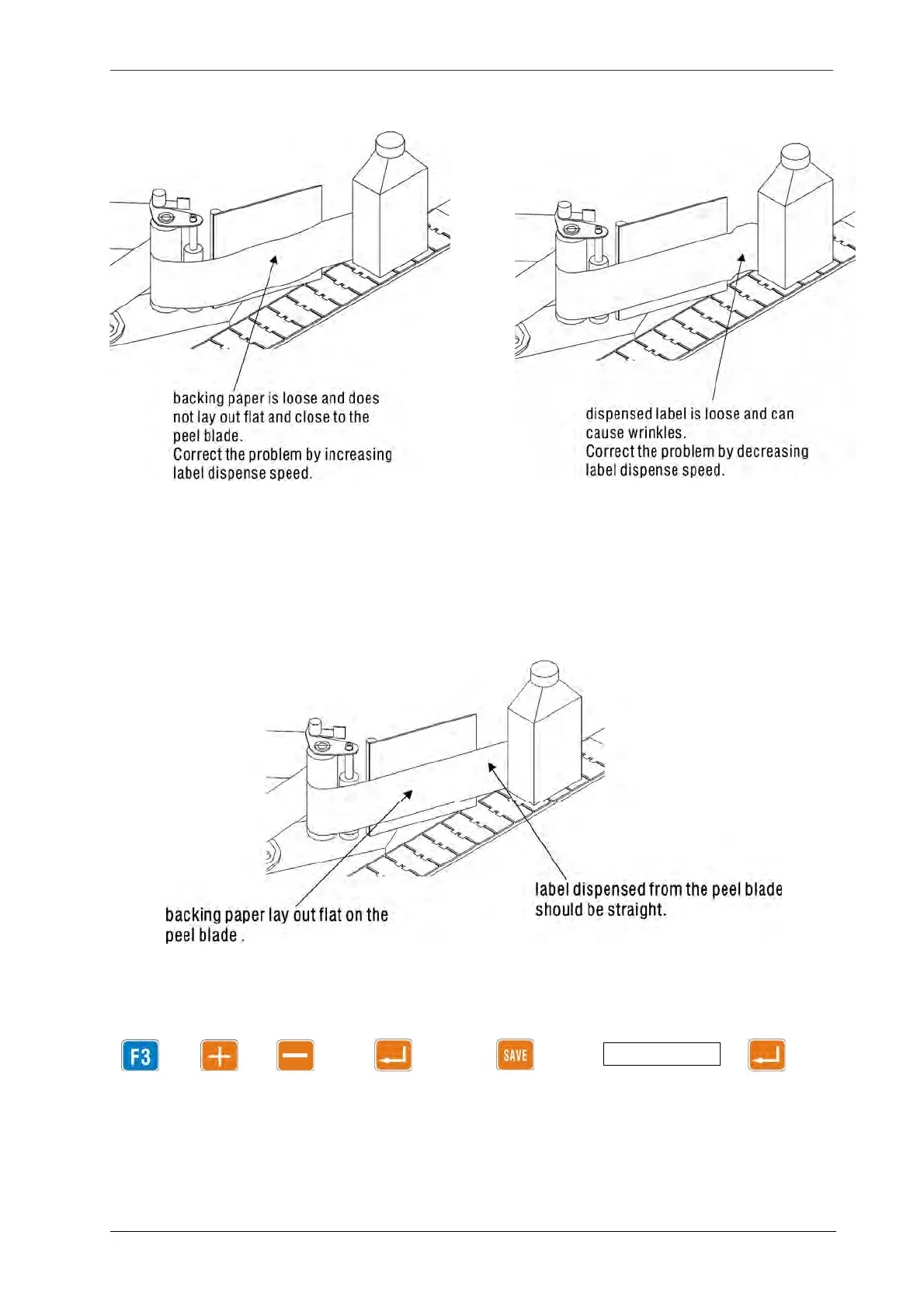

c. The following figure shows correct labeling performance, the backing paper should stretch flat and
close to the peel blade, and the label should be slightly tensed by the advancing bottle.
Fig
11.10-1 Fig
11.10-2
Fig
11.10-3
d. To enter a new speed into memory:
→ or key → key → key → Memory (job) # → key.
