Assemble the column
T
he instructions below is an example how to assemble the column.
Note:
The instructions shows a BPG 140 column but is applicable to other BPG
c
olumns.
Step Action

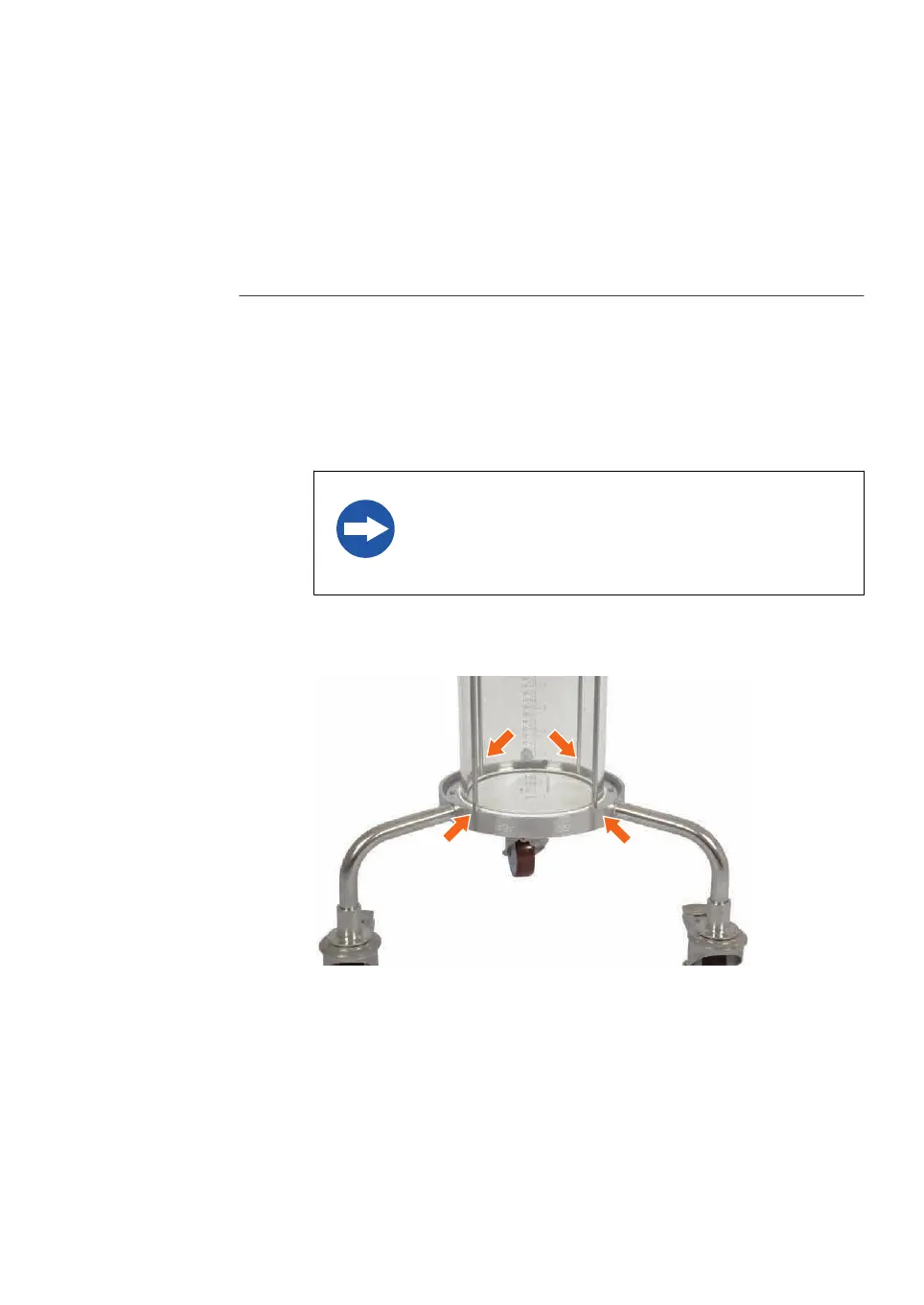

1 Carefully place the glass tube on the O-ring in the end-piece. Make sure that
t
he glass tube does not touch the stainless steel. Align the glass tube with
the bottom net.
Note:
BPG 450: Carefully place the column tube on the U-shaped seal. Make sure
the flange is centered on the U-shaped seal.
NOTICE
T
he glass tube can crack if touching any stainless steel.
2 Screw the support rods into the end-piece, see T
orque wrench, on page 88.
3 Fit the column tube to the end-piece with the bolts.
4 Position the flange so that the support rods fit into the appropriate holes.
6 Maintenance
6
.2 Replacements of nets and O-rings
6.2.2 Replacements in the column
