Step Action
5 Make sure that the O-ring on the flange is aligned with the glass tube.
NOTICE
Twisted or deformed O-rings will cause leakage.
6 Align the inner surface of the glass tube with the inner surface of the flange.
7 Fit the washers and the nuts on the support rods and fingertighten the nuts.
8 Set the torque wrench according to specifications, see T
orque wrench, on
page 88.
NOTICE
D
o not exceed the given torque, this could damage the
column.

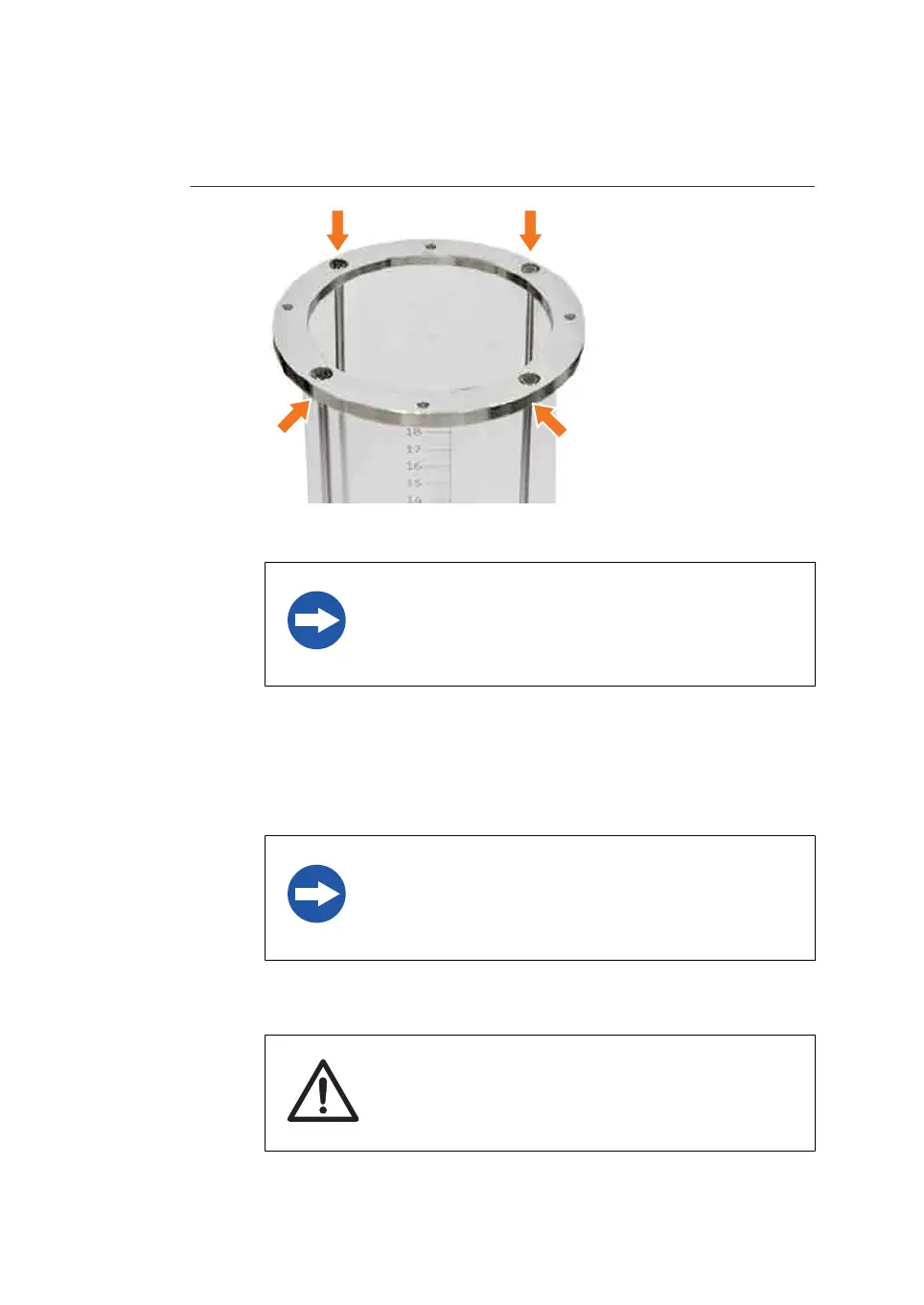

9 Tighten the nuts in cross-wise sequence evenly as shown in T
orque wrench,
on page 88.
CAUTION
A
fter assembly, check that the column is tight and not
leaking.
6 Maintenance
6
.2 Replacements of nets and O-rings
6.2.2 Replacements in the column
96
BPG Columns Operating Instructions 29193223 AB
