xStack
®
DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual
150
To view the information on a per port basis click the View (Normal) button, which will display the following window:

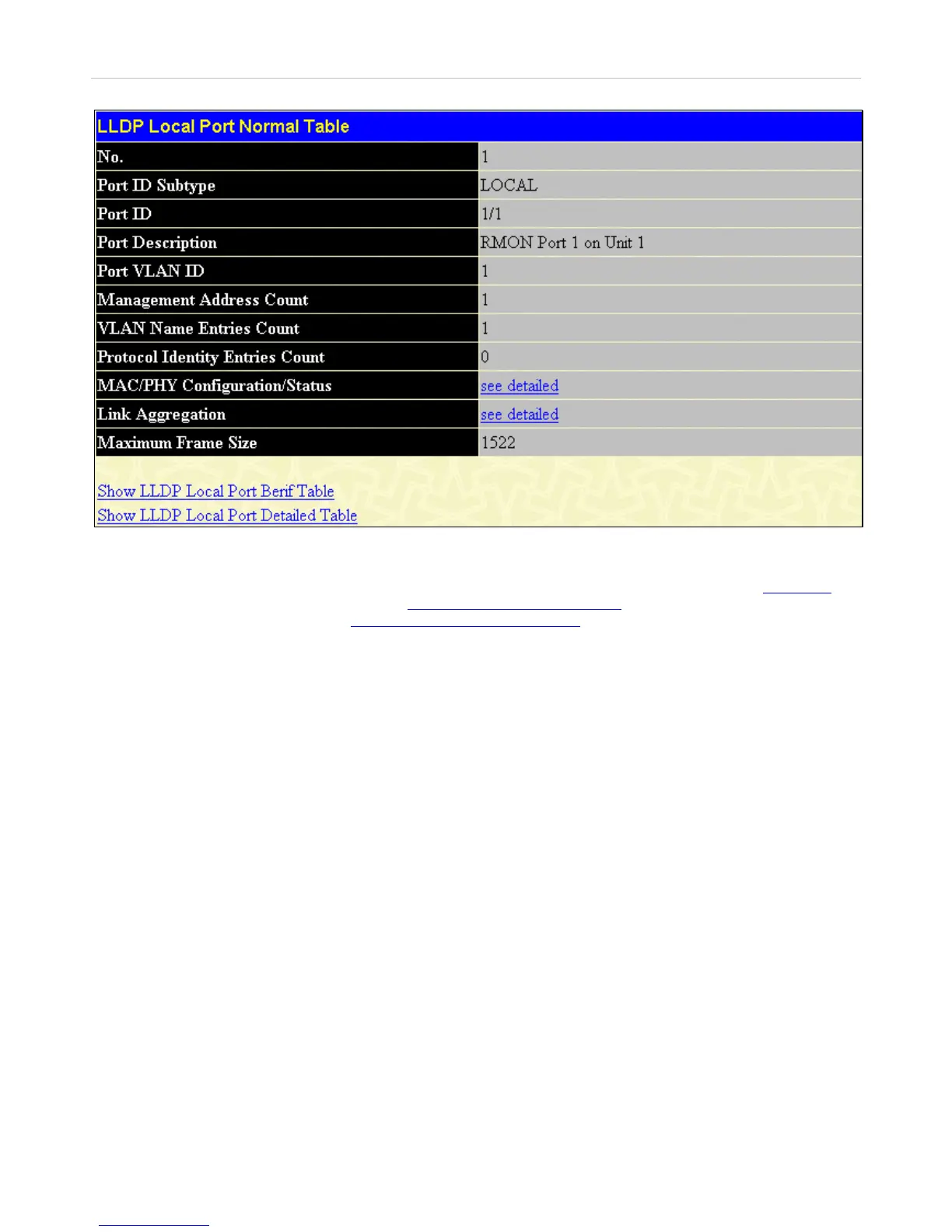

Figure 6- 134. LLDP Local Port Information (Normal) window
To view detailed information about MAC/PHY Configuration/Status or Link Aggregration, click the hyperlinked see detailed
. To
return to the previous window click the hyperlinked Show LLDP Local Port Berif Table
. To view more detailed information of
individual parameters click the hyperlinked Show LLDP Local Port Detailed Table
, which will reveal the following window;
