xStack

DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual

151

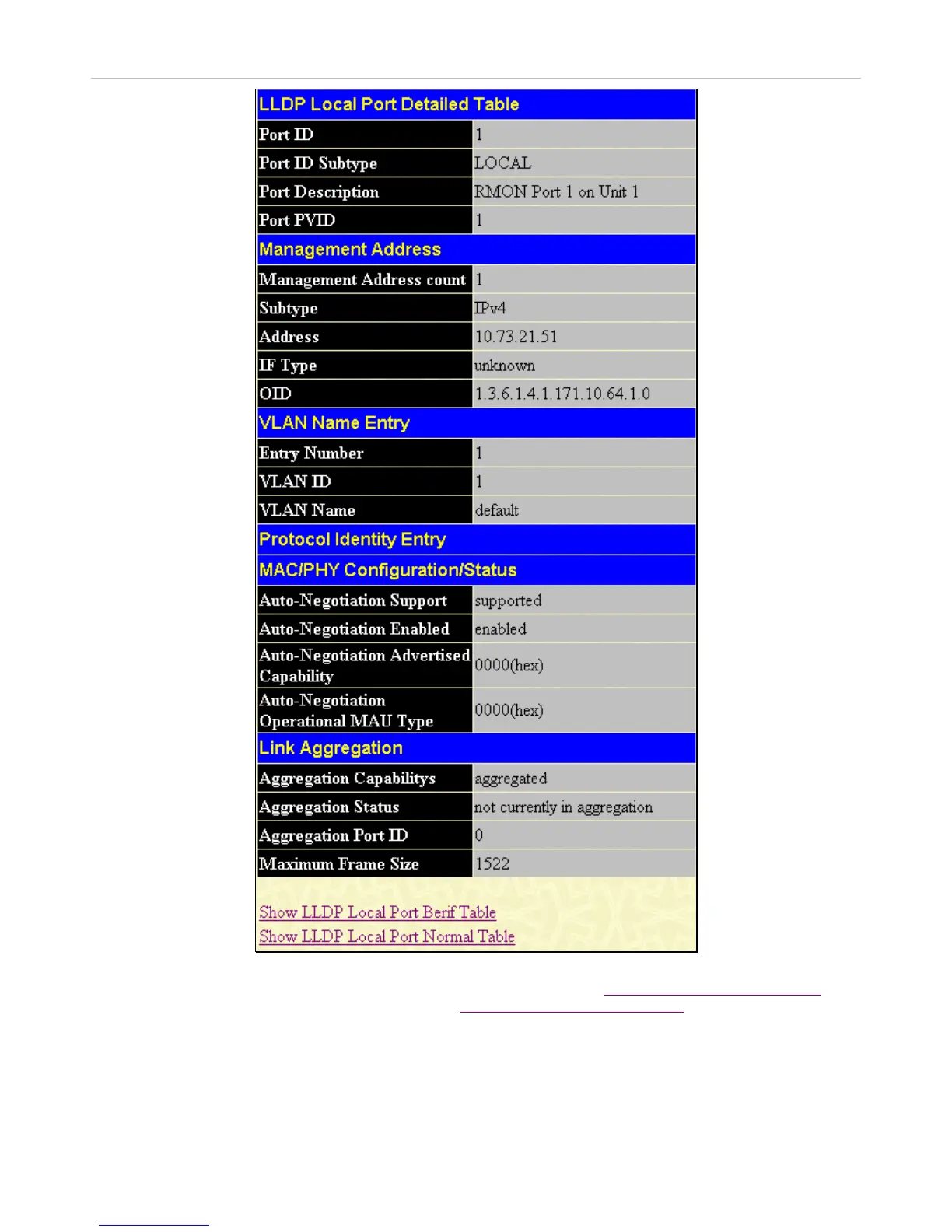

Figure 6- 135. LLDP Local Port Information (Detail) window

To return to the LLDP Local Port Berif Information window, click the hyperlinked Show LLDP Local Port Berif Table

, or to

return to the Local Port Normal window click the hyperlinked Show LLDP Local Port Normal Table
