Unpacking and Installation
16
DWC-1000 Wireless Controller User’s Guide

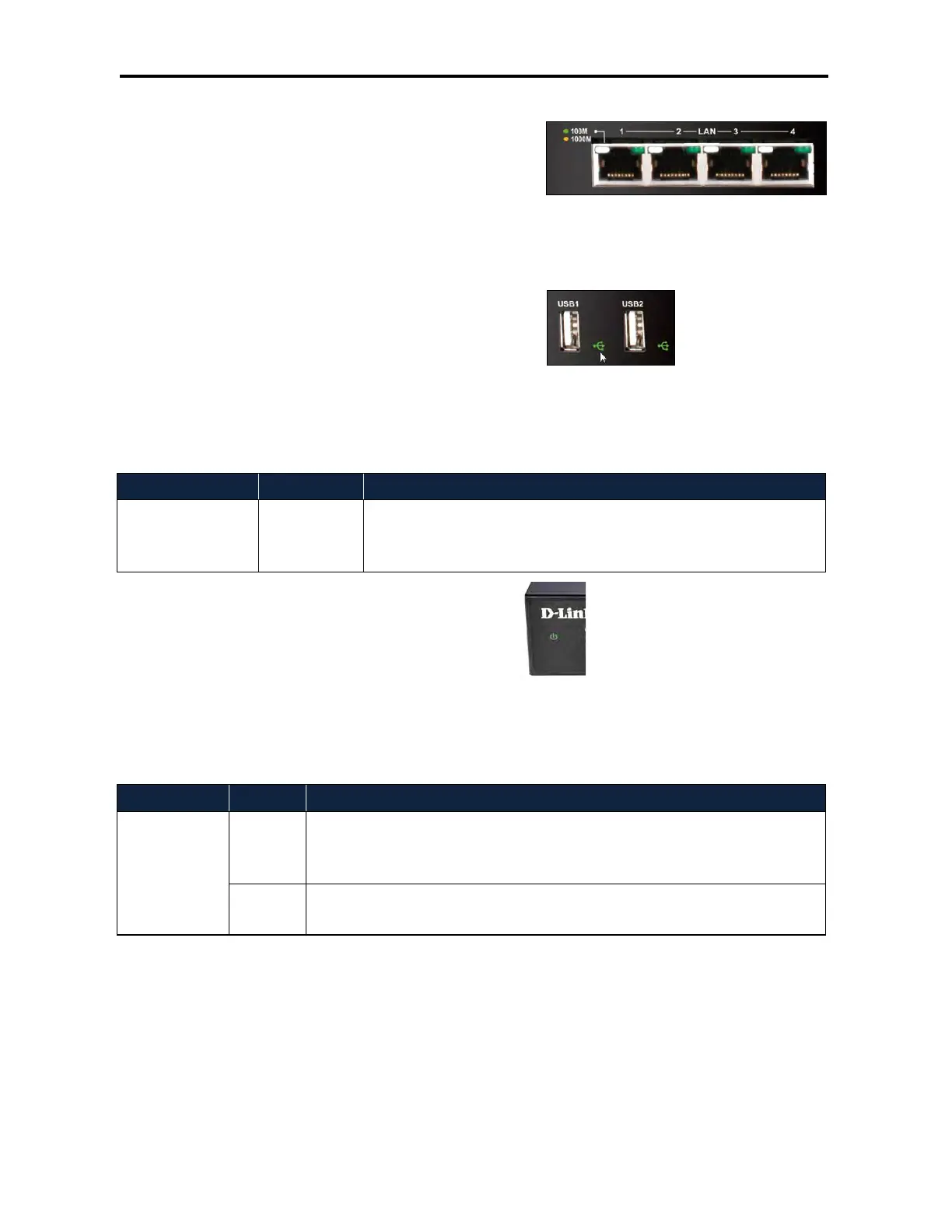

Four Gigabit Ethernet LAN Ports
Four Gigabit Ethernet ports labeled LAN 1 through LAN 4 let you connect Ethernet devices
such as computers, switches, and hubs. Each port has an Activity LED (left) and Link LED
(right) – see Table
2-2.
Two USB 2.0 Ports
Two Universal Serial Bus (USB) 2.0 ports are provided for connecting USB flash drives, hard
drives, computers, and printers. Each port has an LED.
Table 2-2. USB LEDs
LED Color Description
USB LED Green ON = link is good.
Blink = there is activity on the port.
OFF = device is powered off.
Power LED
Facing the front of the wireless controller, the Power LED is located on the far left side. This
LED provides a visual indication of the wireless controller’s power-on or power-off state.
Table 2-3. Power LED
LED Color Description
Power LED Green ON = power-on process complete.
OFF= wireless controller is powered OFF.
Blink = system is defective and firmware upgrades have failed.
Orange ON = power-on process in progress.
OFF= wireless controller is in recovery mode following a crash.
