Basic Configuration
44
DWC-1000 Wireless Controller User’s Guide
3. Associate the captive portal group to an interface

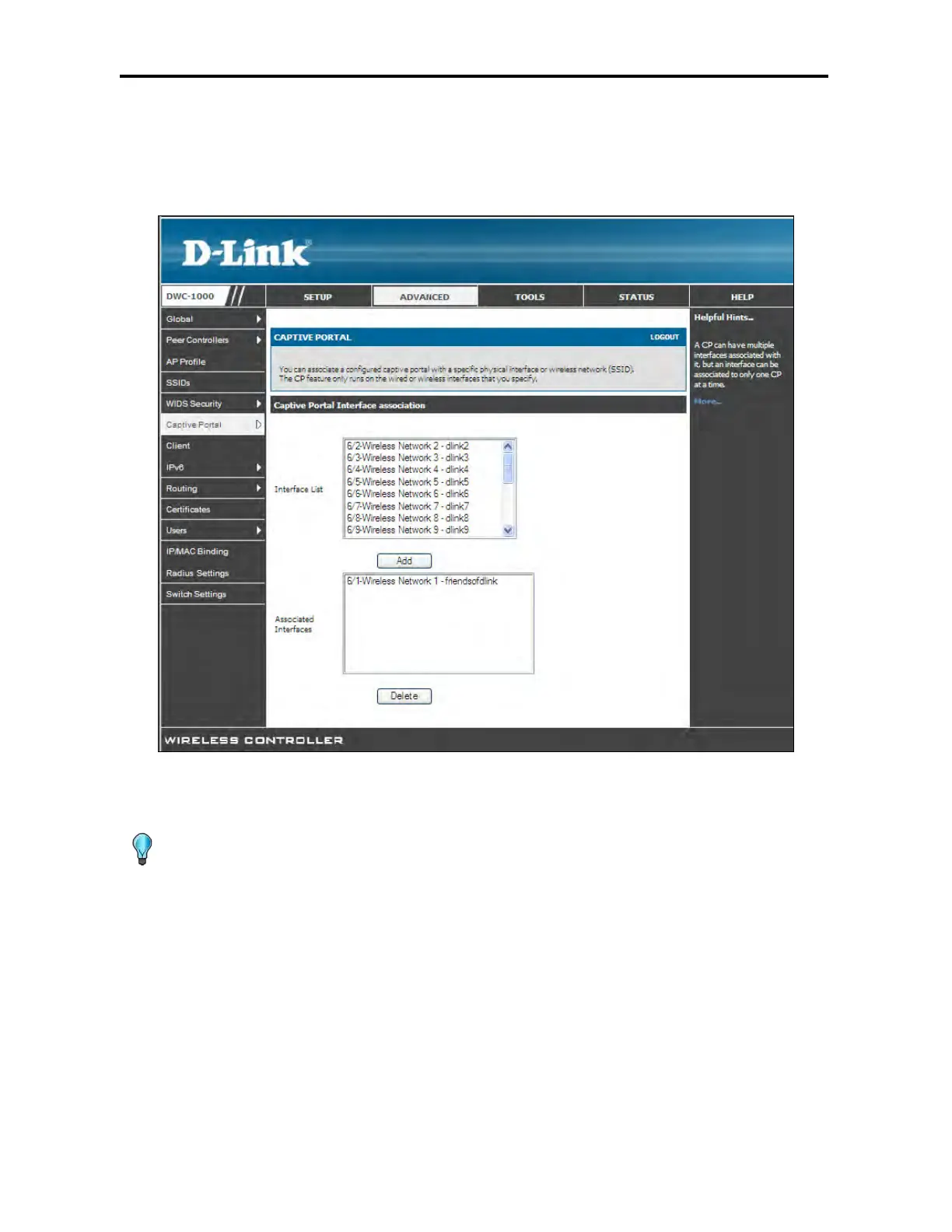

a. Click ADVANCED > Captive Portal > Wlan CP Interface Association. The CAPTIVE
PORTAL page appears.
b. In the Interface List, click an interface.
Tip: Hold down the Shift key when clicking to select a contiguous range of
interfaces. To select non-contiguous interfaces hold down the Ctrl key and click
each interface. To deselect an interface, hold down Ctrl and click the highlighted
interface.
c. Click Add.
The captive portal is now associated to the selected interface. To test your configuration
from a client, connect to the captive portal SSID to log in to the captive portal. Enter an IP
address on the captive portal network to see the captive portal.
