Advanced Configuration Settings
57
DWC-1000 Wireless Controller User’s Guide
3. Click Save Settings.
Creating VLANs
Path: SETUP > VLAN Settings > Available VLANs
After you enable the wireless controller’s VLAN function, use the AVAILABLE VLANS page
to create VLANs. After you create VLANs, you can use the same page to view, edit, and
delete VLANs.
To create a VLAN:

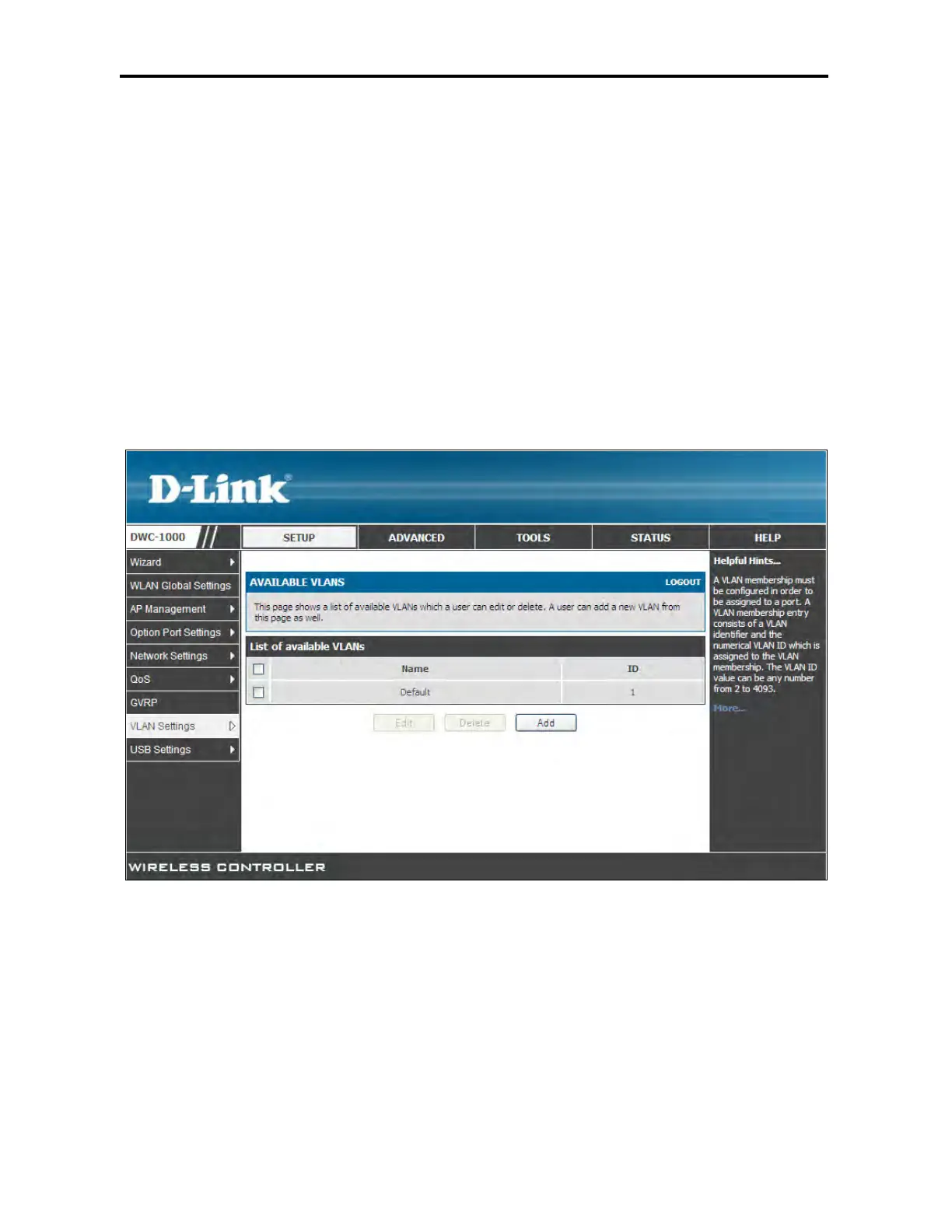

1. Click SETUP > VLAN Settings > Available VLANs. The AVAILABLE VLANs page
appears.
2. Click Add. The following page appears.
