Maintenance
194
DWC-1000 Wireless Controller User’s Guide
a. Under Group Policy By Source IP Address, click Deny Login from Defined
Addresses.

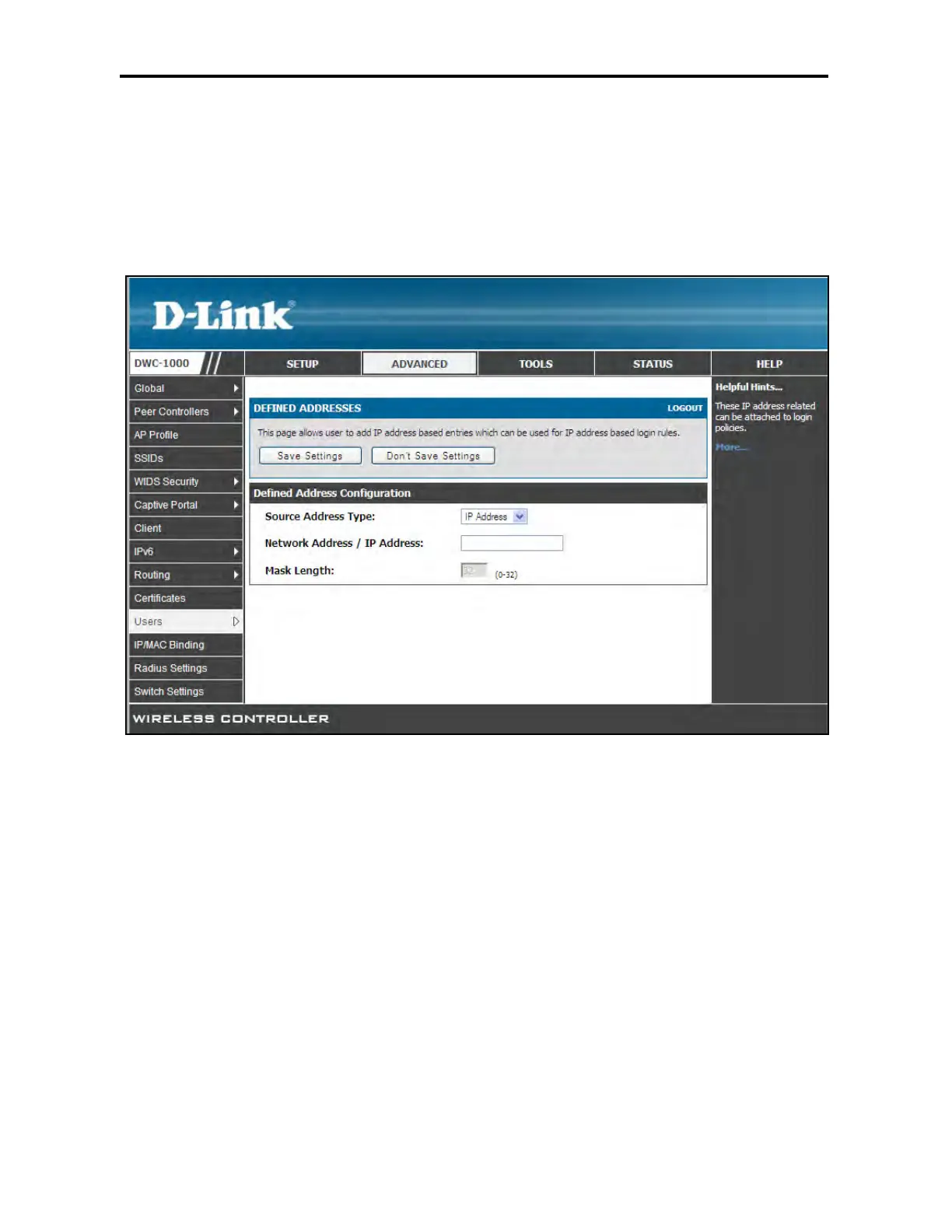

b. Click the Add button. The DEFINED ADDRESSES page appears.
c. Complete the fields in the page (see Table 8-3) and click Save Settings. The address
you defined appears in the Defined Addresses area.
5. To allow the users in this user group to log in to the web management interface using a
particular network or IP address:
a. Under Group Policy By Source IP Address, click Allow Login from Defined
Addresses.
b. Click the Add button. The DEFINED ADDRESSES page appears.
c. Complete the fields in the page (see Table 8-3) and click Save Settings. The address
you defined appears in the Defined Addresses area.
6. To remove addresses from the Defined Addresses area:
a. Click each address. (Or click the box next to Added Client Browser to select all
addresses.)
b. Click Delete. A precautionary message does not appear prior to deleting the
addresses.

Table of Contents

Other manuals for D-Link DWC-1000

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the D-Link DWC-1000 and is the answer not in the manual?

D-Link DWC-1000 Specifications

General IconGeneral
Ethernet LANYes
Wi-Fi standards802.11a, 802.11b, 802.11g
Networking standardsIEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u
Ethernet LAN data rates10, 100, 1000 Mbit/s
Number of managed Wi-Fi Access Points (max)6
Security algorithms3DES, DES, WEP, WPA, WPA2
USB 2.0 ports quantity2
Ethernet LAN (RJ-45) ports4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
CertificationFCC B, CE B, VCCI, C-tick, IC, cUL, LVD (EN60950-1)
Built-in displayNo
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)5 - 95 %
Power requirementsDC 12V/2.5A
Power consumption (typical)19.3 W
Pallet width1200 mm
Pallet length1100 mm
Pallet height (air)1419 mm
Pallet height (sea)1847 mm
Pallet gross weight (air)415236 g
Pallet gross weight (sea)545648 g
Quantity per pallet (air)144 pc(s)
Quantity per pallet (sea)192 pc(s)
Shipping (inner) case width296 mm
Shipping (inner) case height428 mm
Shipping (inner) case length354 mm
Shipping (inner) case weight10826 g
Shipping (inner) case net weight10016 g
Number of cartons per pallet (air)36 pc(s)
Number of cartons per pallet (sea)48 pc(s)
Quantity per shipping (inner) case4 pc(s)
Weight and Dimensions IconWeight and Dimensions
Package depth396 mm
Package width273 mm
Package height80 mm
Package weight2504 g
Dimensions (WxDxH)280 x 180 x 44 mm
