Unpacking and Installation
20
DWC-1000 Wireless Controller User’s Guide

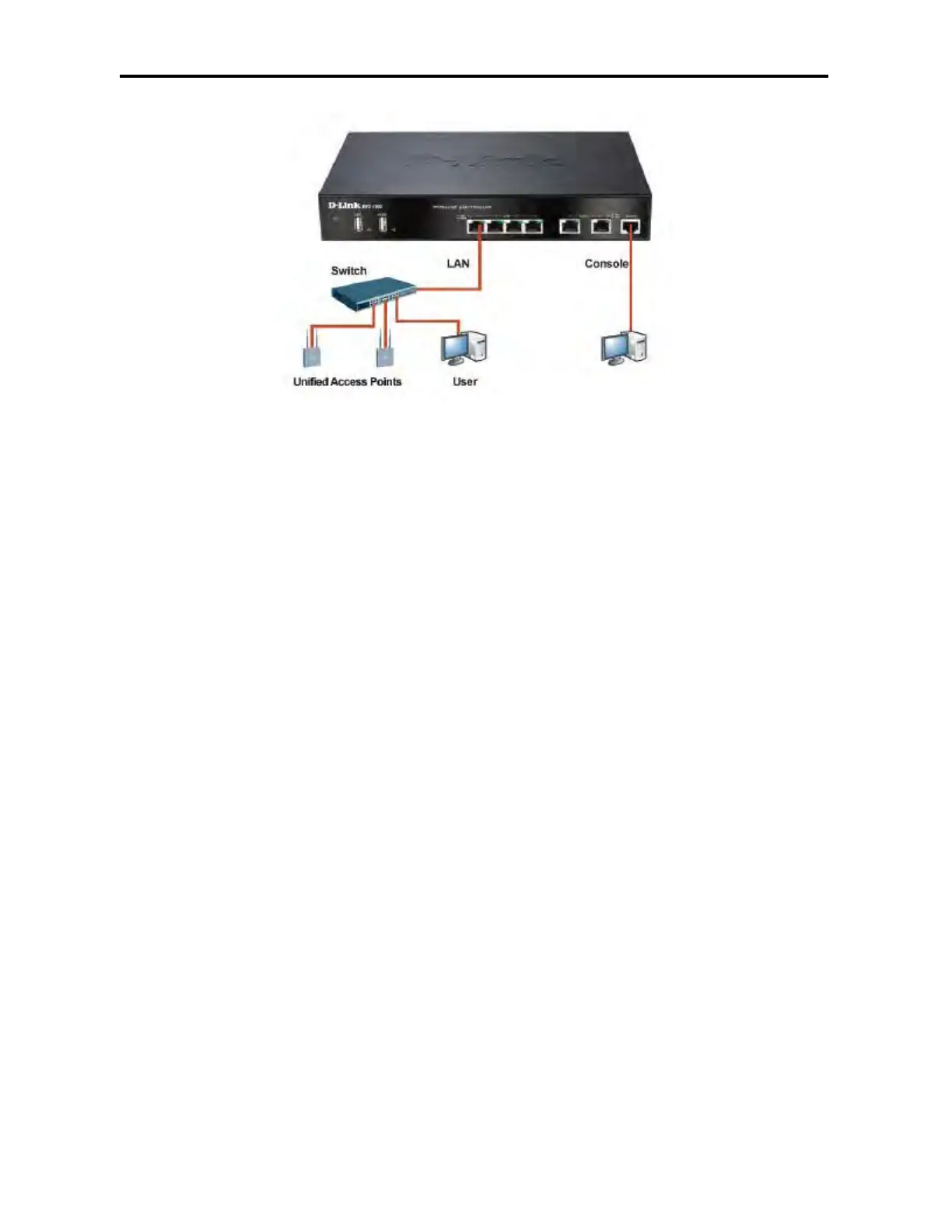

Figure 2-5. Wireless Controller Installation
4. If you purchased a VPN/Firewall/Router License Pack, use the Option1 and Option2 ports
on the front of the wireless controller as follows:
Option1 = WAN port for connecting to a cable or DSL modem.
Option2 = WAN or DMZ port for dual WAN connections or internal server farm
purposes. If used as a DMZ port, the port’s IP address must be different than the IP
address of the wireless controller’s LAN interface.
5. Using the supplied power cord, connect the wireless controller to a working AC outlet.
6. Set the ON/OFF switch on the rear panel of the wireless controller to the ON position. The
green Power LED to the left of the front panel USB ports goes ON. If the LED is not ON,
see “Power LED is OFF” on page 212.
