D-Link DWC-1000 User Guide

Maintenance
207
DWC-1000 Wireless Controller User’s Guide
3. If the firmware version on the D-Link support website has a higher number than the
firmware version shown under Firmware Information, continue with this procedure.
4. Download the new firmware from the D-Link website.
5. Under Firmware Upgrade, click the Browse button.
6. In the Choose File dialog box, navigate to the firmware file, and then click the file and click
Open.
7. Click Upgrade.
8. At the confirmation message, click OK to start the firmware upgrade. A progress bar shows
the progress of the upgrade.
Note: The upgrade process takes a few minutes. Do not interrupt the upgrade or turn off the
system; otherwise, you can damage the firmware. Wait for the upgrade to complete before
browsing any sites from your browser.

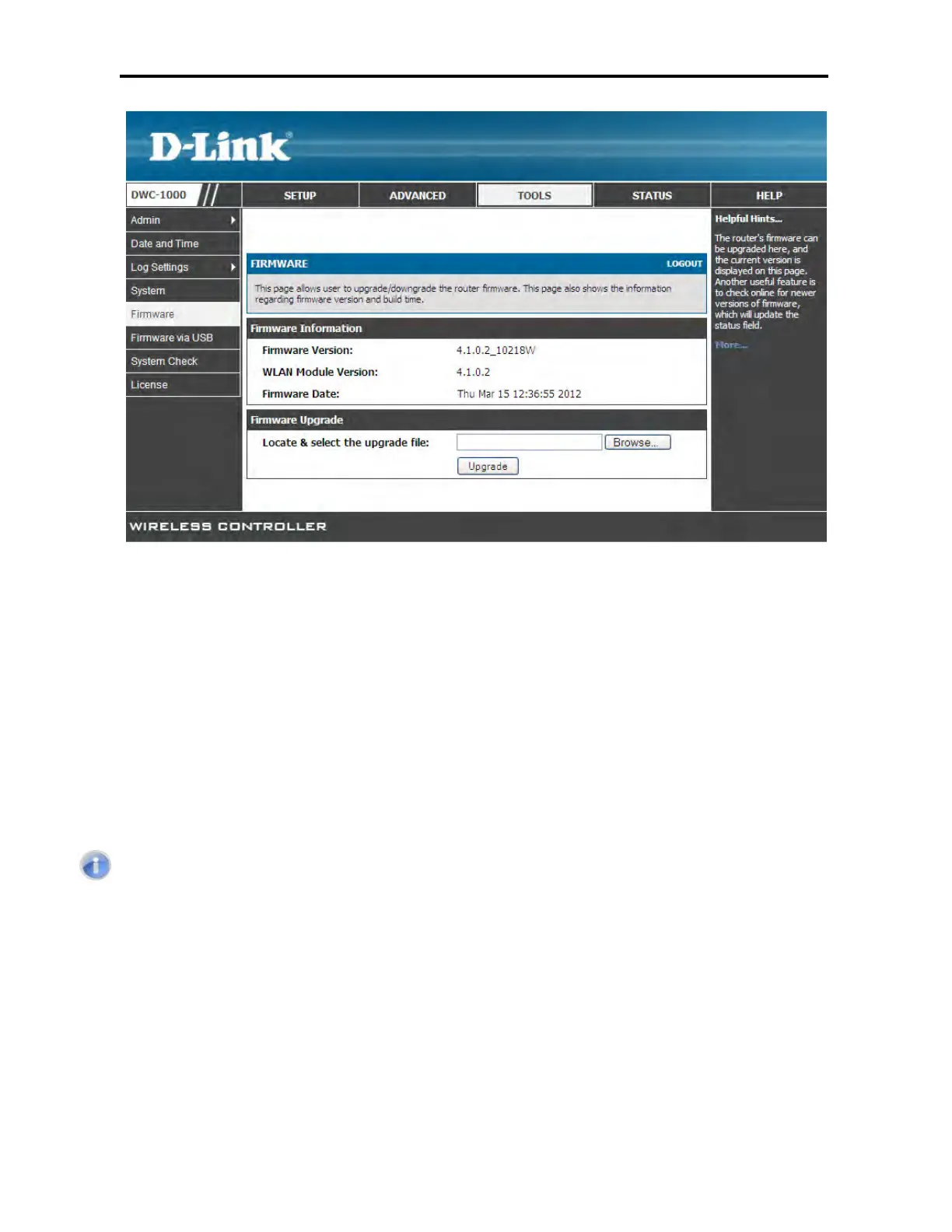

9. When the upgrade completes, log in to the wireless controller web management interface,
click TOOLS > Firmware, and confirm that the new firmware appears next to Firmware on
the FIRMWARE page.
10. Record the firmware level in Appendix A.

D-Link DWC-1000 Specifications

General

Ethernet LAN	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g
Networking standards	IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Number of managed Wi-Fi Access Points (max)	6
Security algorithms	3DES, DES, WEP, WPA, WPA2
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Certification	FCC B, CE B, VCCI, C-tick, IC, cUL, LVD (EN60950-1)
Built-in display	No
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Power requirements	DC 12V/2.5A
Power consumption (typical)	19.3 W
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1419 mm
Pallet height (sea)	1847 mm
Pallet gross weight (air)	415236 g
Pallet gross weight (sea)	545648 g
Quantity per pallet (air)	144 pc(s)
Quantity per pallet (sea)	192 pc(s)
Shipping (inner) case width	296 mm
Shipping (inner) case height	428 mm
Shipping (inner) case length	354 mm
Shipping (inner) case weight	10826 g
Shipping (inner) case net weight	10016 g
Number of cartons per pallet (air)	36 pc(s)
Number of cartons per pallet (sea)	48 pc(s)
Quantity per shipping (inner) case	4 pc(s)

Weight and Dimensions

Package depth	396 mm
Package width	273 mm
Package height	80 mm
Package weight	2504 g
Dimensions (WxDxH)	280 x 180 x 44 mm
