D-Link DWC-1000 User Guide

Securing Your Network
90
DWC-1000 Wireless Controller User’s Guide

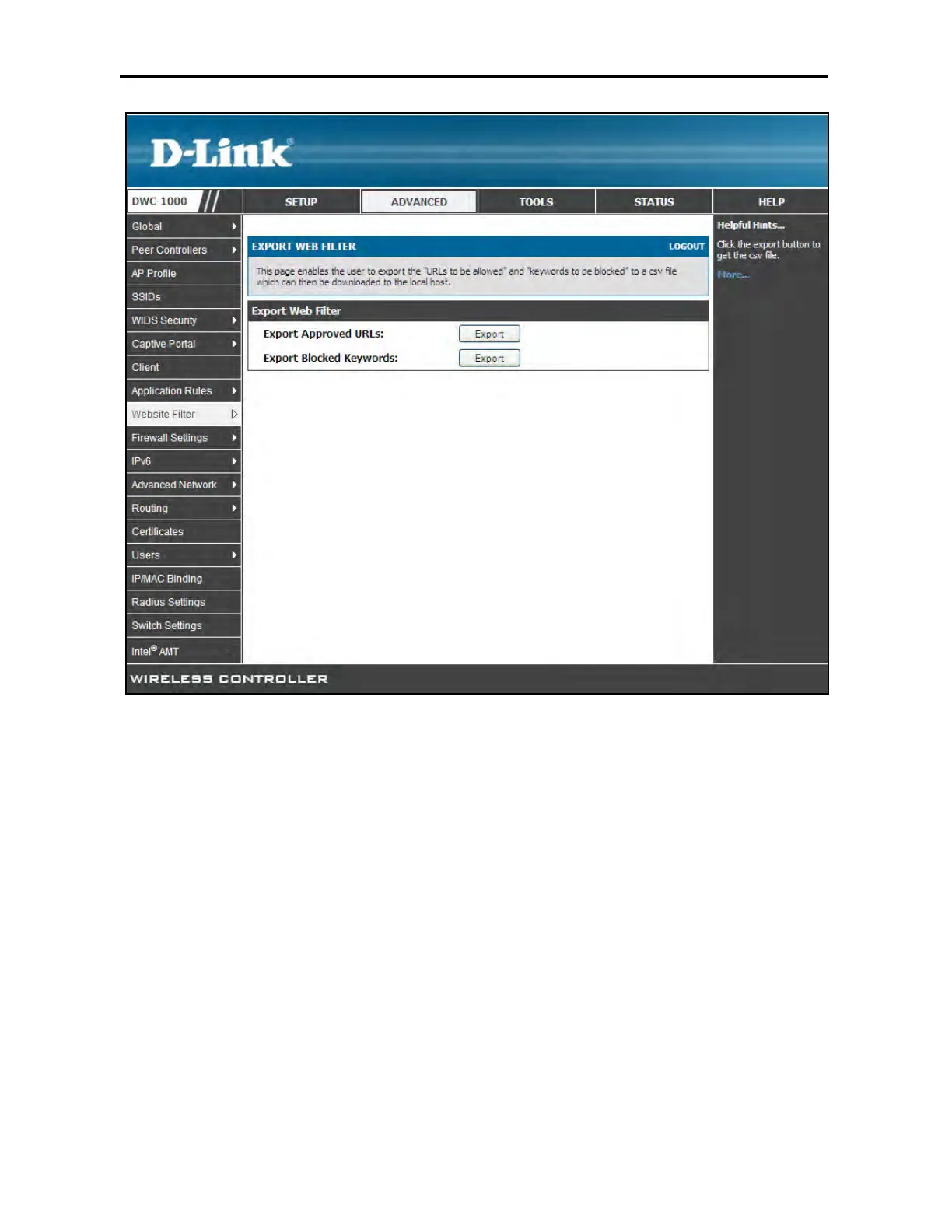

2. To export the approved URLs you defined under “Specifying Approved URLs” on page 86,
under Export Web Filter, click the Export button next to Export Approved URLs. When
the File Download dialog box appears, click Save and save the file to a location.
3. To export the blocked keywords you defined under “Specifying Blocked Keywords” on
page 88, under Export Web Filter, click the Export button next to Export Blocked
Keywords. When the File Download dialog box appears, click Save and save the file to a
location.

D-Link DWC-1000 Specifications

General

Ethernet LAN	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g
Networking standards	IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Number of managed Wi-Fi Access Points (max)	6
Security algorithms	3DES, DES, WEP, WPA, WPA2
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Certification	FCC B, CE B, VCCI, C-tick, IC, cUL, LVD (EN60950-1)
Built-in display	No
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Power requirements	DC 12V/2.5A
Power consumption (typical)	19.3 W
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1419 mm
Pallet height (sea)	1847 mm
Pallet gross weight (air)	415236 g
Pallet gross weight (sea)	545648 g
Quantity per pallet (air)	144 pc(s)
Quantity per pallet (sea)	192 pc(s)
Shipping (inner) case width	296 mm
Shipping (inner) case height	428 mm
Shipping (inner) case length	354 mm
Shipping (inner) case weight	10826 g
Shipping (inner) case net weight	10016 g
Number of cartons per pallet (air)	36 pc(s)
Number of cartons per pallet (sea)	48 pc(s)
Quantity per shipping (inner) case	4 pc(s)

Weight and Dimensions

Package depth	396 mm
Package width	273 mm
Package height	80 mm
Package weight	2504 g
Dimensions (WxDxH)	280 x 180 x 44 mm
