Page 100 Creating a DiffServ Policy Map 34CSFP6XXUAP-SWUM100-D13

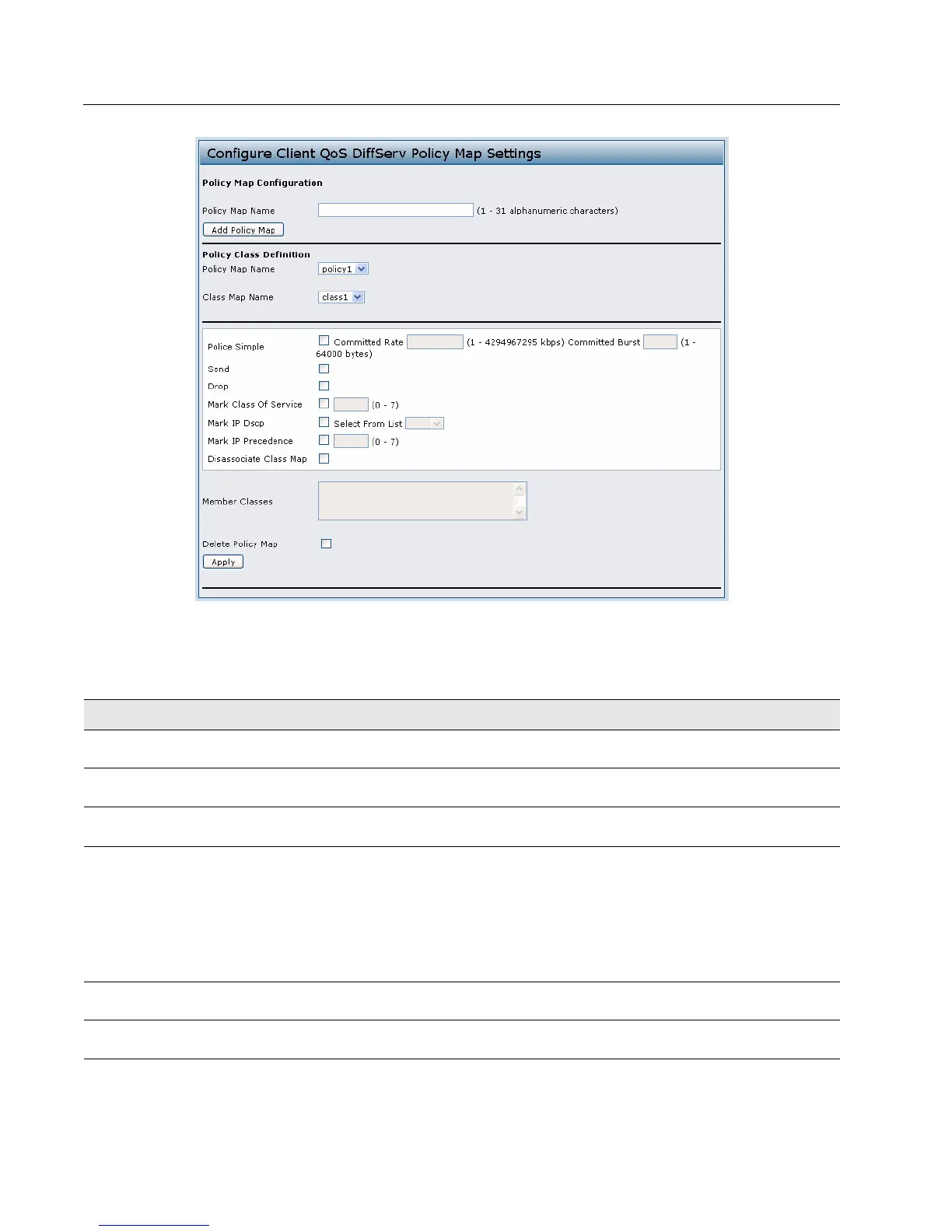

Figure 33: Client QoS DiffServ Policy Map
Table 42: DiffServ Policy Map
Field Description
Policy Map Name Enter then name of the policy map to add. The name can contain up to 31 alphanumeric
characters.
Policy Map Name (Policy Class
Definition)
Select the policy to associate with a member class.
Class Map Name (Policy Class
Definition)
Select the member class to associate with this policy name.
Police Simple Select this option to establish the traffic policing style for the class. The simple form of
the policing style uses a single data rate and burst size, resulting in two outcomes:
conform and nonconform.
Committed Rate
Enter the committed rate, in Kbps, to which traffic must conform.
Committed Burst
Enter the committed burst size, in bytes, to which traffic must conform.
Send Select Send to specify that all packets for the associated traffic stream are to be
forwarded if the class map criteria is met.
Drop Select Drop to specify that all packets for the associated traffic stream are to be dropped
if the class map criteria is met.
