D-Link UAP Software User Manual
12/10/09
Page 128 Configuring Client QoS 34CSFP6XXUAP-SWUM100-D13

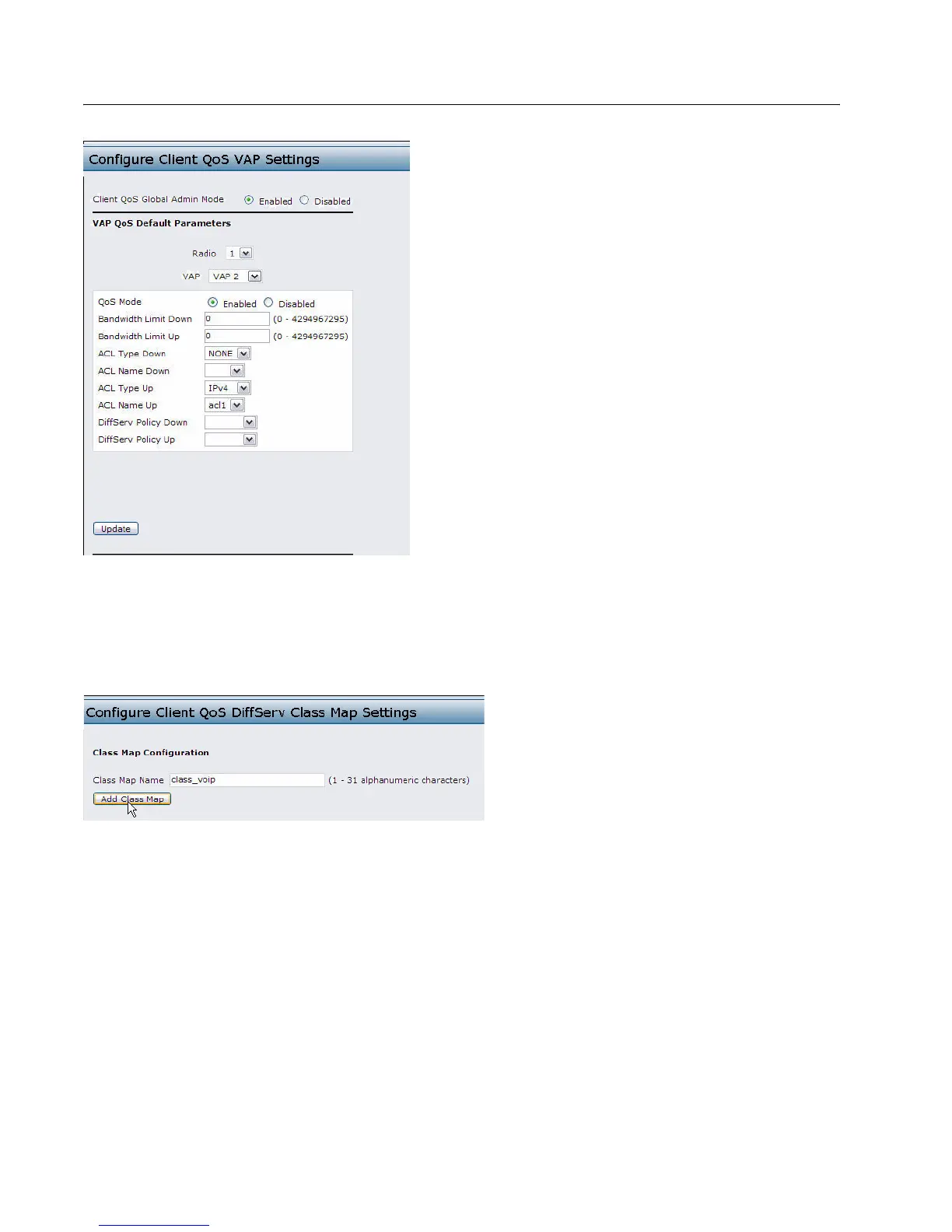

16. Click Update to update the AP with the QoS settings.
DiffServ Configuration
1. Log onto the AP and navigate to the Client QoS > Class Map page.
2. Enter class_voip in the Class Map Name field and click Add Class Map.
The page refreshes and additional fields appear.
3. Select the Match Every option to indicate that all match criteria defined for the class must be satisfied in order for a packet
to be considered a match.
4. Select Protocol, and then select UDP from the Select From List field to define UDP as a match criteria.
5. Select Source IP Address and enter the following information:
• Address: 192.168.1.0
• Source IP Mask: 255.255.255.0
6. Select the Destination IP Address option and enter the following information for the VoIP server:
• Address: 192.168.2.200
• Destination IP Mask: 255.255.255.255
