To delete a Policy Map, select the Delete Policy Map option and click Apply.
CLIENT QOS STATUS
The Client QoS Status page shows the client QoS settings that are applied to each client currently associated with the AP.
To view QoS settings for an associated client, click the Client QoS Status tab.

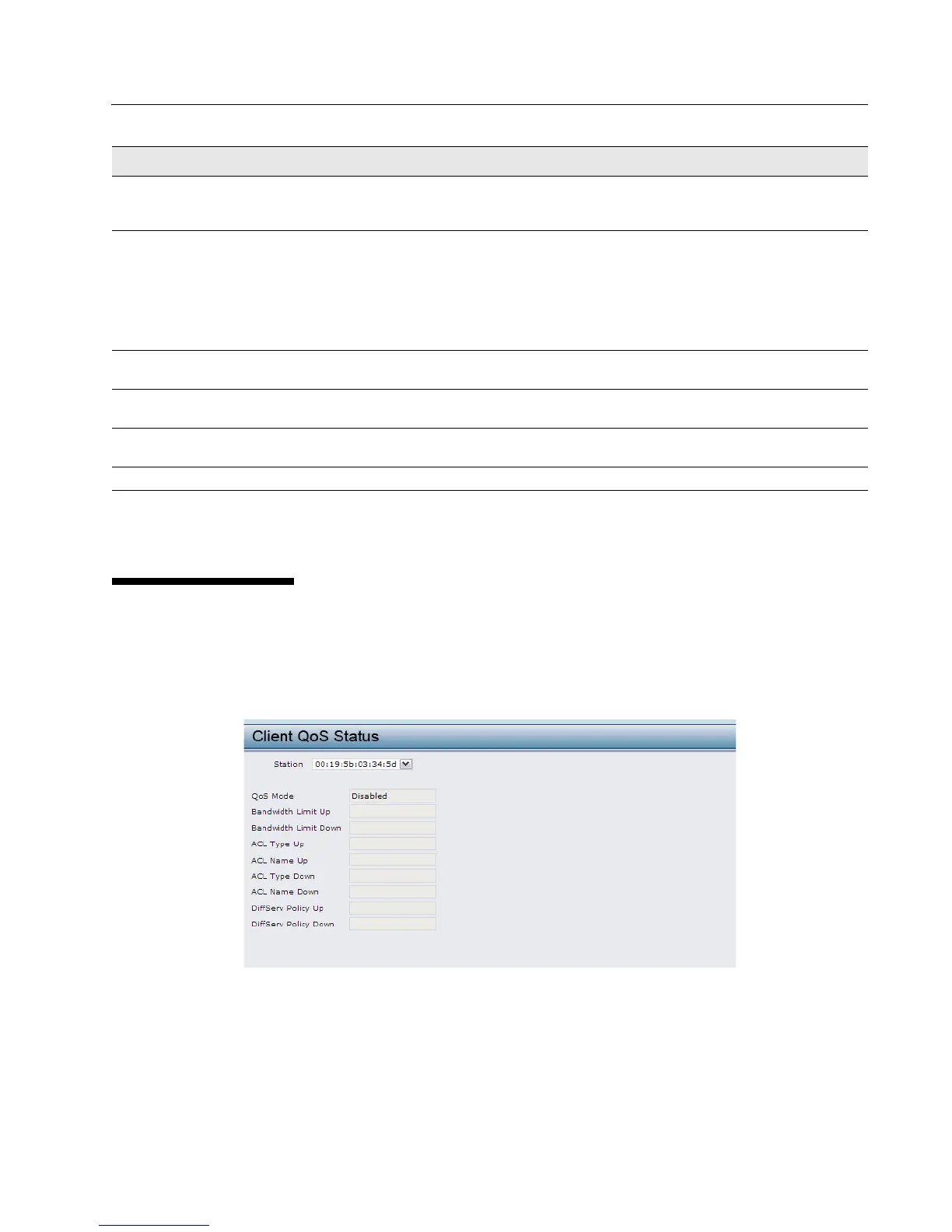

Figure 34: Client QoS Status
Mark Class of Service Select this field to mark all packets for the associated traffic stream with the specified
class of service value in the priority field of the 802.1p header. If the packet does not
already contain this header, one is inserted. The CoS value is an integer from 0–7.
Mark IP DSCP Select this field to mark all packets for the associated traffic stream with the IP DSCP
value you select from the list or specify.
Select from List
Select from a list of DSCP types.
Match to Value
Enter a DSCP Value to match (0–63).
Mark IP Precedence Select this field to mark all packets for the associated traffic stream with the specified IP
Precedence value. The IP Precedence value is an integer from 0–7.
Disassociate Class Map Select this option and click Apply to remove the class selected in the Class Map Name
menu from the policy selected in the Policy Map Name menu.
Member Classes Lists all DiffServ classes currently defined as members of the selected policy. If no class
is associated with the policy, the field is empty.
Delete Policy Map Select this field to delete the policy map showing in the Policy Map Name menu.
Table 42: DiffServ Policy Map
Field Description
