Software User Manual D-Link UAP
12/10/09
34CSFP6XXUAP-SWUM100-D13 Configuring Client QoS Page 129

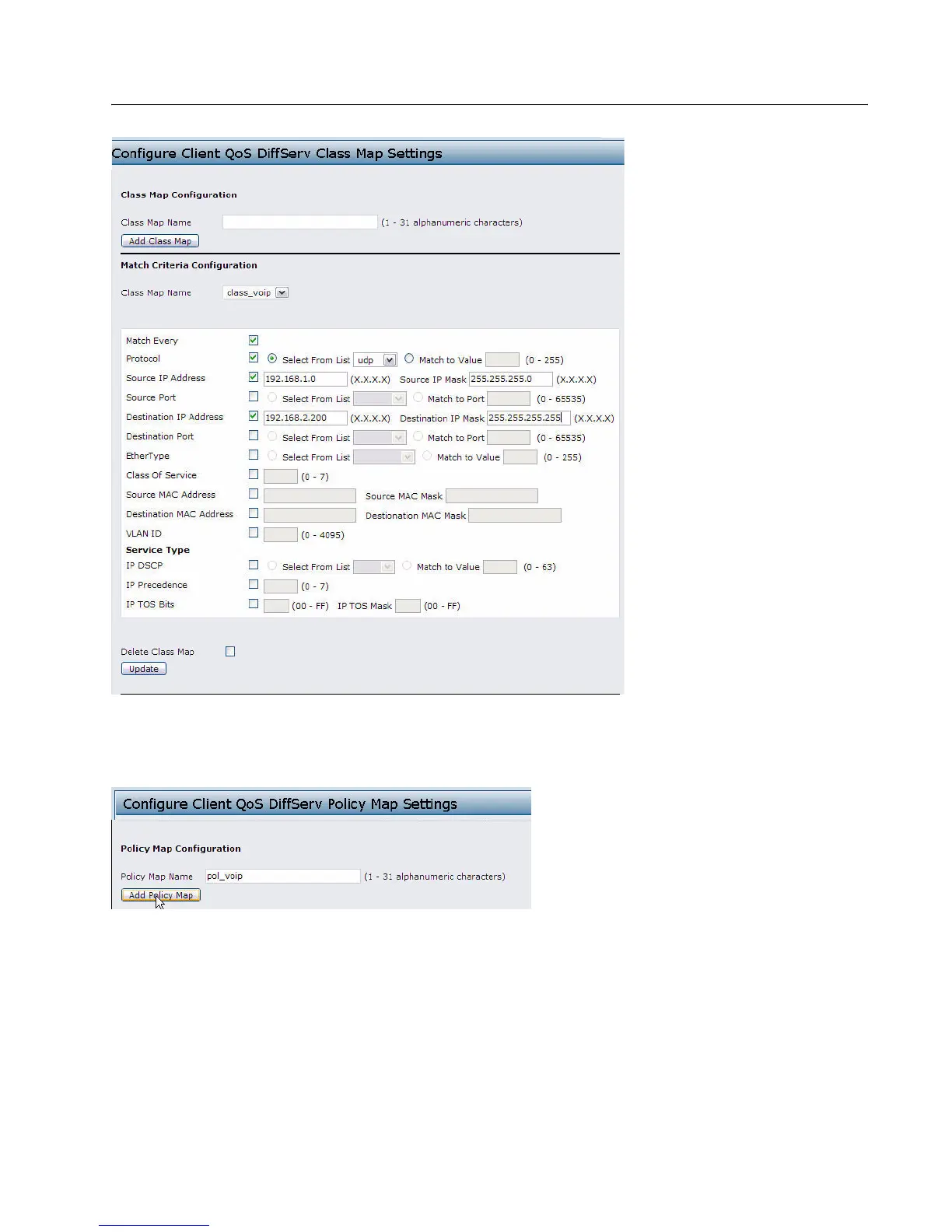

7. Click Update to save the match criteria.
8. Navigate to the Client QoS > Policy Map page.
9. To create a policy, enter pol_voip into the Policy Map Name field, and then click Add Policy Map.
The page refreshes and additional fields appear.
10. For the class_voip class map, select the IP DSCP option, and then select ef from the Select From List menu.
Traffic that meets the criteria defined in the class_voip class will be marked with a DSCP value of EF (expedited
forwarding).
