Page 122 Configuring the Wireless Distribution System 34CSFP6XXUAP-SWUM100-D13

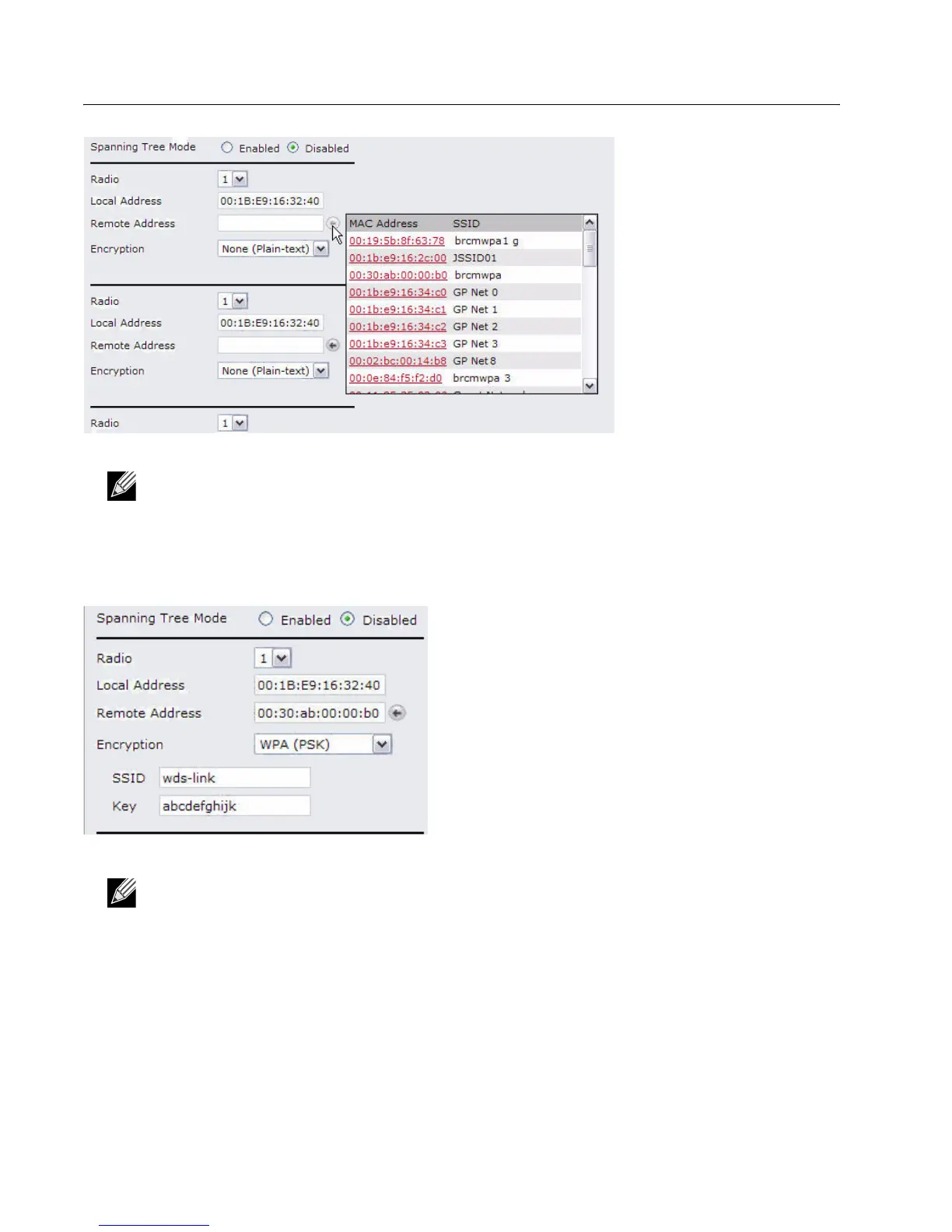

3. Select WPA (PSK) from the Encryption menu.
4. Enter wds-link in the SSID field and abcdefghijk in the Key field.
5. Click Update to apply the WDS settings to the AP.
6. Log onto MyAP2 and repeat steps 2-5 (but be sure to use the MAC address of MyAP1 in the Remote Address field.
Note: The WPA (PSK) option is available only if VAP 0 on Radio 1 uses WPA (PSK) as the security method. If
VAP 0 is not set to WPA Personal or WPA Enterprise, you must choose either None (Plain-text) or WEP for
WDS link encryption.
Note: MyAP1 and MyAP2 must be set to the same IEEE 802.11 Mode and be transmitting on the same
channel.
