ICMP
Select ICMP to instruct the Switch to examine the Internet Control Message
Protocol (ICMP) field in each frame's header. Select Type to further specify that
the access profile will apply an ICMP type value, or specify Code to further specify
that the access profile will apply an ICMP code value.
IPv6 Source Mask
The user may specify an IP address mask for the source IPv6 address by ticking
the corresponding check box and entering the IP address mask.
IPv6 Destination Mask
The user may specify an IP address mask for the destination IPv6 address by
ticking the corresponding check box and entering the IP address mask.
Click the Select button to select an ACL type.
Click the Create button to create a profile.
Click the <<Back button to discard the changes made and return to the previous page.
After clicking the Show Details button, the following page will appear:

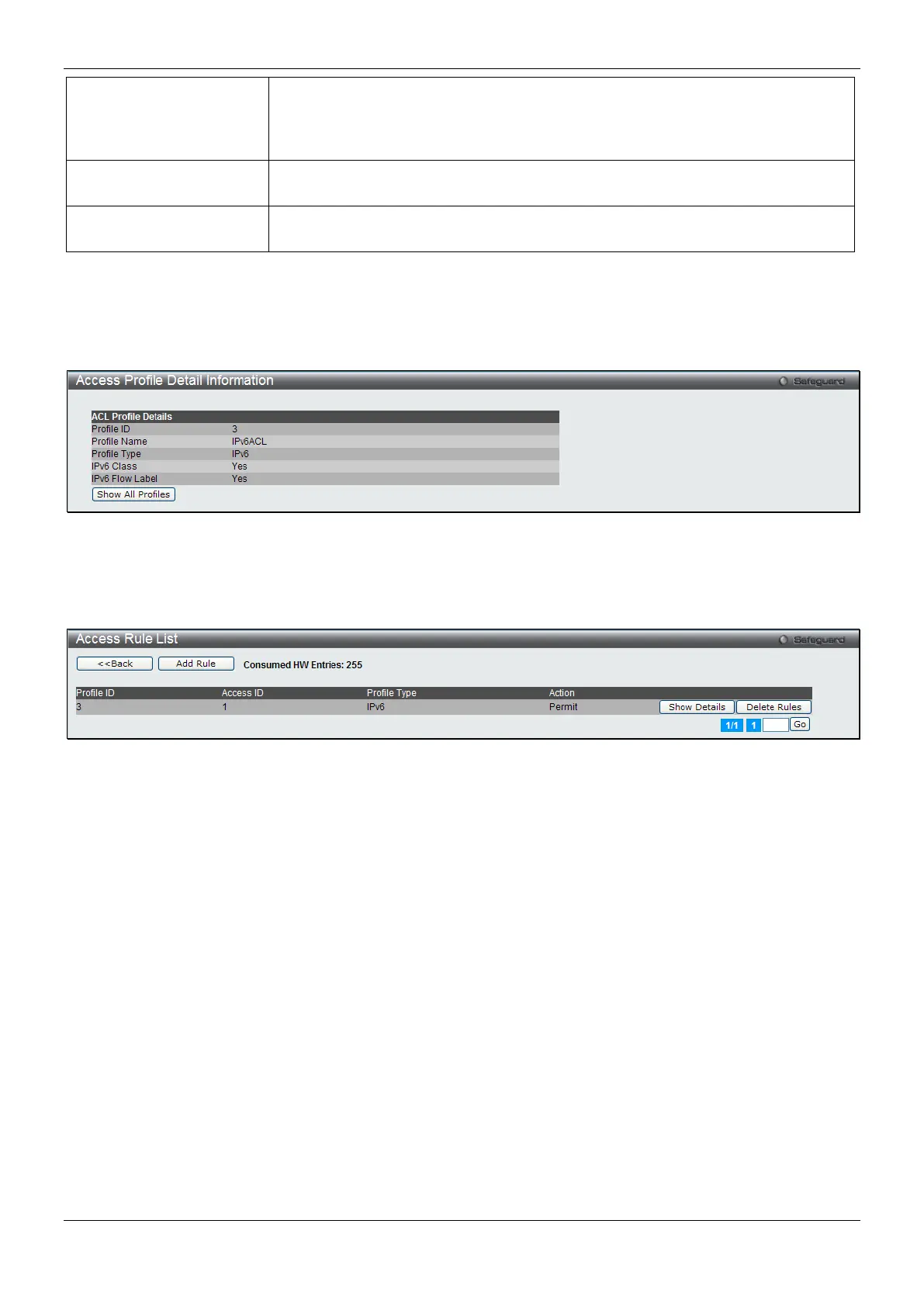

Figure 7-14 Access Profile Detail Information window (IPv6 ACL)
Click the Show All Profiles button to navigate back to the Access Profile List Page.
After clicking the Add/View Rules button, the following page will appear:
Figure 7-15 Access Rule List window (IPv6 ACL)
Click the Add Rule button to create a new ACL rule in this profile.
Click the <<Back button to return to the previous page.
Click the Show Details button to view more information about the specific rule created.
Click the Delete Rules button to remove the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
After clicking the Add Rule button, the following page will appear:
