Click the Add Rule button to create a new CPU ACL rule in this profile.
Click the <<Back button to return to the previous page.
Click the Show Details button to view more information about the specific rule created.
Click the Delete Rules button to remove the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
After clicking the Add Rule button, the following page will appear:

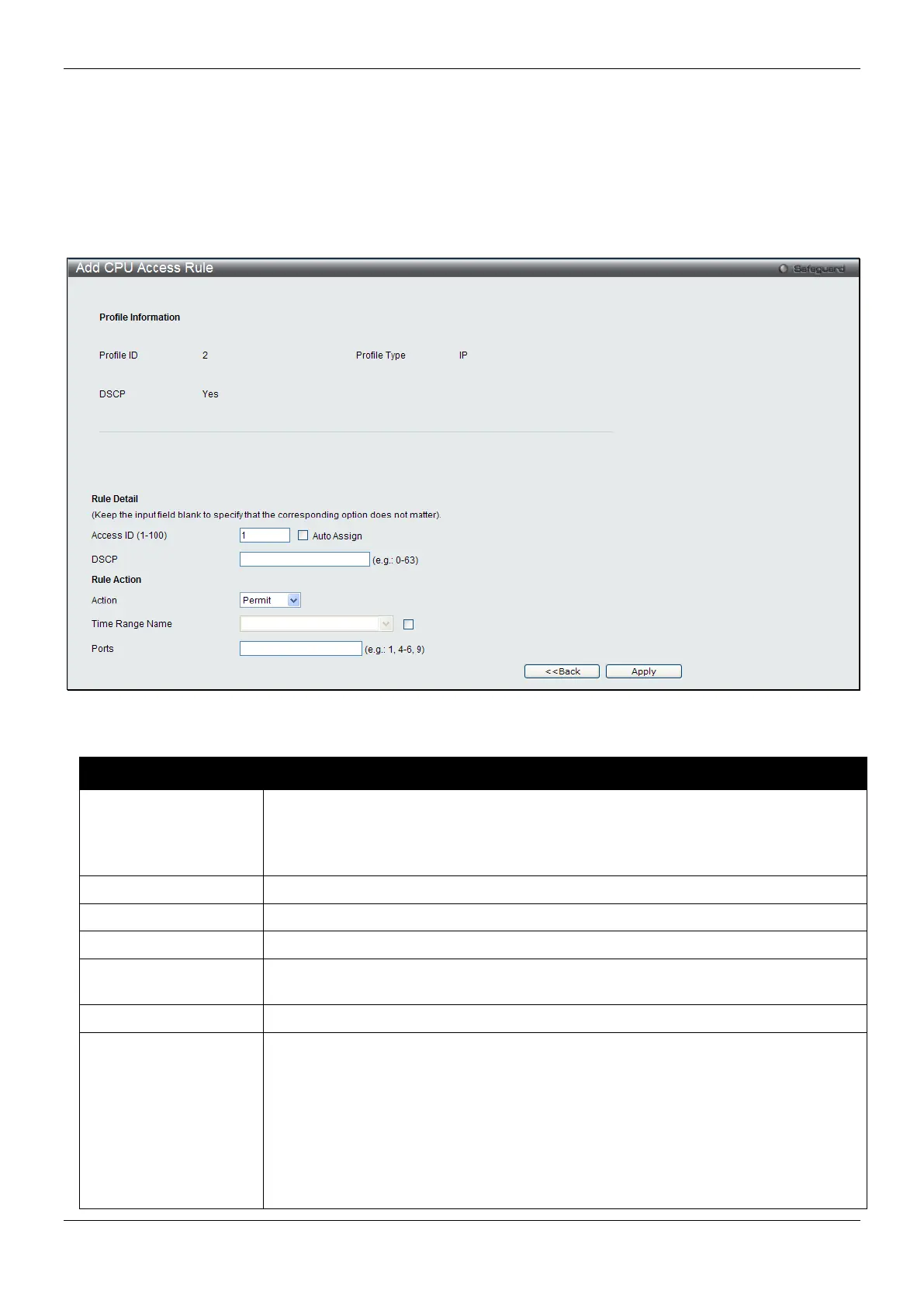

Figure 7-32 Add CPU Access Rule (IPv4 ACL)
The fields that can be configured are described below:
Parameter Description
Access ID (1-100) Type in a unique identifier number for this access. This value can be set from 1 to
100.
Auto Assign – Select this check box will instruct the Switch to automatically assign an
Access ID for the rule being created.
VLAN Name
Enter the VLAN name.
VLAN ID
Enter the VLAN ID.
Source IP Address
Enter the source IP address.
Destination IP
Address
Enter the destination IP address.
DSCP
Enter the DSCP value.
Protocol
Selecting this option instructs the Switch to examine the protocol type value in each
frame's header. Then the user must specify what protocol(s) to include according to
the following guidelines:
Select this option to specify that the rule will be applied to ICMP traffic.
Type – Enter the ICMP packet type value.
Code – Enter the ICMP code value.
