xStack® DES-3200 Series Layer 2 Managed Fast Ethernet Switch
170
Use the drop-down menu to select it and enter the Profile Name for the flow meter.
Here the user can enter the Access ID for the flow meter.
Click the Find button to locate a specific entry based on the information entered.
Click the Add button to add a new entry based on the information entered.
Click the View All button to display all the existing entries.
Click the Delete All button to remove all the entries listed.
Click the Modify button to re-configure the specific entry.
Click the View button to display the information of the specific entry.
Click the Delete button to remove the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
After clicking the Add or Modify button, the following page will appear:

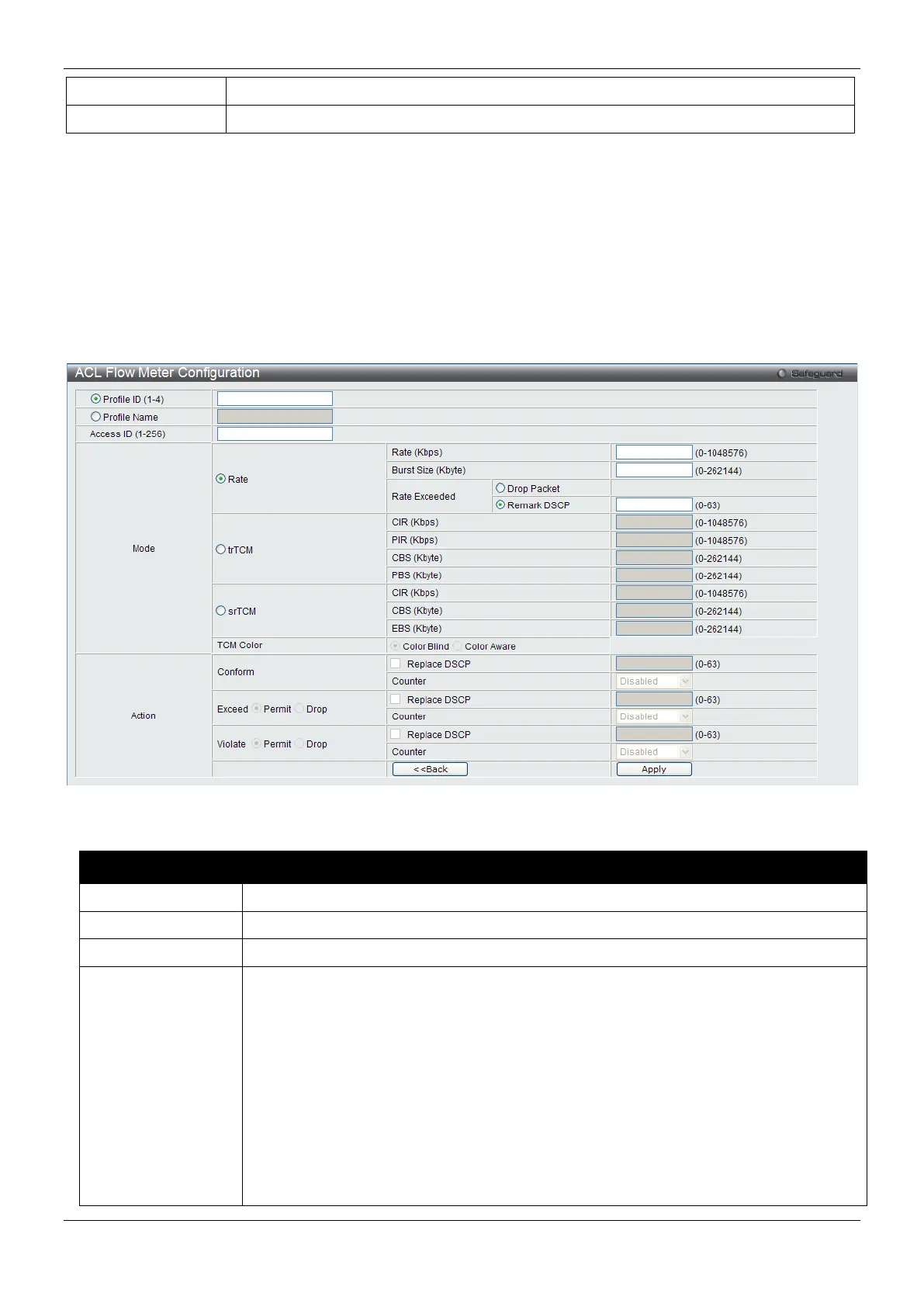

Figure 7-46 ACL Flow meter Configuration window
The fields that can be configured are described below:
Parameter Description
Click the radio button and enter the Profile ID for the flow meter.
Click the radio button and enter the Profile Name for the flow meter.
Enter the Access ID for the flow meter.
Mode Rate – Specify the rate for single rate two color mode.
Rate – Specify the committed bandwidth in Kbps for the flow.
Burst Size – Specify the burst size for the single rate two color mode. The unit is in
kilobyte.
Rate Exceeded – Specify the action for packets that exceed the committed rate in single
rate two color mode. The action can be specified as one of the following:
Drop Packet – Drop the packet immediately.
Remark DSCP – Mark the packet with a specified DSCP. The packet is set to drop for
packets with a high precedence.
trTCM – Specify the “two-rate three-color mode.”
CIR – Specify the Committed information Rate. The unit is Kbps. CIR should always be
