equal or less than PIR.
PIR – Specify the Peak information Rate. The unit is Kbps. PIR should always be equal
to or greater than CIR.
CBS – Specify the Committed Burst Size. The unit is in kilobyte.
PBS – Specify the Peak Burst Size. The unit is in kilobyte.
srTCM – Specify the “single-rate three-color mode”.
CIR – Specify the Committed Information Rate. The unit is in kilobyte.
CBS – Specify the Committed Burst Size. The unit is in kilobyte.
EBS – Specify the Excess Burst Size. The unit is in kilobyte.
Action Conform – This field denotes the green packet flow. Green packet flows may have their
DSCP field rewritten to a value stated in this field. Users may also choose to count
green packets by using counter parameter.
Replace DSCP – Packets that are in the green flow may have their DSCP field rewritten
using this parameter and entering the DSCP value to replace.
Counter – Use this parameter to enable or disable the packet counter for the specified
ACL entry in the green flow.
Exceed – This field denotes the yellow packet flow. Yellow packet flows may have
excess packets permitted through or dropped. Users may replace the DSCP field of
these packets by checking its radio button and entering a new DSCP value in the
allotted field.
Counter – Use this parameter to enable or disable the packet counter for the specified
ACL entry in the yellow flow.
Violate – This field denotes the red packet flow. Red packet flows may have excess
packets permitted through or dropped. Users may replace the DSCP field of these
packets by checking its radio button and entering a new DSCP value in the allotted field.
Counter – Use this parameter to enable or disable the packet counter for the specified
ACL entry in the red flow.
Click the <<Back button to discard the changes made and return to the previous page.
Click the Apply button to accept the changes made.
After clicking the View button, the following page will appear:

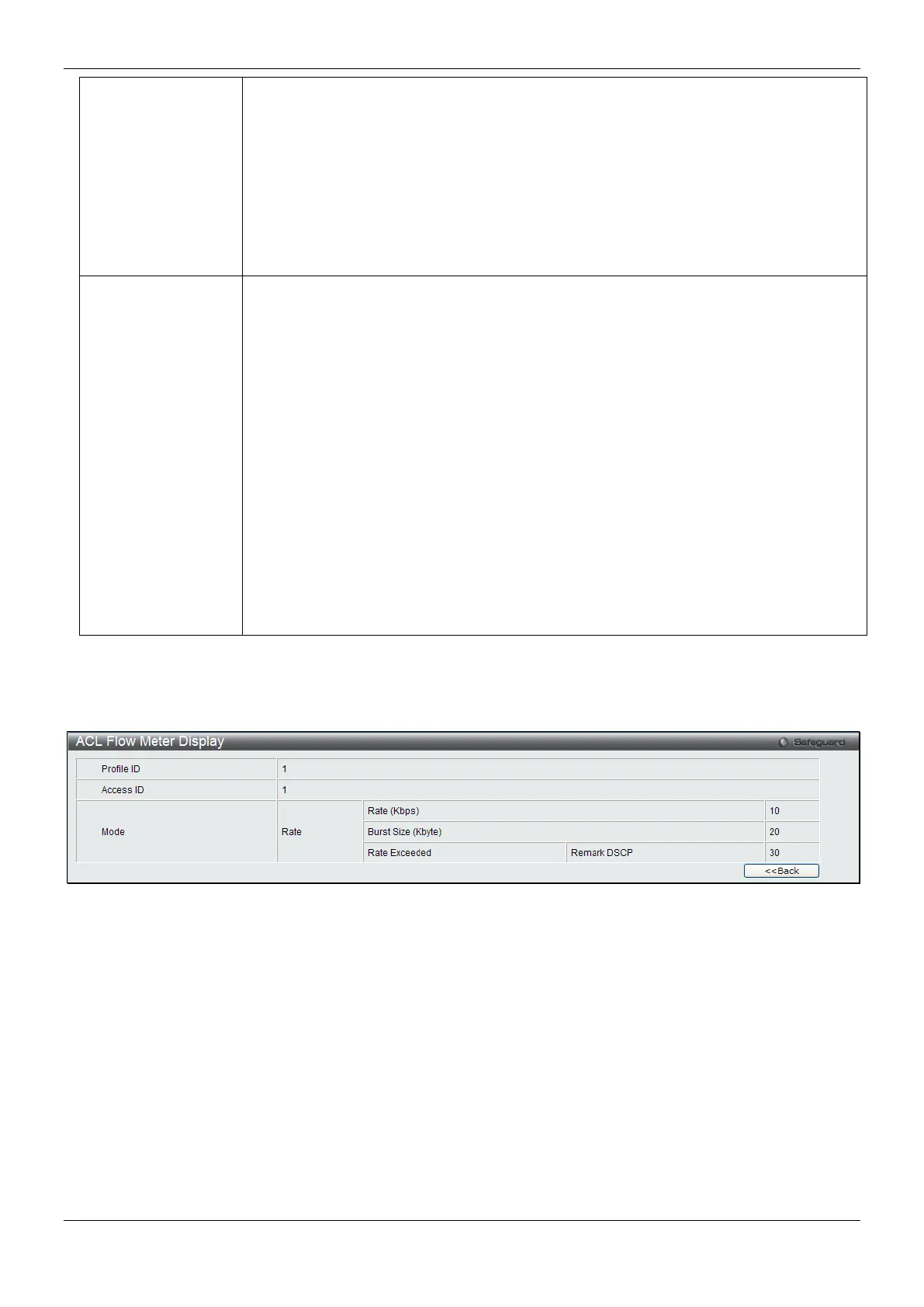

Figure 7-47 ACL Flow meter Display window
Click the <<Back button to return to the previous page.

D-Link xStack DES-3200 Series Specifications

General

Managed	Yes
Layer	Layer 2
MAC Address Table Size	8K
Quality of Service (QoS)	802.1p
Security Features	ACL, 802.1X, Port Security
Jumbo Frame Support	Up to 9KB
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
Forwarding Rate	13.1 Mpps (48-port)
