xStack® DES-3200 Series Layer 2 Managed Fast Ethernet Switch
241
Click the Apply button to accept the changes made for each individual section.
Click the Edit button to re-configure the specific entry.
Click the Delete button to remove the specific entry.
Click the Add MA button to add a maintenance association (MA).
NOTE: The MD Name value should be less than 22 characters.
After clicking the Add MA button, the following page will appear:

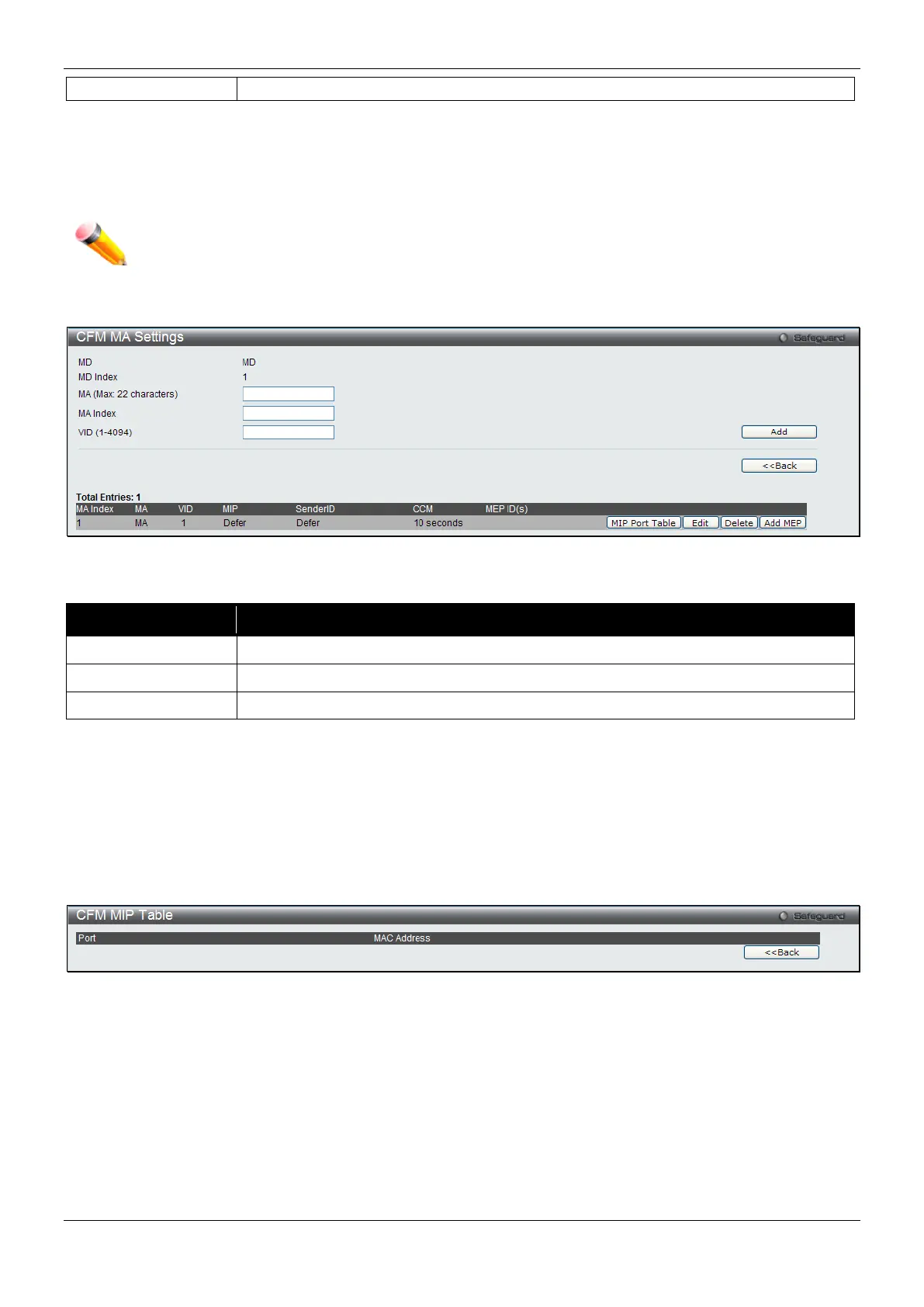

Figure 10-2 CFM MA Settings Window
The fields that can be configured are described below:
Parameter Description
Enter the maintenance association name.
Enter the maintenance association index.
VLAN Identifier. Different MA must be associated with different VLANs.
Click the Add button to add a new entry based on the information entered.
Click the <<Back button to discard the changes made and return to the previous page.
Click the MIP Port Table button to view the CFM MIP Table.
Click the Edit button to re-configure the specific entry.
Click the Delete button to remove the specific entry.
Click the Add MEP button to add a Maintenance End Point entry.
After clicking the MIP Port Table button, the following page will appear:
Figure 10-3 CFM MIP Port Table Window
Click the <<Back button to return to the previous page.
After click in the Edit button the following window appears:
