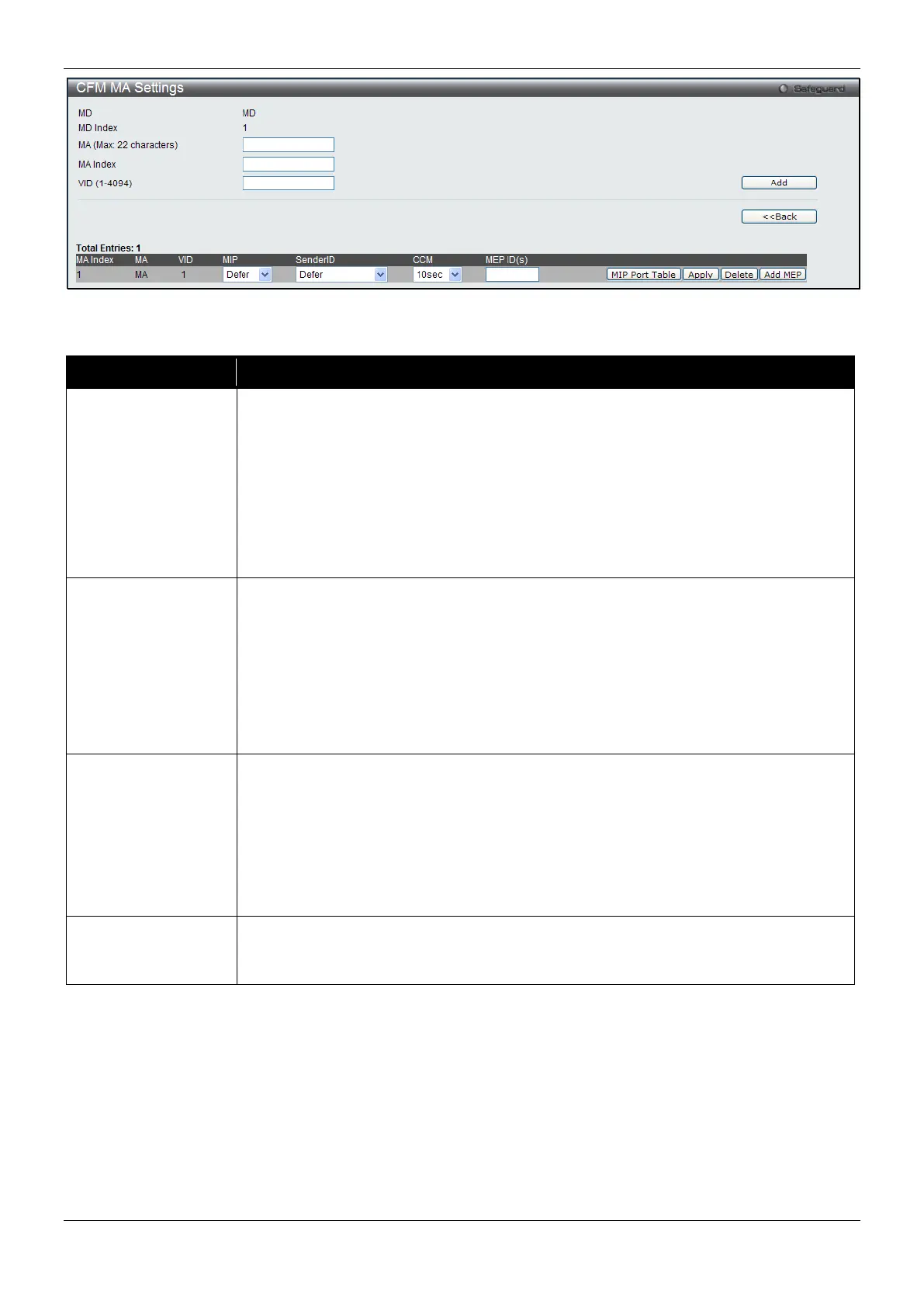

Figure 10-4 CFM MA Settings - Edit Window
The fields that can be configured are described below:
Parameter Description
MIP
This is the control creation of MIPs.
None - Don’t create MIPs.
Auto - MIPs can always be created on any ports in this MA, if that port is not configured
with a MEP of that MA.
Explicit - MIP can be created on any ports in this MA, only if the next existent lower
level has a MEP configured on that port, and that port is not configured with a MEP of
this MA.
Defer - Inherit the setting configured for the maintenance domain that this MA is
associated with. This is the default value.
SenderID
This is the control transmission of the sender ID TLV.
None - Don’t transmit sender ID TLV. This is the default value.
Chassis - Transmit sender ID TLV with chassis ID information.
Manage - Transmit sender ID TLV with manage address information.
Chassis Manage - Transmit sender ID TLV with chassis ID information and manage
address information.
Defer - Inherit the setting configured for the maintenance domain that this MA is
associated with. This is the default value.
CCM
This is the CCM interval.
10ms - 10 milliseconds. Not recommended.
100ms - 100 milliseconds. Not recommended.
1sec - One second.
10sec - Ten seconds. This is the default value.
1min - One minute.
MEP ID(s)
This is to specify the MEP IDs contained in the maintenance association. The range of
the MEP ID is 1-8191.
By default, there is no MEP ID in a newly created maintenance association.
Click the Apply button to accept the changes made.
After clicking the Add MEP button, the following page will appear:
