xStack® DES-3200 Series Layer 2 Managed Fast Ethernet Switch
259

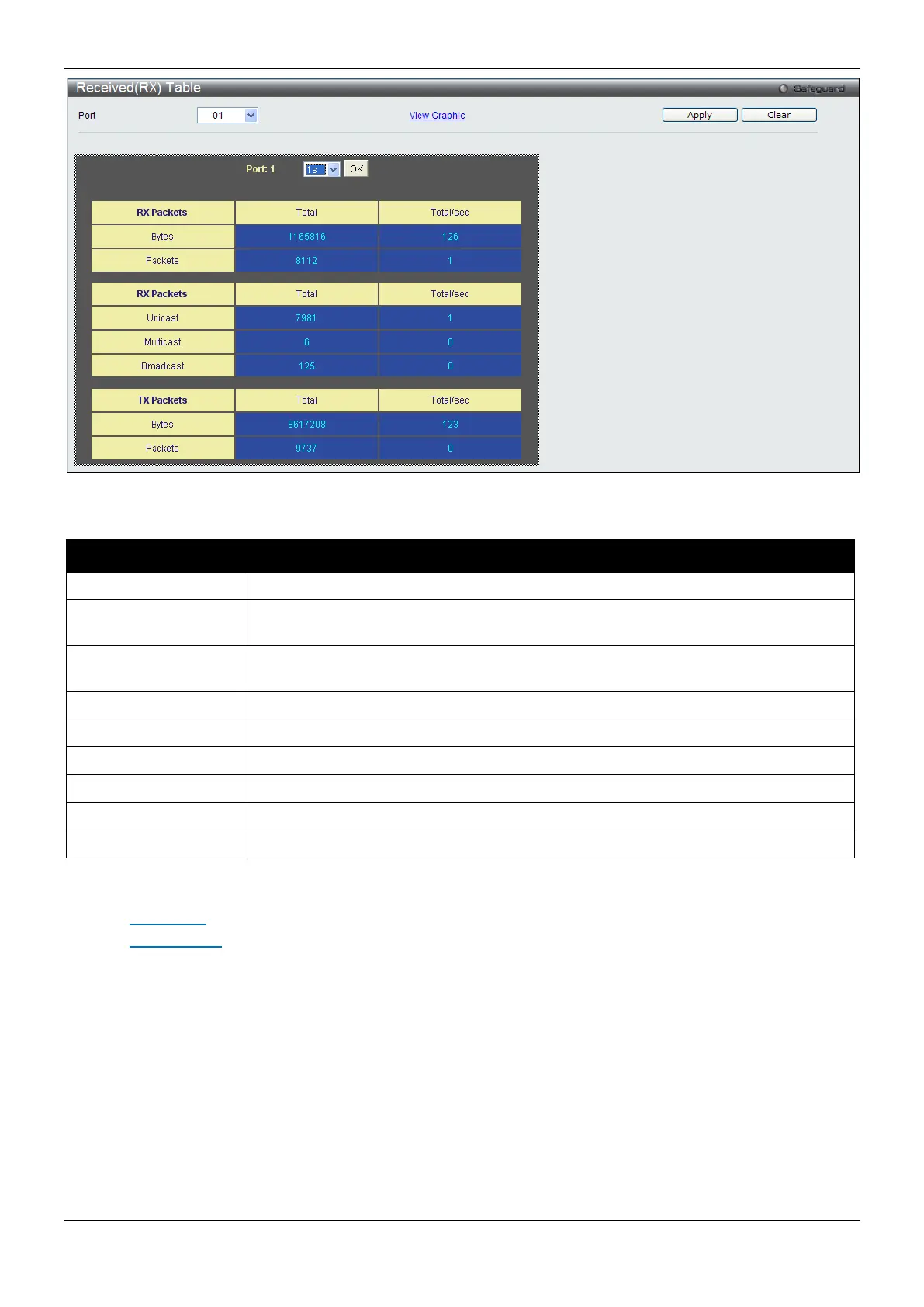

Figure 11-5 RX Packets Analysis Table window
The fields that can be configured or displayed are described below:
Parameter Description
Use the drop-down menu to choose the port that will display statistics.
Time Interval Select the desired setting between 1s and 60s, where "s" stands for seconds. The
default value is one second.
Record Number Select number of times the Switch will be polled between 20 and 200. The default
Counts the number of bytes received on the port.
Counts the number of packets received on the port.
Counts the total number of good packets that were received by a unicast address.
Counts the total number of good packets that were received by a multicast address.
Counts the total number of good packets that were received by a broadcast address.
Check whether to display Bytes and Packets.
Click the Apply button to accept the changes made.
Click the Clear button to clear all statistics counters on this window.
Click the View Table
link to display the information in a table rather than a line graph.
Click the View Graphic
link to display the information in a line graph rather than a table.
UMB_Cast (RX)
To select a port to view these statistics for, select the port by using the Port drop-down menu. The user may also
use the real-time graphic of the Switch at the top of the web page by simply clicking on a port.
To view this window, click Monitoring > Statistics > Port Statistics > Packets > UMB_Cast (RX) as shown
below:
