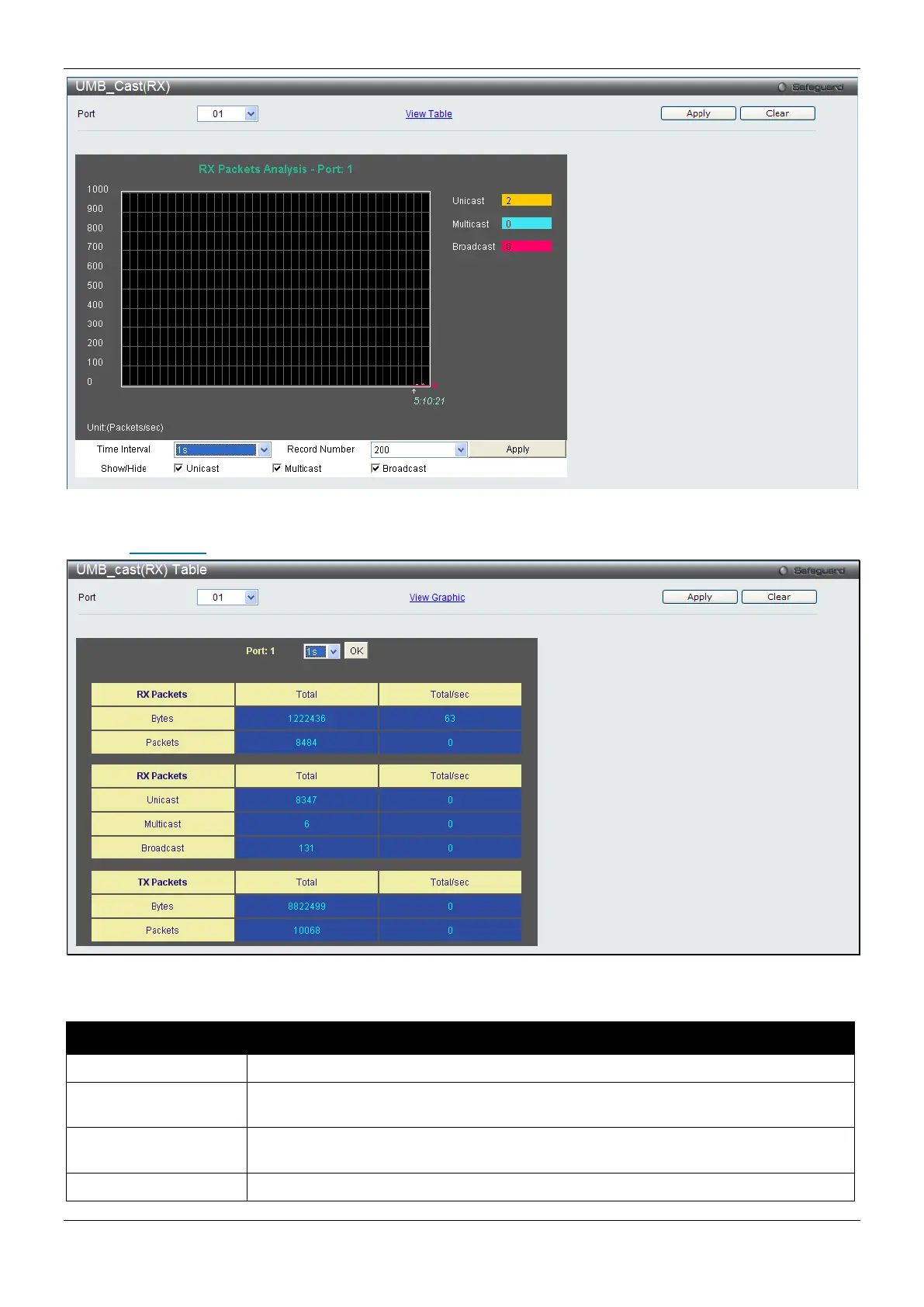

Figure 11-6 UMB_cast (RX) window (for Unicast, Multicast, and Broadcast Packets)
Click the View Table
link to display the information in a table rather than a line graph.
Figure 11-7 RX Packets Analysis window (table for Unicast, Multicast, and Broadcast Packets)
The fields that can be configured or displayed are described below:
Parameter Description
Use the drop-down menu to choose the port that will display statistics.
Time Interval Select the desired setting between 1s and 60s, where "s" stands for seconds. The
default value is one second.
Record Number Select number of times the Switch will be polled between 20 and 200. The default
Counts the total number of good packets that were received by a unicast address.
