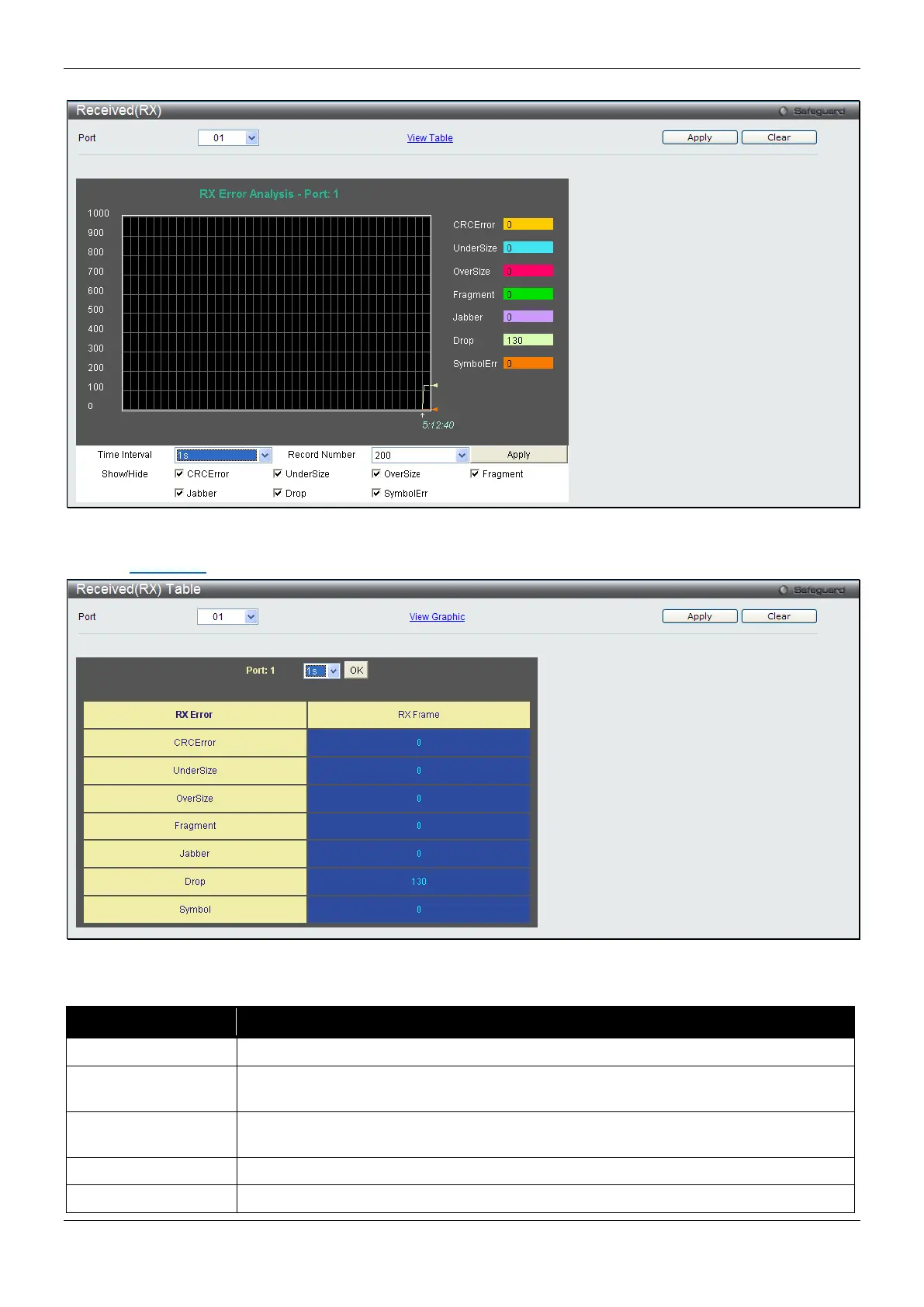

Figure 11-10 Received (RX) window (for errors)
Click the View Table
link to display the information in a table rather than a line graph.
Figure 11-11 RX Error Analysis window (table)
The fields that can be configured or displayed are described below:
Parameter Description
Use the drop-down menu to choose the port that will display statistics.
Time Interval Select the desired setting between 1s and 60s, where "s" stands for seconds. The
default value is one second.
Record Number Select number of times the Switch will be polled between 20 and 200. The default value
Counts otherwise valid packets that did not end on a byte (octet) boundary.
The number of packets detected that are less than the minimum permitted packets size
