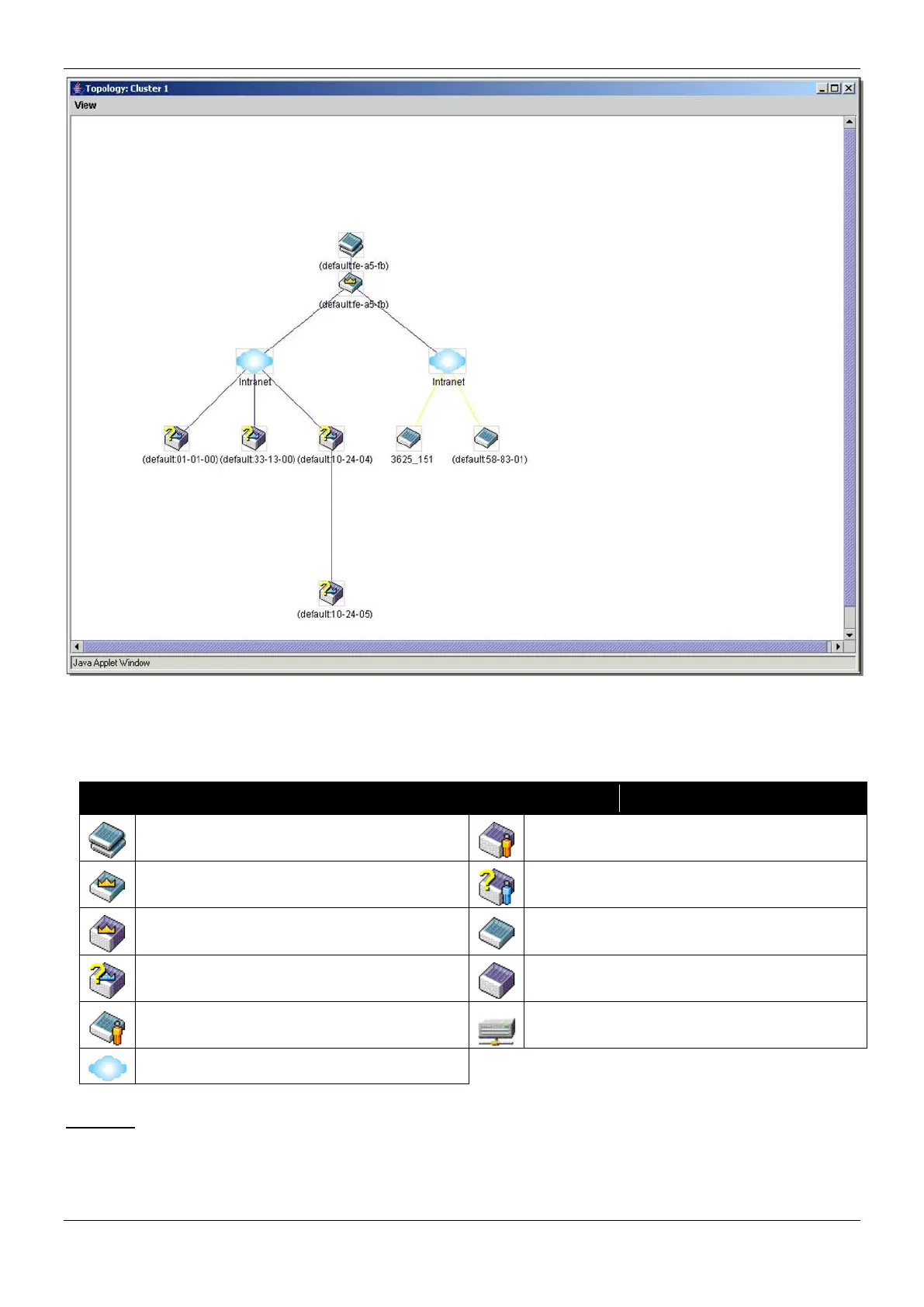

Figure 3-16 Topology view
This window will display how the devices within the Single IP Management Group connect to other groups and
devices. Possible icons on this window are as follows:
Icon Description Icon Description
Group Layer 3 member switch
Layer 2 commander switch Member switch of other group
Layer 3 commander switch Layer 2 candidate switch
Commander switch of other group Layer 3 candidate switch
Layer 2 member switch. Unknown device
Non-SIM devices
Tool Tips
In the Topology view window, the mouse plays an important role in configuration and in viewing device information.
Setting the mouse cursor over a specific device in the topology window (tool tip) will display the same information
about a specific device as the Tree view does. See the window below for an example.
