12.2.2.3 Dimensions for FR8
H2
W1
H1
D1
W2
Ø
E1
Ø
e30bg001.10

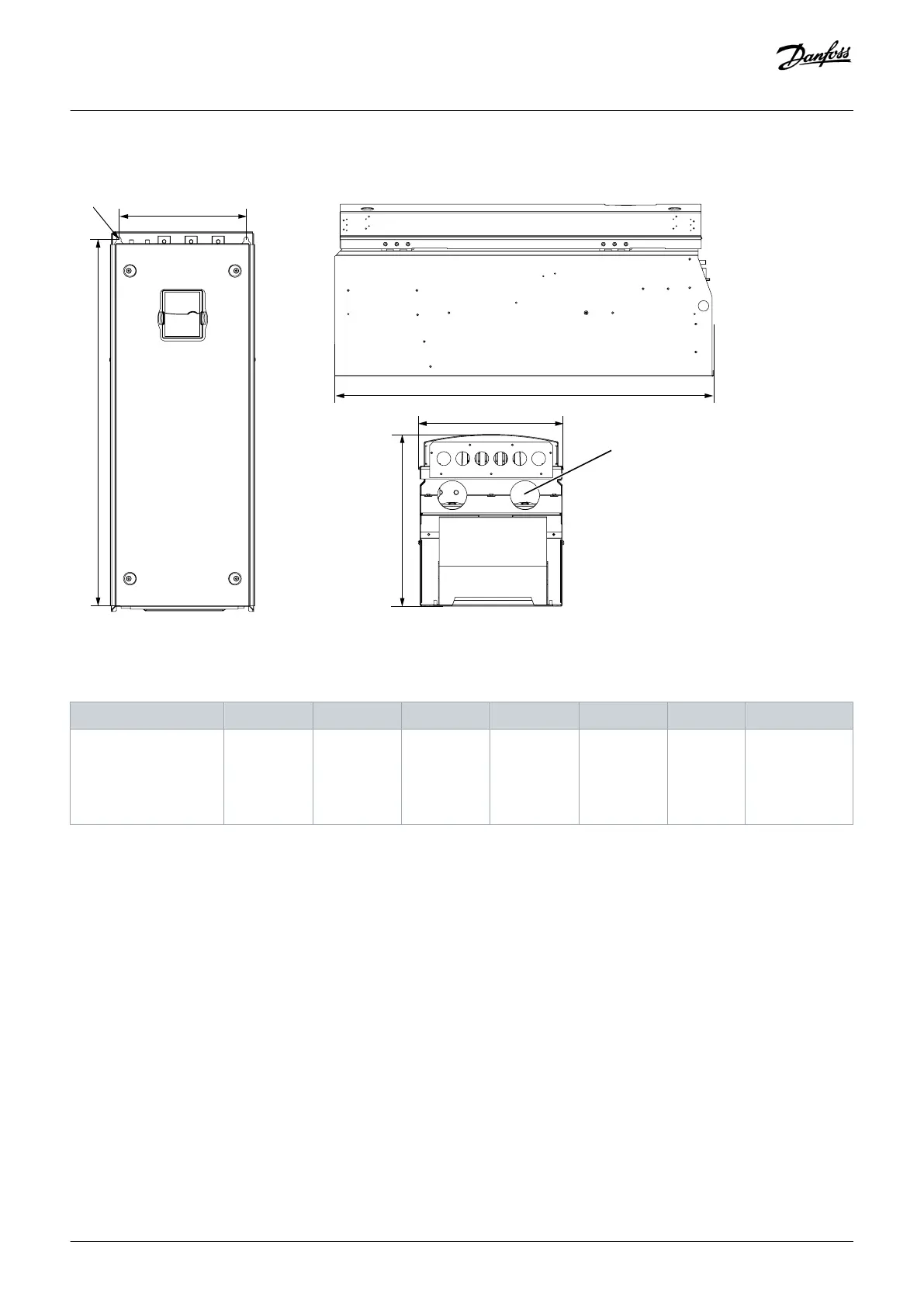

Illustration 46: Dimensions of the VACON
®
NXS/NXP AC Drive, FR8
Table 22: Dimensions in mm (in inch) of the VACON
®
NXS/NXP AC Drive, FR8
Drive type W1 W2 H1 H2 D1 Ø E1Ø
0140 2-0205 2
0140 5-0205 5
0062 6-0100 6
291
(11.47)
255
(10.04)
758
(29.88)
732
(28.81)
344
(13.54)
9
(0.35)
2 x 59
(2 x 2.32)
Specifications
Operating guide | VACON® NXS/NXP Air-cooled
DPD00910G
128 | Danfoss A/S © 2018.06
