Danfoss Vacon NXP Series User Manual

W2
H2
H1
W1
W3
H3
Ø
H4
e30bg004.10

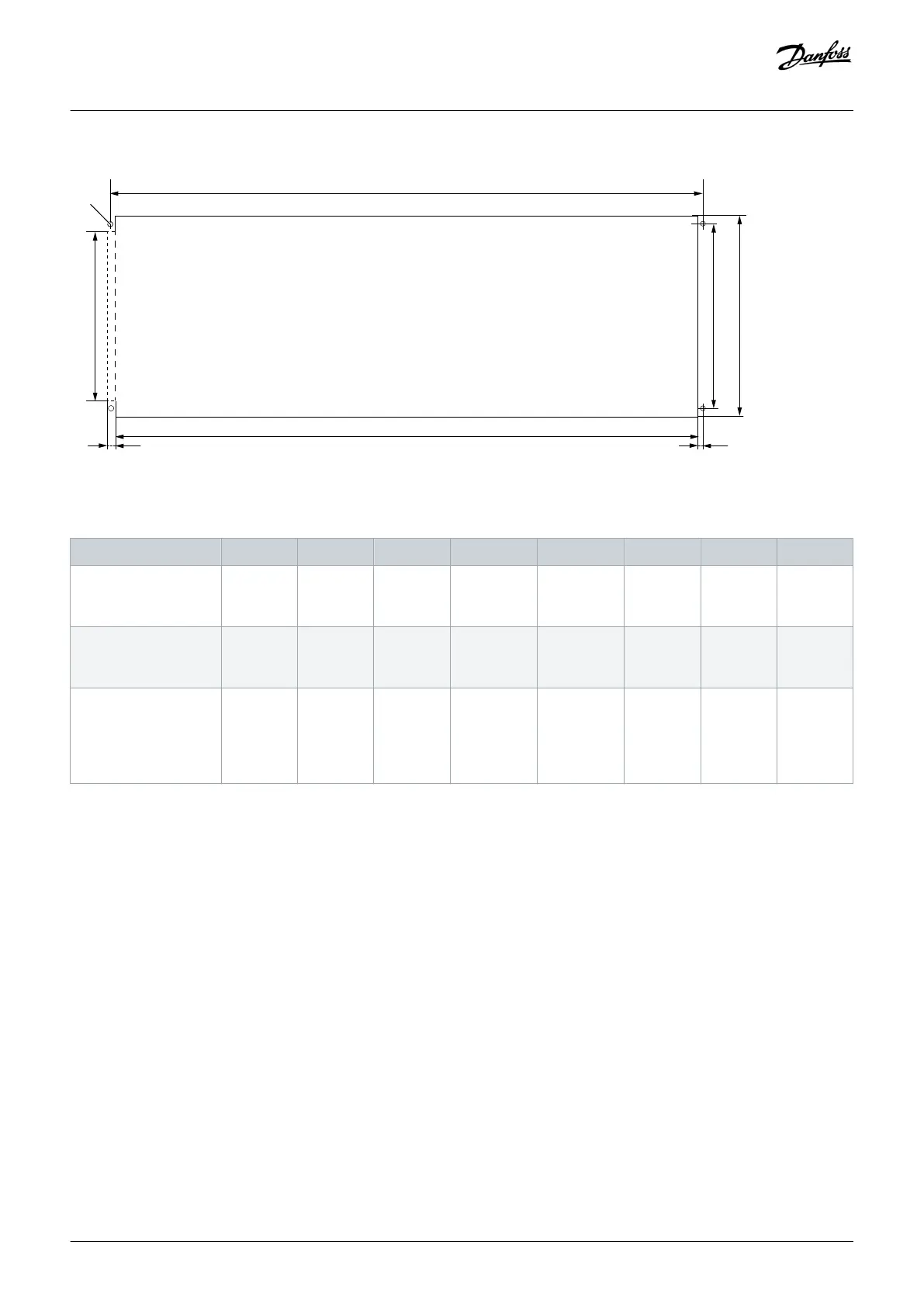

Illustration 49: The Dimensions of the Opening and Drive Outline with Flange, FR4 to FR6
Table 26: The Dimensions in mm (in inch) of the Opening and Drive Outline with Flange, FR4 to FR6
Drive type W1 W2 W3 H1 H2 H3 H4 Ø
0004 2-0012 2
0003 5-0012 5
123
(4.84)
113
(4.45)
-
(-)
315
(12.40)
325
(12.8)
-
(-)
5
(0.20)
6.5
(0.26)
0017 2-0031 2
0016 5-0031 5
135
(5.31)
120
(4.72)
-
(-)
410
(16.14)
420
(16.54)
-
(-)
5
(0.20)
6.5
(0.26)
0048 2-0061 2
0038 5-0061 5
0004 6-0034 6
185
(7.28)
170
(6.69)
157
(6.18)
539
(21.22)
549
(21.61)
7
(0.27)
5
(0.20)
6.5
(0.26)
Specifications
Operating guide | VACON® NXS/NXP Air-cooled
DPD00910G | 131
Danfoss A/S © 2018.06
